Ford Mustang A/C Receiver Drier Guide for 2010-2015 Models
If your Mustang's A/C is blowing warm, the receiver drier could be the culprit.
- The A/C receiver drier must be replaced any time the A/C system is opened for service to protect new components.
- Replacement requires special equipment to recover and recharge refrigerant, so this job should be left to a professional shop.
- Symptoms of a bad drier include poor cooling, rattling noises, and musty smells from the vents.
- Denso is a top-tier aftermarket brand that offers OEM quality, while Four Seasons and GPD are reliable, cost-effective alternatives.
Is Your Mustang's A/C Failing? Check the Receiver Drier
When your 2010-2015 Mustang's air conditioning stops blowing cold, many drivers immediately suspect the A/C compressor or low refrigerant. However, a faulty A/C receiver drier can cause the same symptoms. This component is essential for the health and performance of your entire A/C system. Ignoring a bad drier can lead to more expensive repairs down the road.
Top 4 Symptoms of a Bad A/C Receiver Drier
- Weak or No Cooling: This is the most common sign. A clogged drier restricts the flow of refrigerant, so your vents blow warm or only slightly cool air.
- Rattling Noises: If you hear a rattling sound from the engine bay when the A/C is on, it could be the desiccant material breaking apart inside the drier canister.
- Moldy Smell: A musty or moldy odor from the vents suggests the drier is saturated and can no longer remove moisture from the system, allowing mold and mildew to grow.
- Visible Refrigerant Leaks: While leaks can happen anywhere, you might see oily residue around the drier's fittings or seals, indicating a leak.
Pro Tip: Replace it Whenever the System is Open
The receiver drier should be replaced every time the A/C system is opened for a repair, such as replacing the compressor or condenser. The desiccant inside absorbs moisture from the air very quickly, so a new drier is required to protect your new parts and validate their warranty.
Choosing the Right Aftermarket A/C Drier for Your Mustang
For the 2010-2015 Mustang, the receiver drier is often integrated with or attached to the A/C condenser. 🎬 See how to replace the desiccant element in the condenser. You have several quality aftermarket options that offer a great balance of price and performance compared to the OEM Ford part.
- Top Tier (OEM Quality): Denso
Denso is an original equipment manufacturer for many car brands and is widely considered the gold standard in aftermarket A/C parts. Choosing a Denso drier means you are getting a part built to factory specifications, known for its durability and perfect fit. For long-term reliability, Denso is a top choice. - Mid-Grade (Reliable Aftermarket): Four Seasons
Four Seasons is one of the most recognized names in aftermarket A/C components. They offer good quality parts that provide reliable performance and are a trusted choice for daily drivers. They represent a solid balance between cost and quality. - Value Option: Global Parts Distributors (GPD)
GPD provides a wide range of A/C parts that are known for their good fit and competitive pricing. If you are looking for a budget-friendly solution that still meets performance standards, GPD is a dependable option.
Cost to Replace a 2010-2015 Mustang A/C Receiver Drier
The total cost depends on the part brand you choose and local labor rates. The biggest factor in labor is the need to evacuate and recharge the A/C system.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $64 - $121 |
| New Aftermarket Part | $19 - $51 |
| Shop Labor & A/C Service | $165 - $275 |
| Total Estimated Cost | $184 - $326 |
DIY Warning: Refrigerant Handling Required
Replacing the A/C receiver drier is not a simple DIY task. Federal law requires that the R134a refrigerant in the system be recovered by a certified technician using special equipment before any parts are removed. After the new drier is installed, the system must be put under a vacuum to remove air and moisture before being recharged with the correct amount of refrigerant and oil. 🎬 Watch a professional walkthrough of the receiver drier replacement process. Always have this service performed by a qualified A/C shop.
Frequently Asked Questions
Is an A/C accumulator the same as a receiver drier?
They perform similar functions but are used in different types of A/C systems. Your 2010-2015 Mustang uses an expansion valve system, which requires a receiver drier. Systems with an orifice tube use an accumulator. It's important to order the correct part for your vehicle.
Do I have to add oil when replacing the drier?
Yes. When the old drier is removed, some PAG oil will come out with it. You should measure the amount of oil from the old part and add the same amount of new, correct-spec PAG oil to the new drier before installation.
Are there any recalls for the A/C drier on my Mustang?
No, there are no specific recalls or common Technical Service Bulletins (TSBs) from Ford for A/C receiver drier failure on the 2010-2015 Mustang models.
Can a bad drier damage my A/C compressor?
Yes. If the desiccant bag inside the drier breaks, the particles can travel through the system and clog the expansion valve or damage the compressor. Also, a saturated drier that fails to remove moisture can lead to internal corrosion that destroys the compressor over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: AR3Z-19C836-A BR3Z-19C836-A

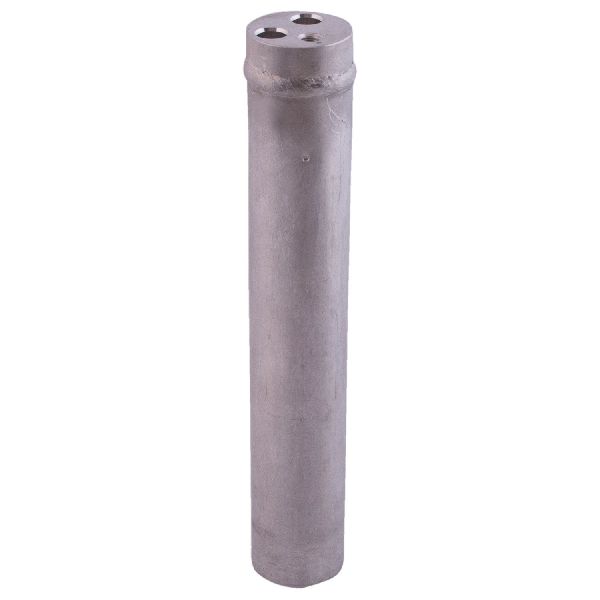

The receiver drier for the 2010-2015 Mustang is part of an expansion valve A/C system and is located on the high-pressure side, typically attached to the condenser. It contains a desiccant material to absorb moisture and filters particles from the refrigerant.
