Honda Insight Engine Oil Pressure Switch Guide for 2010-2015 Models
That flickering oil light on your Insight's dash might be an easy fix—here's how to know for sure.
- Always check the engine oil level first; some Insights have known oil consumption issues that can trigger a real low-pressure warning.
- A flickering oil light at idle that disappears when you accelerate is the classic symptom of a bad switch, not low oil pressure.
- Replacement is a simple, low-cost DIY job that most owners can do in under 30 minutes with basic tools.
- Quality aftermarket brands like Beck Arnley or Standard Ignition offer a reliable, cost-effective alternative to the expensive OEM part.
Is Your Oil Light On? Don't Panic Yet.
Seeing the red oil can symbol light up on your dashboard is stressful. It's your car's way of screaming that the engine is at risk of damage from low oil pressure. However, on the 2010-2015 Honda Insight, the problem is very often the sensor itself rather than a major engine issue. These switches are a common failure point. They can start sending incorrect signals, causing the light to come on when your oil pressure is perfectly fine.
First, Check Your Oil Level!
Before you assume the switch is bad, you must check your engine oil level. Some 2012-2013 Insights were subject to a warranty extension (Honda TSB 16-101) for excessive oil consumption. If your oil level is low, the warning light is doing its job. Top off the oil immediately and investigate the consumption issue. Never ignore the light without first confirming the oil level is correct.
Symptoms of a Failing Oil Pressure Switch
If your oil level is full but the light is on, you likely have a faulty switch. Here are the classic signs:
- Flickering Oil Light at Idle: The light flickers on and off when the car is stopped in gear, but goes away as soon as you press the gas. This is the most common symptom of a failing sensor.
- Warning Light Stays On: The oil pressure light comes on and stays on, even though the engine sounds normal and the oil level is full.
- Oil Leaking from the Sensor: The switch itself can develop a leak. You may see oil on the sensor body, the electrical connector, or dripping onto the engine block below it.
Choosing the Right Aftermarket Switch: Brand Quality Tiers
The OEM Honda oil pressure switch can be expensive and has even been reported by owners to be on backorder at times. Aftermarket parts offer a reliable and cost-effective solution. They are separated into different quality tiers.
Premium Aftermarket (Highest Quality & Reliability)

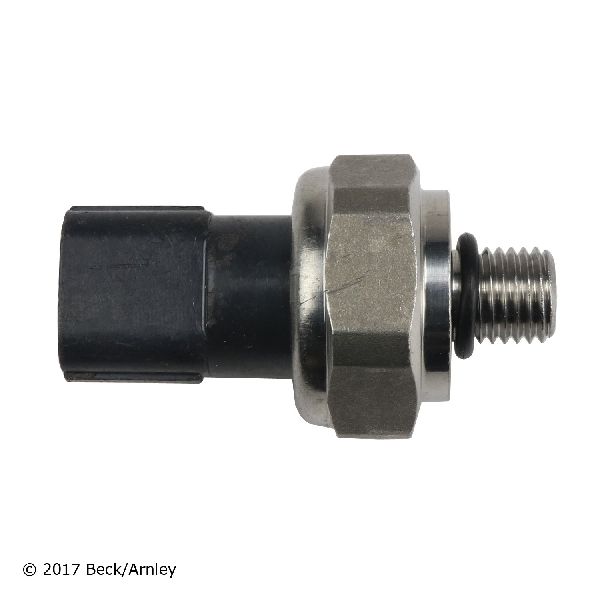

- Beck Arnley: Often sources parts from the same manufacturers that supply Honda. A top choice for fit and long-term reliability.
- Standard Ignition (SMP): A long-standing, reputable brand. Their standard line is well-regarded, though some users suggest avoiding their budget "T-Series" parts for critical sensors.
Standard Aftermarket (Good Quality & Value)

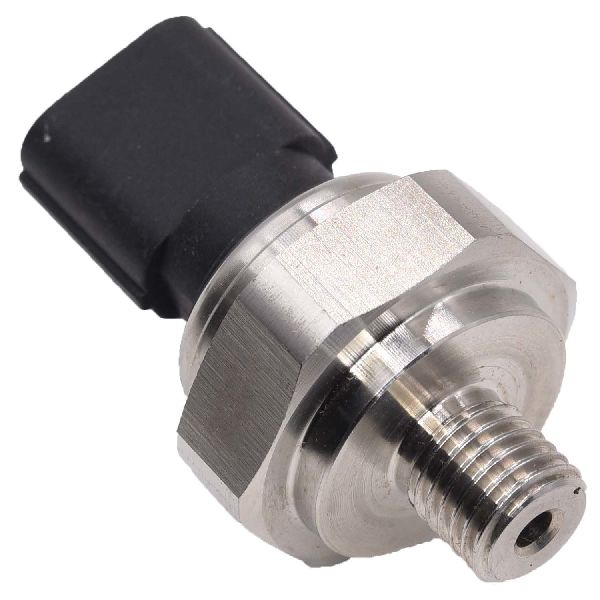

- Walker Products: A well-known manufacturer of engine sensors that markets its parts as meeting or exceeding OE specifications. A solid, dependable choice for most owners.
Economy Aftermarket (Budget-Focused)

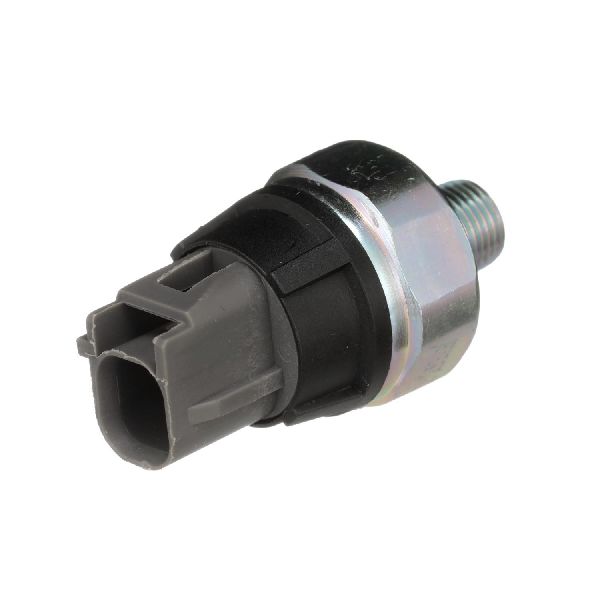

- True Tech, Global Parts: These brands provide a functional repair at the lowest price point. They are a viable option if budget is the primary concern, but may not offer the same long-term durability as premium brands.
Cost of Replacing the Engine Oil Pressure Switch
This is a very affordable repair, especially if you do it yourself. The part is easy to access and replace on the 1.3L engine.
| Part Source | Estimated Part Cost |
|---|---|
| New OEM | $135 - $240 |
| New Aftermarket | $14 - $130 |
| Used OEM | $40 - $60 |
| Shop Labor | $40 - $75 |
DIY Replacement is Easy
🎬 Watch this step-by-step Honda oil pressure switch replacement guide.Replacing this switch is a great job for a beginner. It is typically located on the engine block, often near the oil filter. The process involves unplugging the electrical connector, using a deep socket (usually 24mm) to unscrew the old switch, and then screwing in the new one. Always use a new O-ring or apply sealant as required by the new part.
Frequently Asked Questions
Where is the oil pressure switch located on a 2010-2015 Insight?
It is typically screwed into the engine block, often found near the oil filter housing. On some Honda 4-cylinder engines, it's on the back of the block. You will see a single wire and a rubber boot covering the electrical connection.
🎬 Watch this video for a complete oil pressure system overview.Are there any recalls for the oil pressure switch?
No. As of early 2026, there are no NHTSA safety recalls for the engine oil pressure switch on the 2010-2015 Honda Insight. There are recalls for other items like fuel pumps and airbags, so it's always good to check your VIN for any open campaigns.
What do OBD2 codes like P0520, P0521, or P0523 mean?
These are generic diagnostic trouble codes (DTCs) that point to a problem with the engine oil pressure sensor/switch circuit. For example, P0520 indicates a general circuit malfunction, while P0523 indicates high circuit input. These codes strongly suggest a sensor or wiring issue, not a mechanical oil pressure problem.
🎬 See how to diagnose and fix P0520-P0524 engine codes.Why not just use the cheapest switch available?
While an economy switch will work, this is a critical sensor for engine safety. A premium aftermarket brand uses higher-quality internal components and seals, making it less likely to fail prematurely or leak. Given the low cost of even the best aftermarket options, spending a few extra dollars for a part from a brand like Beck Arnley or Standard Ignition is a wise investment.
Helpful Videos
![How to Fix P0521 Engine Code in 4 Minutes [2 DIY Methods / Only $6.87]](https://img.youtube.com/vi/W9EL9QHCDMo/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 37260-RNA-A01 37241-RNA-A01 37250-R1A-A01
Your Insight may have more than one oil pressure switch (e.g., for the main system and for the VVT system). It is critical to visually inspect the failed part or use your VIN to confirm the correct OEM part number before ordering a replacement.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
