Engine Coolant Thermostat Guide for the 2010-2015 Subaru Outback
Keep your Outback's engine running at the perfect temperature by understanding when and how to replace a failing thermostat.
- A check engine light with code P0128 is a strong indicator of a failing thermostat that is stuck open.
- For reliability similar to the original part, choose an OEM-equivalent brand like Aisin or a reputable aftermarket brand like Gates.
- Always replace the rubber gasket along with the thermostat to prevent leaks.
- If your engine is overheating, stop driving immediately to prevent catastrophic engine damage.
Is Your Outback's Thermostat Failing?
A thermostat failure can happen in two ways: stuck-open or stuck-closed. A stuck-closed thermostat is the most dangerous, as it prevents coolant from reaching the radiator, leading to rapid engine overheating. A stuck-open thermostat is less critical but will cause the engine to warm up very slowly, poor heater performance, and can trigger a check engine light.
Common Symptoms of a Bad Thermostat:
- Check Engine Light: The most common code is P0128, which means the engine coolant temperature is below the thermostat's regulating temperature. This usually points to a thermostat that is stuck open.
- Engine Overheating: The temperature gauge climbs into the red. This is a critical symptom of a stuck-closed thermostat and you should stop driving immediately. 🎬 Watch this guide to diagnose rapid engine overheating issues.
- Engine Slow to Warm Up: If your temperature gauge takes a very long time to reach the normal operating position, the thermostat may be stuck open.
- Poor Heater Performance: The heater blows lukewarm or cool air because the engine isn't reaching the proper temperature to provide sufficient heat to the heater core.
- Erratic Temperature Gauge: The needle may fluctuate unpredictably between hot and cold, indicating the thermostat is not opening and closing correctly.
Known Issues & Technical Service Bulletins (TSBs)
For the 2013-2014 Outback with the 2.5L FB engine, Subaru issued a Technical Service Bulletin (TSB #09-56-13) for the P0128 code. It notes that in rare cases, coolant can enter the thermostat's internal piston after a cold soak, causing it to open at a lower temperature than specified. A countermeasure part was released to address this. While no recalls were found for the 2010-2015 model years, it's important to be aware of this specific issue if you own a 2013-2014 model. Later model Outbacks (2020+) have a more complex "Thermo Control Valve" that is subject to a warranty extension, but this does not apply to the 2010-2015 generation.
Choosing the Right Aftermarket Thermostat
When replacing the thermostat in your Outback, you have a choice between OEM and a variety of aftermarket brands. While OEM parts guarantee a perfect fit, high-quality aftermarket options can offer similar performance at a better price. For a critical part like a thermostat, it's best to stick with reputable brands.
Brand Quality Tiers
- OEM-Equivalent: Brands like Aisin are often the original equipment manufacturer for Subaru and other Japanese automakers. Choosing an Aisin thermostat is the closest you can get to a genuine Subaru part without the dealership price tag, offering excellent reliability. 🎬 See this fast and easy thermostat replacement walkthrough. Beck Arnley is another trusted brand that often re-packages genuine OEM parts for the aftermarket.
- Standard Replacement: Gates and Motorad are well-known aftermarket brands that produce reliable, standard replacement thermostats. They meet or exceed OEM standards and are a cost-effective choice for daily driving. Some users have noted that Gates thermostats may run slightly cooler than OEM.
- Performance: Mishimoto offers "racing" thermostats that open at a lower temperature (e.g., 165°F vs. a stock 190°F). While this can allow coolant to circulate sooner, it is generally unnecessary for a daily-driven vehicle and may decrease heater efficiency in cold climates. For most Outback owners, a standard temperature thermostat is the correct choice.
Pro Tip: Always replace the thermostat gasket or rubber seal when you replace the thermostat. They often come as a kit. This ensures a leak-free seal on the thermostat housing.
Cost of Replacing a 2010-2015 Subaru Outback Thermostat
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $15 - $70 |
| New OEM Subaru Thermostat | $35 - $50 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement | $180 - $320 |
Note: Costs are estimates and can vary based on location and specific parts used. The provided inventory price range is $15.63 - $68.95.
Frequently Asked Questions
Can I replace just the thermostat gasket?
While technically possible, it is not recommended. The thermostat itself is an inexpensive wear item. If you are doing the labor to access the housing, it is always best practice to replace both the thermostat and the gasket at the same time to prevent having to do the job twice.
What temperature thermostat do I need for my Outback?
For a stock 2010-2015 Outback, you should use a thermostat with the OEM-specified temperature rating, which is typically around 180°F to 195°F. Using a lower temperature racing thermostat is not recommended for daily driving as it can affect engine efficiency and heater performance.
Is replacing the thermostat a difficult DIY job?
For a 2010-2015 Outback, replacing the thermostat is considered an intermediate-level DIY task. It requires draining the coolant, removing the lower radiator hose to access the thermostat housing, and then properly refilling and bleeding the cooling system to remove air pockets. The job typically takes 1-2 hours.

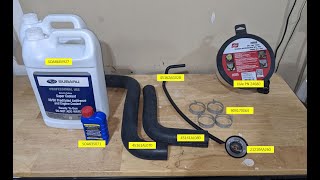

🎬 Watch a full coolant flush and thermostat replacement tutorial.What is the P0128 code and how does it relate to the thermostat?
The P0128 code means "Coolant Temperature Below Thermostat Regulating Temperature." Your car's computer expects the engine to reach a certain temperature within a specific time. If it warms up too slowly, the computer assumes the thermostat is stuck open, allowing coolant to circulate constantly and preventing the engine from getting hot enough. This is the most common code associated with a failing thermostat.
Helpful Videos
Technical Specifications
OEM Part Numbers: 21210AA080 21200AA072 21210AA260 21210AA120
Location: Lower radiator hose inlet on the engine block. Gasket Type: Rubber O-ring or integrated seal. Housing Bolts: Two 10mm bolts. Standard Opening Temperature: Approx. 180°F - 195°F.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
