Toyota Prius Brake Light Switch Guide for 2010-2015 Models
Understand the critical role of the brake light switch in your Prius and how to fix it right.
- A bad brake light switch is a primary reason a 2010-2015 Prius won't start.
- Symptoms include no-start, brake lights not working or staying on, and cruise control issues.
- This is a critical safety part; replace it immediately if you confirm it's faulty.
- DIY replacement is possible but requires working in a tight space in the driver's footwell.
Is Your Prius Not Starting or Acting Strange? Check the Brake Light Switch.
If your 2010-2015 Toyota Prius has trouble starting, the brake light switch is a common suspect. This small, inexpensive part, located at the top of the brake pedal arm, is a critical component. Before the car will enter 'Ready' mode, it must receive a signal that the brake pedal is depressed. If the switch fails, you might find yourself pressing the power button only for the car to cycle through accessory modes without starting.
🎬 Watch: Troubleshooting a Prius that won't enter Ready mode.Safety First: A Failing Switch is a Hazard
A malfunctioning brake light switch is a serious safety issue. It can fail in two ways: either your brake lights won't turn on, or they will stay on constantly. If they don't illuminate, drivers behind you won't know you're slowing down, increasing the risk of a rear-end collision. If they stay on, it can confuse other drivers and drain your 12-volt battery.
Common Symptoms of a Bad Brake Light Switch
- Car won't start: The car cycles through accessory modes but won't go into 'Ready' mode.
- Brake lights don't work: No lights illuminate when you press the brake pedal.
- Brake lights stay on: The lights remain on even when your foot is off the brake, potentially draining the battery. 🎬 See how to fix brake lights that stay on constantly.
- ABS or other warning lights on dash: A faulty switch can trigger various warning lights.
- Cruise control won't set or disengages randomly.
Known Issues for 2010-2015 Toyota Prius
While there are no specific recalls for the brake light switch itself on the 2010-2015 Prius, some early 2010 models had issues with brake feel and ABS software that were addressed in a recall. Forum discussions mention that the switch can sometimes be misadjusted from the factory, causing intermittent issues like needing to press the pedal harder than usual to start the car or brake lights not activating at the right pedal travel. The diagnostic trouble code P0571 is directly related to a fault in the brake switch circuit.
Choosing the Right Aftermarket Part
When it comes to electronics on a sensitive car like the Prius, part quality matters. While OEM is always a safe bet, quality aftermarket brands can offer significant savings. Forum users often recommend sticking with OEM for critical electronic parts to avoid compatibility issues. However, established aftermarket brands are a viable alternative.
- Standard Ignition (Standard): A well-known brand that often serves as an OEM supplier. Generally considered a high-quality aftermarket choice.
- Rostra Powertrain: Known for a wide range of automotive electronics, including transmission components and cruise control systems.
- Facet: An Italian brand with a long history in producing switches, sensors, and other engine management components.
For a simple but critical part like this, a reputable aftermarket brand is usually sufficient. However, if you've had issues with non-OEM electronics before or want maximum peace of mind, the Toyota genuine part is the safest choice.
Pro Tip: Check the Adjustment
Sometimes the issue isn't the switch itself, but its adjustment. The switch is threaded and held in place by a nut, allowing its position relative to the brake pedal to be changed. If your symptoms are intermittent, it might be worth checking if the switch is properly adjusted before replacing it.
Cost to Replace a Toyota Prius Brake Light Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $43.54 - $75.81 |
| New OEM Part | $40 - $65 |
| Shop Labor | $61 - $90 |
| Total Professional Replacement | $100 - $155 |
Costs are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Can I replace the brake light switch myself?
Yes, this is a DIY-friendly repair for most people. The switch is located in the driver's footwell above the brake pedal. Access can be tight, requiring you to work in an awkward position. The process involves disconnecting the electrical connector, unscrewing the old switch, and installing the new one, followed by an adjustment. No special tools are required beyond basic hand tools.
🎬 Watch this step-by-step guide to replacing the switch yourself.Why won't my Prius start if the brake light switch is bad?
For safety, the Prius requires you to have your foot on the brake before it will engage the hybrid system and enter 'Ready' mode. The brake light switch is what sends this signal to the car's computer. If the computer doesn't get the signal, it assumes the brake isn't pressed and won't start the car.
Is there a recall on the brake light switch for my Prius?
There are no specific recalls for the brake light switch on the 2010-2015 Prius. There was a recall for the ABS software on some 2010 models that affected brake feel, but this did not involve replacing the switch. There have also been customer support programs and recalls related to the brake booster and pump assembly for this generation, but not the switch itself.
Should I buy an OEM or aftermarket brake light switch?
Many owners and mechanics on forums suggest using a genuine Toyota (OEM) part for electrical components to ensure perfect compatibility and avoid potential issues. However, high-quality aftermarket brands like Standard Ignition are often reliable and more affordable. Given the low cost of the OEM part, it is often the recommended choice for peace of mind.
Helpful Videos
Technical Specifications

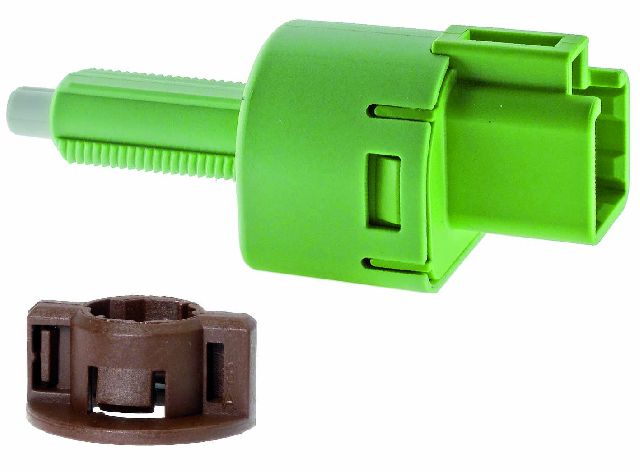

OEM Part Numbers: 84340-69075 84340-47050 84340-09310 84340-47020
4-pin or 5-pin electrical switch mounted on the brake pedal bracket.
