A Comprehensive Guide to the 2010-2016 BMW Z4 Windshield Washer Pump
Everything a Z4 owner needs to know about troubleshooting and replacing a faulty windshield washer pump.
- A failed washer pump is a common and relatively easy DIY fix for 2010-2016 Z4 owners.
- Before replacing the pump, check for a clogged filter screen at the pump's inlet, a common cause of failure.
- A quality aftermarket pump from a brand like Trico is a cost-effective alternative to OEM.
- After replacement, the JBE module may need to be reset with a diagnostic tool to restore power to the pump circuit.
Is Your BMW Z4 Windshield Washer Pump Failing?
A faulty windshield washer pump on a BMW Z4 (E89) can be more than just an inconvenience; it's a safety issue. If you activate the washers and nothing happens, or the spray is weak, it's time to investigate. Often, the first sign is hearing no sound from the pump when you try to use it. Other times, the pump might work intermittently before failing completely.
Common Failure Symptoms:
- No Fluid Spray: The most obvious sign is a complete lack of washer fluid spraying onto the windshield.
- Weak or Uneven Spray: If the fluid just dribbles out, it could be a sign of a failing pump or a clog.
- No Pump Noise: When you activate the washers, you should hear a distinct humming sound from the pump motor. Silence often points to a dead pump or an electrical issue.
- Washer Fluid Leaks: Puddles of blue or green fluid under the front of the car can indicate a leak from the pump's grommet or the pump housing itself.
An Important Note on BMW Electronics
On many modern BMWs, including the Z4, the Junction Box Electronics (JBE) module controls the washer pump. If the JBE detects a fault, like a shorted or seized pump, it may cut power to the circuit to protect itself. This means that even after replacing a dead pump, the new one might not work until the fault code is cleared from the JBE with a diagnostic tool.

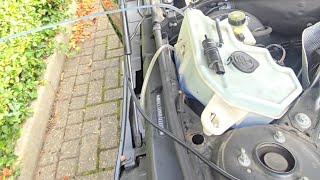

🎬 Watch how to reset the JBE and fix pump issues.Choosing a New Aftermarket Washer Pump
When replacing the washer pump on your Z4, you have a choice between a new OEM (Original Equipment Manufacturer) part from BMW and a new aftermarket part. For a component like a washer pump, a quality aftermarket part can offer significant savings without a noticeable difference in performance or longevity.
Trico is a well-known brand that produces aftermarket washer pumps. Their pumps are designed to be direct-fit replacements, meaning they install without any modifications needed. For a non-critical component like a washer pump, a reputable aftermarket brand provides a cost-effective and reliable solution.
Cost of Replacing a 2010-2016 BMW Z4 Windshield Washer Pump
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New OEM | $61 - $88 | $92 - $134 | $153 - $222 |
| New Aftermarket (Trico) | $38.34 | $92 - $134 | $130.34 - $172.34 |
*Cost estimates are for informational purposes only and may vary based on your location and repair shop.
Pro Tip: Check the Filter First!
Before you replace the pump, check for clogs. A common issue on the Z4 is the small filter screen at the pump's inlet getting blocked with debris or an algae-like substance. This can happen from using plain tap water or mixing different types of washer fluid. Sometimes, simply removing the pump and cleaning this filter can restore full function and save you the cost of a new part.
🎬 See how to fix a clogged washer pump for free.Frequently Asked Questions (FAQ)
Is replacing the washer pump a DIY job?
Yes, for most owners with basic tools, this is a very feasible DIY repair. The pump is located in the washer fluid reservoir, which is accessed by removing the front driver's side wheel and pulling back the wheel well liner. The pump itself just pulls out of a rubber grommet. The entire job can typically be done in about an hour.
🎬 Follow this step-by-step DIY guide to replace your washer pump.Are there any recalls for the Z4 washer pump?
There are no specific recalls for the windshield washer pump. However, there is a recall (NHTSA Campaign 24V608000) for the main engine *water pump* on some 2012-2016 Z4 models due to a potential short circuit. This is a separate part from the windshield washer pump and does not affect it.
What is a TSB and are there any for this issue?
A Technical Service Bulletin (TSB) is a notice from the manufacturer to its dealers about a known issue. BMW issued TSB B61 01 09, which notes that weak or no spray can be caused by a clogged pump strainer, either from manufacturing debris on low-mileage cars or from an algae-like substance. The bulletin advises cleaning the strainer as a first step.
Do I need one or two pumps?
Your Z4 uses a single pump for the windshield washers. If your vehicle is equipped with headlight washers, it will have a second, separate pump for that system. This guide and the parts discussed are for the windshield washer pump only.
Helpful Videos
Technical Specifications
OEM Part Numbers: 67127302589 67126934159
12V Mono Pump with 2-pin connector.
