A Guide to the Starter Motor for the 2010-2016 Chevrolet Camaro
Everything a fifth-generation Camaro owner needs to know about diagnosing, choosing, and replacing a failing starter motor.
- V8 models are known for starter 'heat soak'; a high-torque starter and/or a heat shield is a wise upgrade.
- Always test the battery and check cable connections first, as these can mimic starter failure symptoms.
- For modified engines with higher compression or aftermarket headers, a standard starter may not be powerful enough.
- Improving the engine's ground connections is a common and effective fix for heat-related slow-start issues.
Is Your Camaro's Starter Failing?
A bad starter can leave you stranded. Before you blame the starter, always make sure your battery is fully charged and the terminals are clean and tight. Many starter problems are actually battery or connection issues. If the battery is good, here are the common signs of a failing starter on a 2010-2016 Camaro.
Key Symptoms of a Bad Starter
🎬 Watch this video to see common symptoms of a bad starter.- Single Loud Click, Then Nothing: You turn the key, hear one solid 'click' from the engine bay, but the engine doesn't crank. This often means the starter solenoid is engaging, but the motor itself isn't turning.
- Slow, Labored Cranking (Especially When Hot): The engine turns over very slowly, like the battery is dying, but you know the battery is good. This is a very common issue with V8 Camaros known as "heat soak."
- No Sound at All: You turn the key and get complete silence. This could be a failed starter, a bad solenoid, or an issue in the ignition circuit.
- Grinding or Whirring Noise: If you hear a grinding sound when trying to start the car, it could mean the starter gear is damaged or not meshing correctly with the flywheel. A whirring sound suggests the starter motor is spinning but not engaging the engine at all.
A Known Issue: Starter Heat Soak
The most widely reported starter issue for 2010-2016 Camaros, particularly V8 models (SS, ZL1), is "heat soak." The starter is located very close to the hot exhaust manifold or headers. After a drive, the heat radiates from the exhaust and "soaks" the starter, increasing its internal electrical resistance. This makes it struggle to draw enough power to crank the engine, resulting in a slow, labored start 🎬 See how to fix a heat soaked Camaro starter. or just a click until it cools down. While a class-action lawsuit was filed concerning this issue for 2010 and newer models, owners have found that solutions like adding a heat shield or wrap, or improving engine grounds, can help significantly.
Choosing the Right Aftermarket Starter
When your OEM starter fails, you have several good aftermarket options. The choice depends on your budget, your car's modifications, and how you use it.
Brand Tiers for Your Camaro
- OEM-Equivalent Quality (ACDelco): ACDelco is GM's parts brand and is often the same part that came on your car from the factory. Choosing an ACDelco starter (either their GM Original Equipment or Gold line) is the safest bet for a direct, reliable replacement that meets factory specifications.
- High-Performance & Modified Engines (Powermaster, Proform, Mr. Gasket): If you have added performance parts like headers, a supercharger, or have a high-compression engine, a high-torque starter is a smart upgrade. Brands like Powermaster, Proform, and Mr. Gasket specialize in starters that offer more cranking power and are often designed to better resist heat soak, a common problem on V8 Camaros. They can provide the extra muscle needed to turn over a modified engine, especially when it's hot.
- Standard Aftermarket (MPA): Motorcar Parts of America (MPA) is a large supplier of quality new and remanufactured parts that meet or exceed OEM specifications. These are a solid, cost-effective choice for a stock or lightly modified Camaro.
Cost of Replacing a Camaro Starter
Starter replacement costs vary based on the part you choose and labor rates in your area. It's a moderately difficult job for a DIY mechanic due to tight access, especially on V8 models.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $122 - $399 |
| Shop Labor | $203 - $298 |
| Total Professional Replacement | $325 - $697 |
Frequently Asked Questions
Is it my battery or my starter?
First, test the battery. If the interior lights are dim or the headlights barely light up, it's likely the battery. If all the electronics work fine but the engine won't crank, the starter is a more likely culprit. A rapid-fire clicking noise when you turn the key usually points to a battery that is too weak to turn the starter.
Were there any recalls for the 2010-2016 Camaro starter?
There have been no specific recalls issued by the NHTSA for the starter motor itself. However, there was a major safety recall (NHTSA #14V346000) for the ignition switch on 2010-2014 Camaros, where a driver's knee could bump the key and turn the car off. While this is a separate issue, its symptom (car not starting or shutting off) can sometimes be confused with a starter problem.
Can I install a Camaro starter myself?
Yes, it is a DIY-feasible job for someone with mechanical experience and the right tools. However, access is tight. You will need to safely lift the front of the vehicle. On some models, you may need to work around the exhaust or remove a knock sensor to get the starter out. 🎬 Follow this step-by-step guide to replace your Camaro starter. For V8 models with headers, the job can be more difficult.
Do I need a special starter for my SS, ZL1, or V6?
While the basic function is the same, V8 and V6 engines use different starter models. It is critical to order the correct part for your specific engine (3.6L V6, 6.2L LS3/L99 V8, etc.). High-performance models like the ZL1 or modified SS Camaros benefit most from high-torque aftermarket starters to overcome heat and higher compression.
Helpful Videos

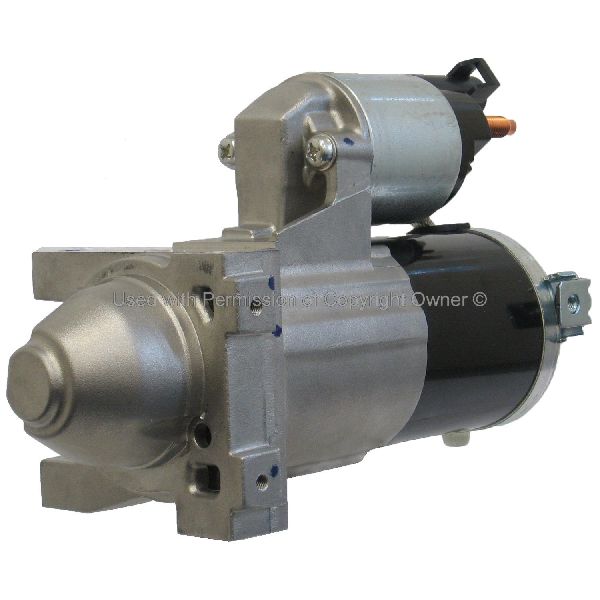

Technical Specifications
OEM Part Numbers: 12644788 12617229 19418859 10465065 12608653
The starter is a 12-volt, high-amperage motor. V8 models typically use a 1.4kW to 1.6kW unit with a 10 or 12-tooth pinion gear. It mounts directly to the engine block or bellhousing with two bolts.
