Guide to A/C System O-Ring & Gasket Kits for the 2010-2016 GMC Terrain
Losing your cool over a weak A/C? Your Terrain's air conditioning might just need new seals.
- An A/C O-ring and gasket kit is not a standalone repair; it's required when replacing major A/C components like the compressor or condenser.
- The most common symptom of a seal failure is the A/C blowing warm air due to low refrigerant.
- For best results, use a quality brand like ACDelco (OEM equivalent) or Four Seasons to ensure a proper seal.
- Always lubricate new O-rings with PAG 46 oil before installation to prevent tearing and ensure a leak-free connection.
Is Your Terrain's A/C Blowing Warm Air?
If the air conditioning in your 2010-2016 GMC Terrain isn't as cold as it used to be, the most common reason is a refrigerant leak. While the leak could be from a major component, it often happens at the connection points sealed by O-rings and gaskets. Over time, these rubber seals can degrade, crack, or harden, allowing refrigerant to escape. You might not see a puddle, as the refrigerant, a gas called R-134a in these vehicles, escapes into the air. A mechanic can add a UV dye to the system to pinpoint the exact source of the leak.
🎬 Watch this video to troubleshoot why your Terrain's A/C is blowing warm.Choosing the Right Aftermarket O-Ring Kit
You don't replace A/C O-rings on their own. You replace them whenever you replace a larger A/C part like a compressor or condenser. Getting a quality kit is a cheap insurance policy against having to do the job all over again. Here’s a look at the available brands:
- ACDelco: As General Motors' own parts division, ACDelco is the closest you can get to original equipment (OEM) quality. Their kits use the specified HNBR rubber and are manufactured to fit perfectly. For a part this critical to sealing the system, choosing ACDelco provides the highest level of confidence.
- Four Seasons: Four Seasons is a well-respected aftermarket brand that specializes in climate control parts. Many professional mechanics use their parts and find them to be a reliable and cost-effective alternative to OEM. Their kits are a solid choice if the ACDelco kit is not available.
- Global Parts (GPD): Global Parts is another aftermarket supplier. While generally functional, some users in forums have reported mixed experiences with fit and longevity compared to more established brands like ACDelco or Four Seasons. They are typically the most budget-friendly option.
Pro Tip: Not All Green O-Rings Are The Same
While most modern A/C O-rings are green, some aftermarket kits may have seals that are slightly thinner or less robust than the original factory parts. This can lead to a poor seal and a recurring leak. Sticking with a reputable brand like ACDelco or Four Seasons minimizes this risk.
Known Issues for the 2010-2016 GMC Terrain A/C
While there are no specific recalls for the O-rings themselves on this generation of Terrain, GM has issued Technical Service Bulletins (TSBs) for A/C issues on similar and later models that often point to leaks at connection points or seals on the condenser. For example, TSB 18-NA-162 addresses leaks from the condenser's receiver/dehydrator plug on later models, highlighting the importance of quality seals. The most common A/C failures on the 2010-2016 Terrain that require O-ring replacement are compressor or condenser failure.
Cost at a Glance: A/C O-Ring & Gasket Kit
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit (ACDelco, Four Seasons, etc.) | $20 - $37 |
| Shop Labor (Installation during other A/C work) | $150 - $300+ (Labor for the entire A/C job, not just seals) |
Note: Costs are estimates. The O-ring kit is a small part of a larger A/C repair bill, which includes the major component, labor to access it, and the cost to evacuate and recharge the system.
Frequently Asked Questions
Do I need a different kit for the 4-cylinder vs. the V6 engine?
Generally, the main seal kits cover all engine options (2.4L, 3.0L, 3.6L) for the 2010-2016 Terrain, as the core A/C components are similar. However, always use the compatibility checker on the seller's website with your vehicle's specific details to be certain.
Can I just replace the one O-ring that is leaking?
It's not recommended. The A/C system must be fully evacuated of refrigerant to replace any seal safely. Since the system is already open, it is best practice to replace all the seals on the component you are working on to prevent future leaks. The kits are inexpensive, so it's worth doing it right the first time.
Do I need to add oil to the new O-rings?
Yes, this is a critical step. You must lightly lubricate the new O-rings with the correct type of A/C oil (PAG 46 for this vehicle) before installation. This allows the seal to seat correctly without tearing or twisting, which would cause a leak.
Why is my A/C still blowing warm after replacing parts and using a new gasket kit?
First, check for simple things like blown fuses or faulty relays for the A/C compressor. 🎬 See this guide to locate your A/C fuses and relays. If those are fine, the issue could be a different leak in the system, an electrical problem, a bad A/C compressor clutch, or an incorrect refrigerant charge. A professional diagnosis may be needed to find the root cause.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15-34662

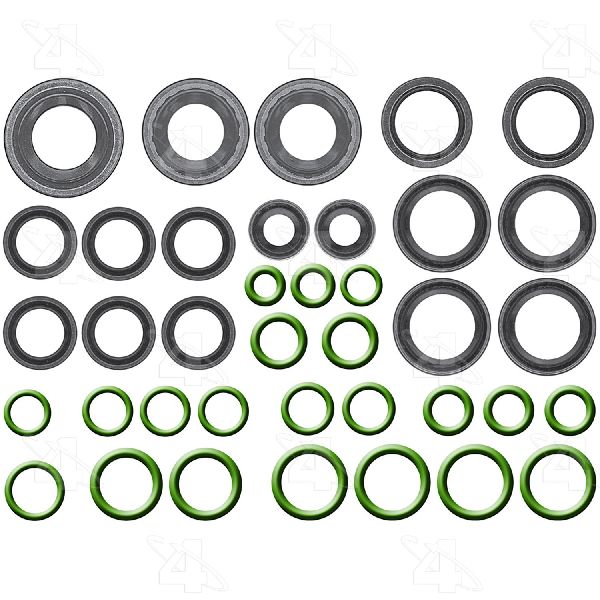

Kit contains various sizes of HNBR (Hydrogenated Nitrile Butadiene Rubber) O-rings and sealing washers compatible with R-134a refrigerant and PAG 46 oil.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
