A Guide to the Engine Cooling Fan Module for the 2010-2016 Volvo XC60
Understand the symptoms of a failing cooling fan module and how to choose the right replacement for your XC60.
- A failing module can cause overheating, A/C problems, or a dead battery.
- Volvo only sells the full fan assembly; buying an aftermarket module alone saves significant money.
- Avoid cheap, unbranded modules, as they are known to fail quickly. Reputable brands like Gates are a safer choice.
- Replacement is a manageable DIY job for most, requiring basic tools and about an hour of time.
Is Your Volvo XC60 Overheating or A/C Blowing Hot?
A failing Engine Cooling Fan Module is a common issue on the 2010-2016 Volvo XC60, often appearing after 100,000 miles. This part is critical for keeping your engine at a safe temperature. When it fails, it can leave you stranded. The most obvious signs are an engine temperature warning light on your dash or an air conditioning system that only blows hot air when you're stopped or moving slowly. You might also notice the fan running at full speed long after you've turned the car off, which can drain your battery.
Choosing the Right Aftermarket Module: OEM vs. Aftermarket

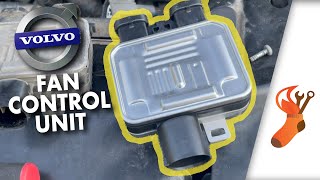

If you go to a Volvo dealer, they will only sell you the entire cooling fan assembly, which includes the fans, the shroud, and the module. This is an expensive repair. Luckily, aftermarket brands sell the module by itself, which is the part that usually fails. 🎬 Watch a super fast repair of the fan control unit. This makes the repair much more affordable.
However, not all aftermarket parts are created equal. Forum users report that very cheap, unbranded modules from online marketplaces often fail quickly, sometimes within days or months. For a critical part like this, it's better to choose a reputable aftermarket brand.

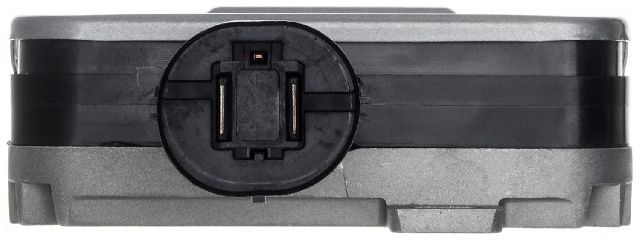

- Gates: Gates is a well-known brand specializing in cooling systems and belts. Their fan control module (part number FCM108) is often recommended by Volvo owners as a reliable alternative to the expensive dealer part.

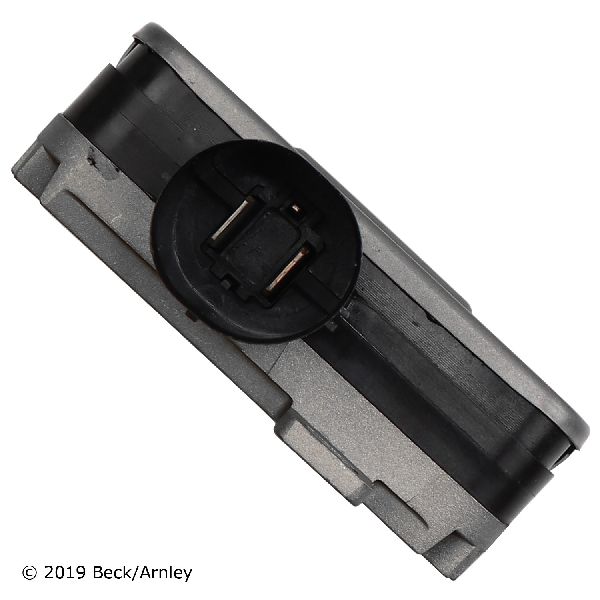

- Beck Arnley: Beck Arnley sources parts from various manufacturers, sometimes even re-boxing the original OEM part. Quality can be very good, but it can also be inconsistent depending on their supplier for that specific part. They are generally considered a step up from no-name brands.
Pro Tip: Check Your Connections
Before replacing the module, inspect the electrical connectors for any signs of corrosion, melting, or damage. Sometimes a bad connection is the real problem. Applying a small amount of dielectric grease to the new module's connectors during installation can help prevent future moisture-related issues.
🎬 See a DIY walkthrough for swapping out the controller.Cost of Replacing the Engine Cooling Fan Module
| Part Type | Estimated Cost |
|---|---|
| New OEM (Full Assembly) | $650 - $850+ |
| New Aftermarket (Module Only) | $254.55 - $449.34 |
| Shop Labor | $125 - $250 |
Cost estimates are for the part/service and do not include taxes or local shop fees. Labor cost is estimated for module-only replacement.
Frequently Asked Questions
Can I replace the cooling fan module myself?
Yes, this is a DIY-friendly job for many owners. The module is typically held on by a single screw and a few electrical plugs. Access can be a bit tight, requiring removal of the air intake pipe, but it does not usually require removing the entire fan assembly. A short or angled screwdriver is highly recommended.
🎬 Watch this step-by-step guide to replacing the XC60 fan module.Are there any recalls for this part on my XC60?
While Volvo issued a recall (Recall 214) for a fan control module software error on some 2008-2009 models, it did not officially include the 2010-2016 XC60. No other specific recalls for the fan module on these model years were found.
What happens if I don't replace a bad fan module?
Continuing to drive with a faulty fan module is a serious risk. If the fans don't turn on, your engine can quickly overheat, leading to severe and expensive damage like a warped cylinder head. If the fan won't turn off, it will drain your battery, leaving you stranded.
Why does Volvo only sell the whole fan assembly?
Manufacturers often bundle related components into a single assembly for a few reasons. It simplifies their parts inventory and ensures that all related wear-and-tear components are replaced at once, reducing the chance of a comeback repair. However, for the customer, it is much more expensive when only one small part of the assembly has failed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31686808 30668629 30723011 31274211 31274265 31293777 31338823
Controls a dual fan setup with a single controller. Mounts directly to the radiator fan shroud.
