Chevrolet Equinox Wiper Linkage and Transmission Guide (2010-2017)
Here's what you need to know when the wiper linkage fails on your 2010-2017 Chevrolet Equinox.
- This is a very common failure on 2010-2017 Equinox models due to a design flaw in the original linkage.
- Before buying parts, check with a GM dealer to see if your vehicle is covered by Special Coverage N192266180.
- Replacing the entire linkage assembly is more reliable than trying to replace just the plastic bushings.
- Driving without working wipers is a critical safety hazard; do not operate the vehicle in poor weather.
Is there a problem with the 2010-2017 Chevrolet Equinox Wiper Linkage?
Yes, the wiper linkage on the 2010-2017 Chevrolet Equinox and its sibling, the GMC Terrain, has a well-known history of failure. The main issue is that the ball joints and sockets that connect the linkage arms can wear out, corrode, or break. Many of these connections use plastic bushings that become brittle and fail over time, causing a linkage arm to pop off its ball stud. When this happens, one or both wipers will stop moving, which is a serious safety hazard in rain or snow.
Check for GM Special Coverage N192266180
Due to the high failure rate, General Motors issued a recall for 2013 models (NHTSA 16V582000) and a Special Coverage program for 2010-2012 and 2014-2017 models. This extended the warranty for the wiper transmission to 10 years or 150,000 miles. Before buying a new part, contact a GM dealer with your VIN to see if your vehicle is still eligible for a free repair.
Symptoms of a Failing Wiper Linkage
A bad wiper linkage gives clear warning signs. The most common symptom is hearing the wiper motor run, but the wipers don't move at all. 🎬 Watch: See what a failed linkage looks like in action. Other signs include:
- One Wiper Stops Working: One arm moves normally while the other is stuck.
- Wipers Move Out of Sync: The blades no longer move together in their correct pattern.
- Grinding or Clanking Noises: You may hear mechanical sounds from the base of the windshield when the wipers are on.
- Wipers Don't Park Correctly: When you turn them off, the wipers stop in the middle of the windshield instead of at the bottom.
Choosing the Right Aftermarket Wiper Linkage
If your Equinox is no longer covered by the warranty extension, an aftermarket replacement is a cost-effective solution. The original GM part is known to be faulty, and some aftermarket brands offer improved designs.
Here’s a look at the available brand tiers:
- Good (Value): Skyward or Replacement. These brands offer a direct-fit replacement that meets original specifications. They are a budget-friendly choice to get your wipers working again. While they restore function, they may use materials similar to the original part that failed.
- Better (Enhanced): Dorman. Dorman is a well-known aftermarket manufacturer that often engineers solutions to common factory problems. For the Equinox, some Dorman OE FIX linkages feature an upgraded all-metal construction instead of the original plastic components, providing a more durable, long-term repair. This is often a smart choice over a standard replacement.
Pro Tip: Many owners have tried replacing just the small plastic bushings with kits like the Dorman 49449. However, this can be a difficult repair with mixed results, and the linkage may pop apart again. For a more reliable and permanent fix, replacing the entire wiper linkage assembly is recommended.
Estimated Replacement Costs
The cost to replace the wiper linkage depends on the part you choose and whether you do the work yourself. The job is straightforward for a DIYer with basic tools and takes about 1-2 hours.

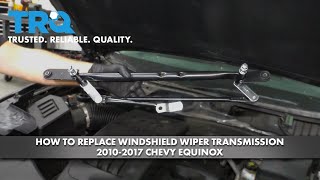

🎬 Watch: Step-by-step guide to replacing your wiper transmission.| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Linkage | $52 - $66 |
| New OEM Linkage | $40 - $70 |
| Shop Labor | $120 - $250 |
| Total DIY Cost | $52 - $66 |
| Total Professional Repair | $172 - $316 |
Frequently Asked Questions
Can I drive my Equinox with a broken wiper linkage?
No. Driving without functional windshield wipers is a major safety risk and illegal in many places. If there is any chance of rain, snow, or road spray, the vehicle is not safe to drive until the wipers are repaired.
Is it hard to replace the Equinox wiper linkage myself?
For most people with basic mechanical skills, this is a very manageable DIY job. The process involves removing the wiper arms and the plastic cowl panel below the windshield to access the linkage. The most common challenge is removing the plastic cowl clips without breaking them. 🎬 See how to safely access the motor and linkage assembly. Many step-by-step videos are available online.
Do I need to replace the wiper motor too?
Usually, no. With this specific issue, the wiper motor is typically still working fine; you can often hear it running when you turn the wipers on. The failure is in the linkage that connects the motor to the arms. You only need to replace the linkage assembly unless the motor itself has also failed.
What tools are needed to replace the wiper linkage?
You will need basic hand tools, including a socket set (10mm, 15mm are common), a ratchet, a trim tool for removing plastic clips, and possibly a wiper arm puller tool, though often the arms can be wiggled off by hand.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84241847
The assembly includes the linkage arms and pivot points that connect the wiper motor to the wiper arms. It is located under the plastic cowl panel at the base of the windshield.
