GMC Terrain Wiper Linkage Guide for 2010-2017 Models
If your GMC Terrain's wipers suddenly stopped working, you're not alone; here is what you need to know to fix them.
- First, call a GM dealer with your VIN to check if your Terrain is covered by Special Coverage Adjustment N192266180 or N192266181 for a free repair.
- The failure is almost always the linkage, not the motor. You can save money by buying just the linkage and reusing your original motor.
- Sudden wiper failure is the key symptom; the motor may still sound like it's working.
- Replacing the entire linkage assembly is a more permanent fix than just replacing the plastic bushings.
A Common and Dangerous Problem
For the 2010-2017 GMC Terrain, failure of the original wiper linkage is a well-known issue. The problem typically stems from the ball joints within the linkage assembly. These joints can corrode and wear out, causing a pivot socket to pop off its ball stud. When this happens, the connection between the motor and the arms is broken. The failure is often sudden and can happen during heavy rain or snow, creating a serious safety hazard. You might hear the wiper motor still running, but the wipers will stop moving, often in the middle of the windshield, and will feel loose if you try to move them by hand.
Important: Check for GM Special Coverage First
Due to how common this failure is, General Motors issued a "Special Coverage Adjustment" (SCA) for this part. This is not a formal recall for all years but acts like an extended warranty for this specific problem. Depending on the model year, GM will replace the failed linkage at a dealership for free for up to 10 years/150,000 miles or even 15 years/200,000 miles. Before buying any parts, call a GM dealership with your VIN to see if your Terrain is covered under SCA N192266180 or N192266181. The main condition is that the part must have already failed for the dealer to perform the repair under the program.
Choosing the Right Aftermarket Wiper Linkage
If your vehicle is outside the Special Coverage terms or you prefer to do the repair yourself, a new aftermarket linkage is an affordable and reliable solution. Since the original part has a known design flaw, a quality aftermarket part can be a smart choice. Here’s a look at the available brands:

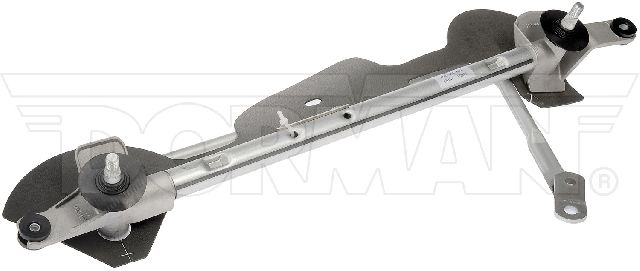

- Dorman: This is a well-known and widely available brand that produces a direct replacement linkage for the Terrain. They offer the linkage by itself or as a complete assembly with a new motor. Given the high failure rate of the original, Dorman has reverse-engineered the part specifically to fix this issue, making it a trustworthy option.
- Replacement: This is often a store's house brand or a generic equivalent. These parts offer a budget-friendly price and meet original equipment specifications. They are a good choice if you need a functional part at the lowest cost, but may not have the same engineering documentation as a brand like Dorman.

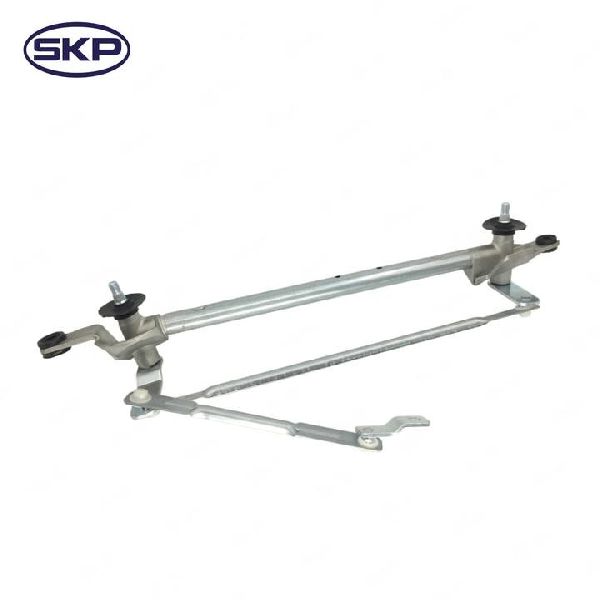

- Skyward: There is very little public information available regarding the quality or reliability of Skyward auto parts from a consumer perspective. While they may be a viable option, we cannot provide an honest quality assessment based on available data.
Pro Tip: Many owners report that just replacing the small plastic bushings on the linkage is a temporary fix at best. For a lasting repair, it is highly recommended to replace the entire linkage assembly. If your wiper motor is still working correctly, you can save money by buying just the linkage and transferring your old motor to the new part.
Estimated Replacement Costs
The cost to fix your wiper linkage varies depending on whether you do it yourself or take it to a shop. Remember to check for Special Coverage first, as the repair may be free.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $100 - $150+ |
| New Aftermarket Part (Linkage Only) | $52 - $66 |
| Shop Labor | $95 - $150 |
| Total Shop Visit (Aftermarket Part) | $150 - $220 |
Frequently Asked Questions
Can I replace just the broken plastic bushing?
While some companies sell bushing repair kits, forum users and reviewers often report that this is not a permanent solution. The new bushing may pop off again, especially if the ball stud it connects to is worn or corroded. Replacing the entire linkage assembly is the most reliable long-term repair.
Is this a difficult repair to do myself?
For a DIYer with basic tools, this is a very manageable job that can be done in about an hour or two. The process involves removing the wiper arms and the plastic cowl panel to access the linkage. Many video tutorials are available online that walk through the process on a GMC Terrain or Chevy Equinox.
Do I need to replace the wiper motor too?
Not usually. In most cases, the motor is still perfectly fine; the failure is in the linkage arms. You can buy the linkage assembly without the motor and simply unbolt your old motor and attach it to the new linkage, saving significant money.
What causes the wiper linkage to fail?
The primary cause is a design flaw where water and road salt can get into the linkage's ball joints, causing them to rust and wear out. Heavy loads on the wipers, such as trying to clear heavy, wet snow, can also stress the components and lead to failure.
Technical Specifications
OEM Part Numbers: 25948436 84126961 84241847
The assembly consists of metal linkage arms with integrated ball-and-socket style pivot points. The failure point is typically the separation of a ball from its socket due to corrosion and wear.
