Ford F-550 Super Duty (2010-2018) Vapor Canister Vent Solenoid Replacement Guide
Fix your check engine light and fueling problems by understanding and replacing the vapor canister vent solenoid on your truck.
- A bad vent solenoid is a common cause for EVAP-related check engine light codes like P0446 on the F-550.
- Symptoms often include a check engine light and difficulty filling the gas tank without the pump constantly shutting off.
- This is an easy and inexpensive DIY replacement, usually requiring no special tools and taking less than an hour.
- Always check that the gas cap is tight and in good condition before replacing any parts.
Is Your F-550's Check Engine Light On?
A common reason for the check engine light on a 2010-2018 Ford F-550 is a problem within the EVAP system. The vapor canister vent solenoid is a frequent culprit. This component is exposed to road dirt and moisture under your truck, and it can fail over time. When it does, it can trigger diagnostic trouble codes and cause noticeable issues.
Top Symptoms of a Bad Vent Solenoid
If the vent solenoid on your Super Duty is failing, you'll likely experience one or more of these issues:

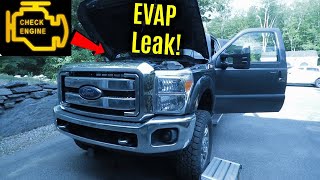

- Check Engine Light: This is the most common symptom. The light will be on with codes like P0446 (Vent Control Circuit Malfunction) 🎬 Watch this video to understand the causes of code P0446. or P0455 (Large Leak Detected).
- Trouble Fueling: If the solenoid is stuck closed, pressure can build up in the fuel tank as you try to fill it. This can make the gas pump click off repeatedly, making it very slow and frustrating to refuel your truck.
- Fuel Smell: While less common for a vent solenoid failure, any leak in the EVAP system can sometimes lead to the smell of raw fuel around the vehicle.
- Failed Emissions Test: An active check engine light from an EVAP fault will cause an automatic failure of a state emissions inspection.
Check the Gas Cap First!
Before you buy any parts, make sure your gas cap is tight and the seal is in good condition. A loose or faulty gas cap can also cause EVAP codes like P0455. It's a simple check that could save you time and money.
Choosing the Right Aftermarket Vent Solenoid

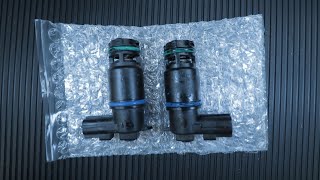

For the 2010-2018 F-550, the original equipment (OEM) vent solenoid is a reliable part, but aftermarket options offer comparable function at a better price. The replacement process is simple, making an aftermarket part a cost-effective choice for a DIY repair. 🎬 See this quick walkthrough of the vent valve replacement process. Here’s a look at the available brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Motor Products parts are known for their quality and reliability. They are a solid choice if you want a part that is expected to last.
- Dorman: Dorman is a widely available brand that offers a direct replacement for the original part. While some mechanics have mixed opinions on Dorman's electronic components, many DIYers use them successfully to fix EVAP issues at a budget-friendly price.
- Global Parts / Other Brands: Other brands, including store-specific labels like Global Parts, are also available. These are typically the most affordable but may have less of a track record compared to brands like SMP or Dorman.
Cost of Replacing the Vapor Canister Vent Solenoid
The cost to replace the vent solenoid on an F-550 is reasonable, especially if you do the work yourself. The part is easy to access and does not require special tools.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $53.33 - $94.95 |
| New OEM Part | $70 - $110 |
| Shop Labor | $95 - $150 |
| Total Professional Replacement | $165 - $260 |
Cost estimates are based on market research and may vary by location and supplier.
Installation Tips for F-550 Super Duty
Replacing the vent solenoid is a great job for a DIYer. It's located on or next to the charcoal canister, which is usually mounted on the frame rail underneath the truck, often near the spare tire.

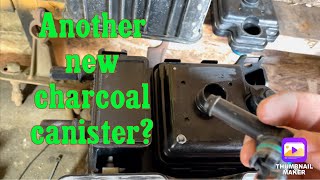

🎬 Watch: How to remove the charcoal canister and solenoid.- Lower the Spare Tire: This will give you much more room to see and work.
- Locate the Solenoid: Find the charcoal canister (a black plastic box) and identify the solenoid attached to it. It will have an electrical connector and attach to the canister body.
- Disconnect and Remove: Unplug the electrical connector. The solenoid itself usually twists about a quarter-turn and then pulls straight out of the canister. You may need a flathead screwdriver to gently pry it if it's stuck.
- Install the New Solenoid: Lightly lubricate the O-rings on the new solenoid with clean motor oil or silicone grease. Insert it into the canister and twist to lock it into place. Reconnect the electrical harness.
- Clear the Code: Use an OBD2 scanner to clear the check engine light. The light should stay off if the solenoid was the problem.
Related Issue: Recall for Stuck Purge Valve
Ford issued recall 18S32 / 18V735 for some vehicles because the powertrain software couldn't detect a stuck-open purge valve (a different part of the EVAP system). This could create excessive vacuum and deform the plastic fuel tank, leading to an inaccurate fuel gauge or engine stalling. While this recall doesn't directly involve the vent solenoid, it highlights the importance of keeping your EVAP system in good working order.
Frequently Asked Questions
Where is the vapor canister vent solenoid located on a 2010-2018 F-550?
It is located on the charcoal canister itself. You will find the canister mounted to the truck's frame, typically near the fuel tank and spare tire area. You will need to look underneath the truck to access it.
Can I just clean my old vent solenoid?
Sometimes the valve can get stuck due to dirt or corrosion. You can try cleaning it, but it is often an electrical failure inside the solenoid that cannot be repaired. Given the low cost of a new part and the high chance the old one is simply worn out, replacement is the most reliable solution.
What is the difference between a vent solenoid and a purge solenoid?
They are two different parts of the same system. The vent solenoid is normally open and located near the charcoal canister to let fresh air in. The purge solenoid (or purge valve) is normally closed and located in the engine bay; it opens to let stored fuel vapors be pulled out of the canister and into the engine.
What happens if I don't replace a bad vent solenoid?
Your truck will continue to run, but you won't be able to pass an emissions test. You may also continue to have problems with the gas pump shutting off every time you try to refuel. Leaving the problem unfixed can sometimes mask other issues in the EVAP system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9U5Z-9F945-C 9U5Z9F945C

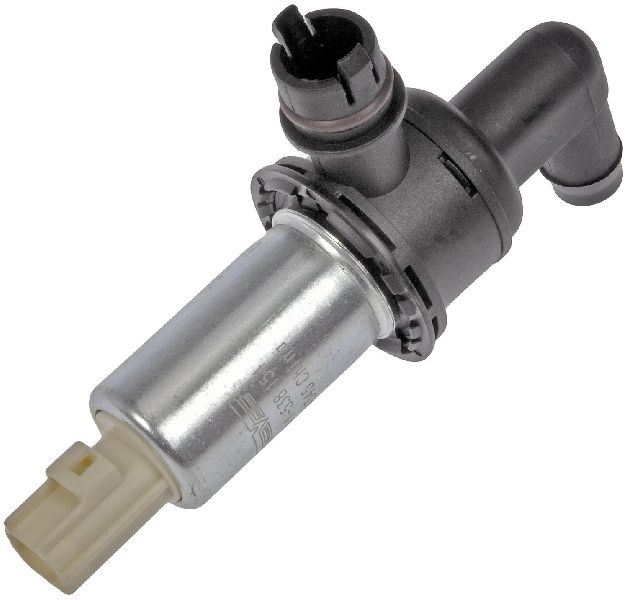

This solenoid is a 2-pin electrical component that typically mounts directly to the charcoal canister. It functions as a normally-open valve. Aftermarket cross-reference numbers include Dorman 911-216 and Standard Motor Products CVS143.
