A Seat Ibiza Owner's Guide to the Engine Camshaft Position Sensor (2010-2018)
Fix your Ibiza's rough idle or starting problems by understanding this critical engine sensor.
- A bad camshaft sensor commonly causes a Check Engine Light (P0341), rough idle, stalling, and difficulty starting.
- Before replacing the sensor, rule out wiring issues. If a new sensor doesn't fix the problem, have the timing chain checked by a professional.
- Replacement is a simple DIY task, typically taking under 30 minutes with basic tools.
- For best reliability, choose an OEM or a premium aftermarket brand like Bosch, Hella, or Valeo over budget options.
Is Your Seat Ibiza Running Rough? It Could Be the Camshaft Position Sensor
If your 2010 to 2018 Seat Ibiza is suddenly hard to start, idling poorly, or losing power, a failing engine camshaft position sensor is a likely suspect. This sensor is essential for smooth engine operation, and when it fails, the symptoms are often very noticeable. Fortunately, replacing it is a straightforward job you can likely do yourself.
Symptoms of a Failing Camshaft Sensor
A bad camshaft sensor sends incorrect information, or no information at all, to your car's main computer. This can cause a variety of problems:
- Check Engine Light: This is often the first and most obvious sign. A code scanner will typically show a fault code like P0341.
- Hard Starting or No Start: The engine may crank for a long time before it starts, or it may not start at all.
- Rough Idle: The engine may shake, vibrate, or sound uneven when the car is stopped. 🎬 Watch: A breakdown of common bad camshaft sensor symptoms
- Engine Stalling: The car might stall unexpectedly, either while driving or when idling at a stoplight.
- Poor Acceleration: You may feel a significant lack of power, hesitation, or sluggishness when you press the gas pedal.
Warning: It Might Not Be the Sensor
While the camshaft sensor is a common failure point, similar symptoms can be caused by more serious issues. A P0341 code can sometimes be triggered by a stretched timing chain or a slipped reluctor ring on the camshaft itself. If you replace the sensor and the problem continues, it is critical to have a professional mechanic inspect the engine's timing components to avoid severe engine damage.
🎬 See how timing chain issues can trigger P0341 codesChoosing the Right Aftermarket Sensor
When shopping for a new aftermarket camshaft sensor, you'll find different brands at different price points. Quality can vary, and for critical sensors, it's important to choose wisely.
- Premium Aftermarket (e.g., Bosch, Hella, Valeo): These companies are often original equipment (OEM) suppliers to Volkswagen Group, which includes Seat. Their parts are engineered to meet or exceed OEM standards and are considered a reliable choice for European vehicles.
- Standard Aftermarket (e.g., Standard Ignition, Walker Products): These brands offer a more budget-friendly option. While they are established in the market, customer reviews can be mixed, with some reporting shorter lifespans compared to OEM or premium brands. They can be a good value, but for a critical sensor, the risk of premature failure is a consideration.
- Value or Private Label Brands (e.g., True Tech): These are typically the lowest-priced options. Quality and longevity can be unpredictable, as there is often little public information about the manufacturer. Using these parts may be a gamble.
Pro Tip: Don't Throw Away the Old Part
If you decide to try an aftermarket sensor and the problem isn't solved, don't assume the new part is good. It's possible the new sensor is faulty out of the box. It's a good idea to hold onto your old sensor (if it was at least partially working) to swap back in for testing purposes.
Cost of Replacing a Seat Ibiza Camshaft Position Sensor
| Part / Service | Estimated Cost |
|---|---|
| New OEM Sensor | $75 - $125 |
| New Premium Aftermarket Sensor | $50 - $80 |
| New Standard Aftermarket Sensor | $32 - $57 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the camshaft position sensor located on my Seat Ibiza?
The sensor is typically located on the top or side of the engine's cylinder head, near the valve cover. You will likely need to remove the plastic engine cover to see it. It is a small sensor held in by a single bolt with an electrical connector attached.
Can I replace this sensor myself?
Yes, this is a very DIY-friendly repair. The job requires basic tools, such as a socket or Torx driver set, and usually takes less than 30 minutes. Simply disconnect the battery, unplug the electrical connector, remove one bolt, swap the sensor, and reconnect everything.
🎬 Watch: Step-by-step camshaft sensor replacement on a similar engineWhat does the code P0341 mean?
P0341 stands for "Camshaft Position Sensor 'A' Circuit Range/Performance." It means the ECU has detected a problem with the signal from the sensor—it might be inconsistent, intermittent, or out of the expected range. While this often points to a bad sensor, it can also be caused by wiring issues or mechanical timing problems.
Is it safe to drive with a bad camshaft position sensor?
It is not recommended. While the car may still run, you will experience poor performance, bad fuel economy, and the risk of the engine stalling in traffic, which is a safety hazard. Driving for an extended period with this issue can also put extra strain on other components, like the catalytic converter.
Helpful Videos
Technical Specifications
OEM Part Numbers: 030907601 030907601D 030907601E

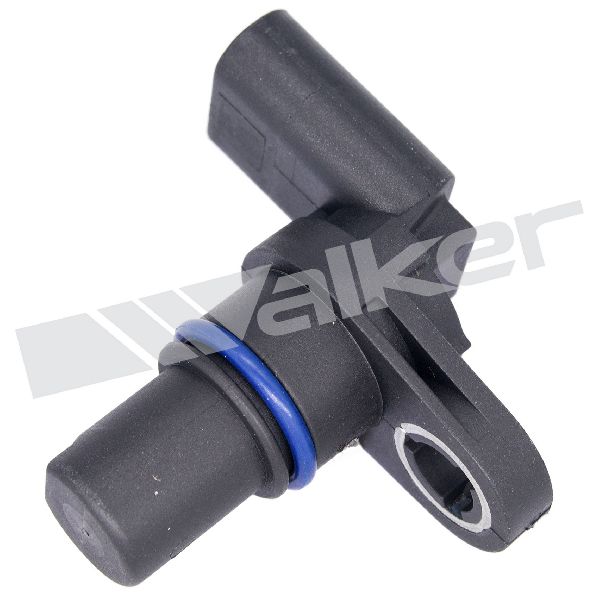

The sensor is a 3-pin Hall effect sensor that reads the rotation of the camshaft. It is typically secured by a single bolt and sealed with a rubber O-ring.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
