A Ford E-350 Super Duty Owner's Guide to Direct Ignition Coils (2010-2019)
Fix engine misfires and restore performance by understanding and choosing the right ignition coils for your van.
- A flashing check engine light on your E-350 often means a coil has failed and should be addressed immediately.
- For high-mileage vans, it is best practice to replace all ignition coils and spark plugs at the same time.
- Accessing the coils requires removing the engine 'doghouse' cover from inside the van's cabin.
- Verify the correct coil boot color (black vs. brown) for your specific model year and engine before ordering.
Is Your E-350 Running Rough? It Could Be an Ignition Coil.
If you own a 2010-2019 Ford E-350 Super Duty with the 5.4L V8 or 6.8L V10 engine, a rough idle, hesitation, or a flashing Check Engine Light are common signs of a failing ignition coil. These vans work hard, and heat and vibration eventually take their toll on electrical parts. When a coil fails, the cylinder it's responsible for stops firing correctly, a condition known as a misfire. This guide will help you diagnose the problem and choose the right replacement coils.
Symptoms of a Bad Ignition Coil
A failing ignition coil isn't always obvious, but it usually gives clear warning signs. Pay attention if your van starts doing any of the following:
- Check Engine Light: A flashing Check Engine Light is a serious warning of an active misfire. A solid light can also indicate a coil problem. The most common codes are P0300 (random misfire) or P0301-P0310, where the last digit points to the specific misfiring cylinder.
- Rough Idle: The engine may shake or vibrate noticeably when you're stopped at a light.
- Poor Acceleration: The van may feel sluggish, weak, or hesitant when you press the gas pedal.
- Reduced Fuel Economy: When a cylinder isn't firing, unburned fuel is wasted, and your gas mileage will drop.
- Engine Stalling: In severe cases, a bad coil can cause the engine to stall, especially when idling.
Important Note on Part Numbers
Ford used different ignition coils over the years, identified by the color of the boot. Coils with black boots (like DG511) are for earlier models, while coils with brown boots (like DG521) are for later models. Always verify the correct part for your specific year and engine to avoid ordering the wrong one.
Choosing the Right Aftermarket Coils
You don't have to buy expensive OEM parts from the dealer. Quality aftermarket brands offer excellent performance, often at a much better price. Here’s a breakdown of the brands available in our inventory:

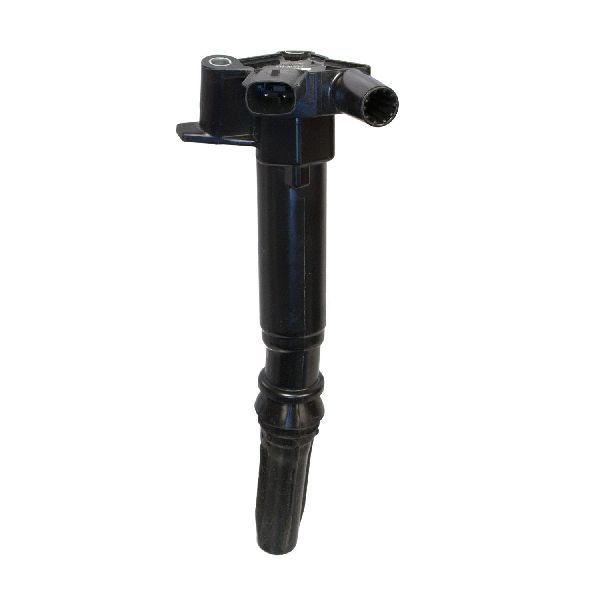

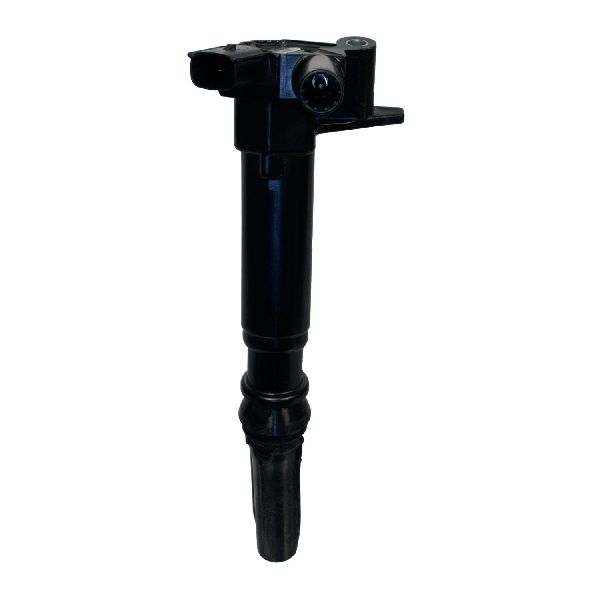

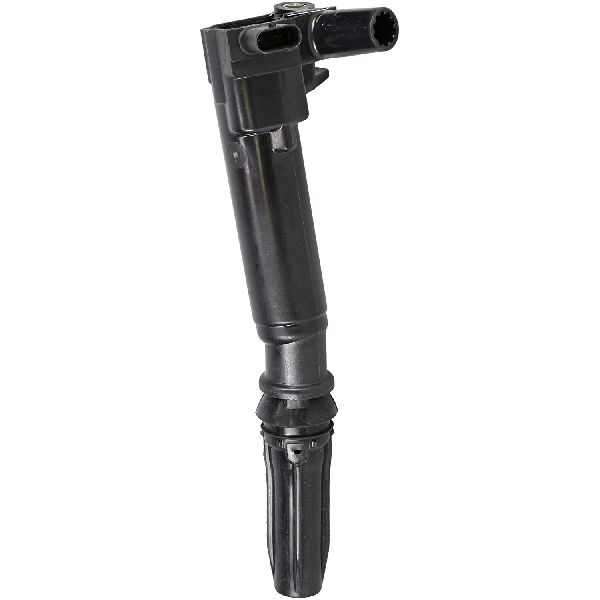

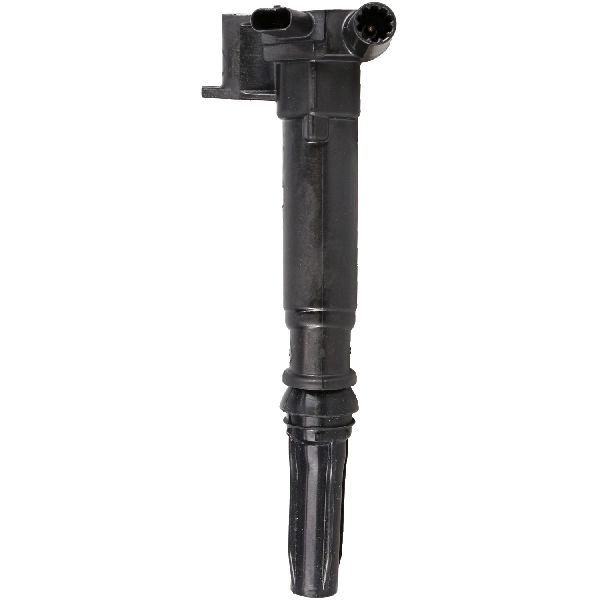

- Denso: Denso is a well-respected brand and often the original equipment manufacturer (OEM) for many car parts. Choosing Denso is like getting dealer quality without the dealer price. They are a top-tier, reliable choice for a direct replacement.
- MSD: Known for performance, MSD Blaster coils are often considered an upgrade. They are designed to provide a stronger spark, which can lead to a smoother idle and better throttle response. They are a great choice for owners looking for a potential performance boost.
- Accel: Accel is a popular aftermarket performance brand. They claim their coils can provide 10-15% more energy than stock coils, potentially improving horsepower and torque. Reviews are generally positive, with users noting a smoother idle.

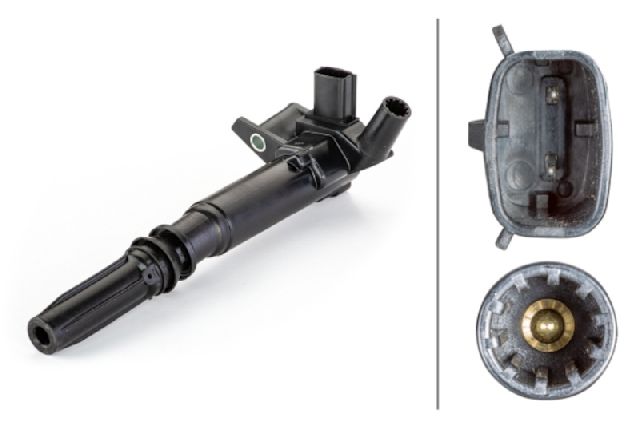

- Hella: Hella is a large, established manufacturer of automotive parts. While not specifically a performance brand like MSD or Accel, they are known for producing reliable, quality components that meet or exceed OEM standards.
Pro Tip: Replace One or All?
If one coil fails on a higher-mileage van, the others are likely not far behind. To save yourself future headaches and repeated labor, it's often best to replace all the coils at once. Many brands sell complete sets of 8 (for the V8) or 10 (for the V10) at a discounted price.
Cost to Replace Ignition Coils on a Ford E-350
| Part / Service | Estimated Cost |
|---|---|
| Single Aftermarket Ignition Coil | $39 - $149 |
| Set of 8-10 Aftermarket Coils | $150 - $600+ |
| Shop Labor (per coil) | $70 - $103 |
| Total Professional Replacement (Single Coil) | $168 - $233 |
Frequently Asked Questions
Is it hard to replace the ignition coils on an E-350 van?
No, it's a relatively easy DIY job. The coils are located on top of the engine. On a van, you'll need to remove the engine cover (doghouse) from inside the cabin for access. 🎬 Check out these expert tips for accessing and changing van coils. Each coil is held on by a single 7mm or 8mm bolt. The rearmost coils can be tricky to reach, but the job requires only basic hand tools.
🎬 Watch this step-by-step guide for replacing coils on the V8 engine.Should I replace the spark plugs at the same time?
Yes, it is highly recommended. The coils have to be removed to access the spark plugs anyway. Old spark plugs can strain new ignition coils, causing them to fail prematurely. Replacing them together ensures a complete and long-lasting repair.
🎬 See how to replace both spark plugs and coils on V10 models.Are there any recalls for E-350 ignition coils?
There are no specific recalls for ignition coils on the 2010-2019 Ford E-350 Super Duty. Coils are considered a normal wear-and-tear item. However, Ford has issued Technical Service Bulletins (TSBs) for coil issues on other models, which sometimes involve inspecting coils for heat damage.
What is dielectric grease and do I need it?
Dielectric grease is a non-conductive silicone compound applied to the inside of the ignition coil boot before installing it on the spark plug. It helps prevent moisture from getting in, stops the boot from getting stuck to the plug, and ensures a good seal. Using it is a crucial step for a proper installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3W7Z12029AA 8W7Z12029A DG508 FD503 DG511 DG521
Coil-on-Plug (COP) design, 2-pin connector, 12V operation. Specific part number (e.g., DG511 vs DG521) depends on engine and model year, affecting the length and shape of the spark plug boot.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
