Ford Escape Fuel Pump Driver Module Guide (2010-2019)
Having trouble with your Ford Escape stalling or not starting? The fuel pump driver module is a likely culprit.
- For 2010-2012 Escapes, buy an aftermarket module with updated mounting hardware (standoffs) to prevent corrosion, which is the #1 cause of failure.
- For 2013-2019 Escapes, the module is inside the cabin, so a standard aftermarket replacement is sufficient as corrosion is not an issue.
- Symptoms strongly mimic a bad fuel pump; replacing the easier and cheaper FPDM first can save you significant time and money.
- This is a simple replacement suitable for most DIYers, typically taking less than an hour.
Understanding the Fuel Pump Driver Module in Your Escape
If your Ford Escape is having trouble starting, stalling unexpectedly, or hesitating during acceleration, the Fuel Pump Driver Module (FPDM) is a common part to check. This module regulates power to the fuel pump, and when it fails, it can mimic the symptoms of a bad fuel pump. For the 2010-2019 model years, the location and common cause of failure are very different depending on your vehicle's generation.
Generation Differences: 2010-2012 vs. 2013-2019
It is critical to know which generation of Escape you own, as the part's location and the reason it fails are distinct.
- 2010-2012 Ford Escape (Second Generation): The FPDM is mounted externally on the vehicle's frame, near the rear axle and behind the tire. This location exposes it to water, dirt, and road salt. The original module has an aluminum body bolted directly to the steel frame, which causes severe galvanic corrosion, cracking the housing and destroying the electronics inside. This is the most common reason for failure on these model years.
- 2013-2019 Ford Escape (Third Generation): Ford relocated the module to a protected location inside the vehicle. You will find it under the rear passenger-side seat, beneath the carpet. 🎬 See how to access and replace the module on 2013-2019 Escapes. Because it is no longer exposed to the elements, corrosion is not a common failure point. Failures on this generation are typically due to internal electronic issues.
Symptoms of a Failing FPDM
- Crank, No Start: The engine turns over but will not fire up because it isn't receiving fuel.
- Engine Stalling: The engine may stall suddenly while driving, which can be very dangerous.
- Hesitation and Power Loss: The vehicle may hesitate, sputter, or feel weak when you press the gas pedal.
- Rough Idle: The engine may run poorly or shake while stopped.
- Check Engine Light: A failure will almost always trigger the check engine light with codes like P1233, P1237, or P025A.
Choosing the Right Aftermarket Part
When replacing the FPDM, the aftermarket often provides superior solutions, especially for the 2010-2012 models.
Pro Tip for 2010-2012 Escape Owners
Do not buy a standard replacement module. Look specifically for an aftermarket "OE FIX" version, such as the one from Dorman. These improved modules feature an epoxy-coated case to resist corrosion and, most importantly, come with new bolts and rubber standoffs. This hardware creates a gap between the module and the frame, preventing the corrosion that destroyed the original part. This is a permanent solution to the design flaw.
🎬 Learn why these re-engineered aftermarket modules are more reliable.Aftermarket Brand Tiers
- Tier 1 (Best Choice): Dorman

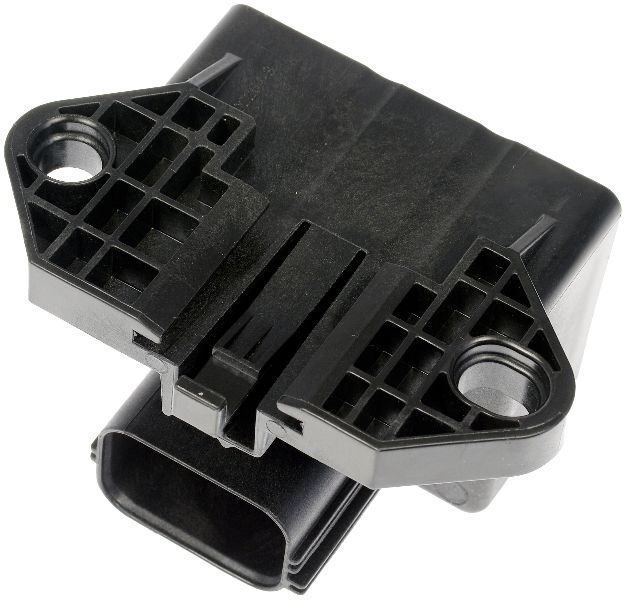

Dorman is well-known for re-engineering parts to fix original design flaws. Their OE FIX module for the 2010-2012 Escape is the best choice for a long-term repair. For 2013-2019 models, their standard replacement is a reliable, direct-fit part. - Tier 2 (Good Choice): Standard Ignition (SMP), Spectra

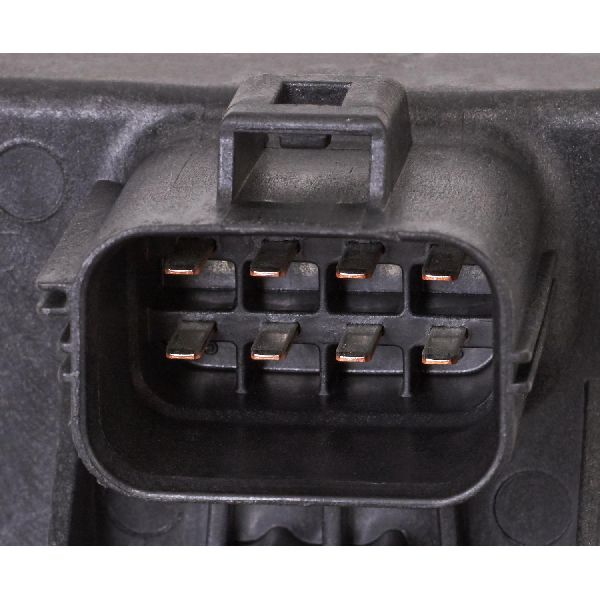

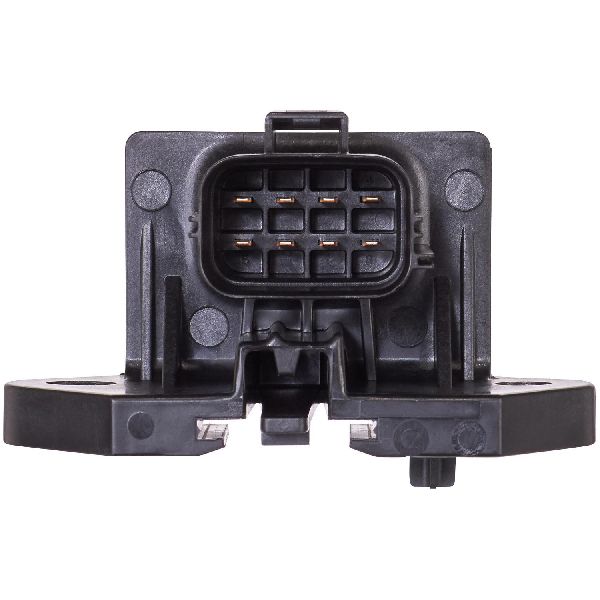

Both Standard Motor Products and Spectra are reputable brands that produce quality direct-fit replacement parts that meet or exceed original specifications. For the 2013-2019 Escape where the module is protected indoors, these are excellent and cost-effective options. They are also a suitable choice for the 2010-2012 models if an improved design like Dorman's is not available.
Cost to Replace Ford Escape Fuel Pump Driver Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $46.95 - $131.33 |
| Shop Labor | $60 - $120 |
| Total Estimated Cost | $107 - $251 |
Frequently Asked Questions
Can I replace the FPDM myself?
Yes, this is a very DIY-friendly job for both generations. For 2013-2019 models, you just need to remove some interior trim and unbolt two 10mm nuts. For 2010-2012 models, the biggest challenge is often dealing with the rusted bolts holding the old module on. Otherwise, it is a simple unbolt-and-replace job.
🎬 Watch this step-by-step replacement guide for 2010-2012 models.Is there a recall on the Fuel Pump Driver Module?
No, there are no specific recalls for the Fuel Pump Driver Module on the 2010-2019 Ford Escape. There have been other fuel system recalls for this vehicle, such as for a cracked fuel delivery module flange on 2010-2012 models or a split fuel line on 2013 models, but these do not cover the electronic FPDM.
Should I replace the fuel pump at the same time?
Not necessarily. The FPDM is a common failure point and is much easier and cheaper to replace than the in-tank fuel pump. Because the symptoms are so similar, it is wise to diagnose or replace the FPDM first before attempting a fuel pump replacement.
What tools do I need for the replacement?
For 2013-2019 models, you'll need basic hand tools, including a socket to remove 10mm nuts. For 2010-2012 models, you may need a T30 Torx bit for the bolts, along with potentially a pry bar and penetrating oil if the old module is heavily corroded.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5L8A-9D370-AA 4L8A-9D370-AA BU5A-9D370-D BU5Z-9D370-B
Controls voltage to the in-tank fuel pump based on PCM commands. For 2010-2012 models, the original has an aluminum housing prone to corrosion. For 2013-2019 models, the module is plastic-housed and located inside the vehicle.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
