Ford Escape Engine Oil Pressure Switch Guide for 2010-2021 Models
Is your oil light on or flickering? This guide covers the common causes and replacement options for your Escape's oil pressure switch.
- A flickering or illuminated oil light is a critical warning; always check your oil level immediately.
- The location and replacement difficulty vary significantly by engine type across the 2010-2021 model years.
- A faulty switch can leak oil externally or fail internally, giving false warnings.
- Before replacing the switch, consider having a mechanic test the actual oil pressure to rule out a serious engine problem.
Understanding Engine Oil Pressure Switch Failures in Your Escape

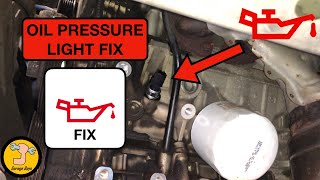

A faulty oil pressure switch can cause significant stress, but understanding the symptoms can help you diagnose the problem correctly. The most common sign of failure is an oil pressure light that flickers, comes on intermittently, or stays on even when the oil level is correct. You might notice the light only comes on at idle when the engine RPMs are low and goes away when you accelerate. 🎬 Learn how to fix a flickering oil pressure light. Another clear symptom is an oil leak from the switch itself. Over time, the internal seals can fail, allowing oil to seep through the sensor's body or electrical connector.
Don't Ignore the Oil Light
Never assume the oil light is just a bad sensor. An illuminated oil pressure light can indicate dangerously low oil pressure, which can destroy an engine in minutes. Always check your oil level first. If the level is good but the light is on, it's best to have the actual oil pressure tested with a mechanical gauge to rule out a more serious internal engine problem before replacing the switch.
Choosing the Right Aftermarket Switch
When replacing the oil pressure switch, you have several options ranging from OEM to various aftermarket brands. Here’s a breakdown to help you choose:
- Motorcraft: This is Ford's official parts brand and the original equipment (OE) manufacturer. It offers a direct-fit replacement with guaranteed compatibility and quality, serving as the benchmark for performance. If you want to maintain original factory performance, Motorcraft is the safest choice.
- Premium Aftermarket (e.g., Standard Ignition, Hella): Brands like Standard Motor Products (SMP) and Hella are well-regarded in the industry. They often produce parts that meet or exceed OEM specifications. These are a solid choice for a quality repair without the full cost of an OEM part.
- Standard Aftermarket (e.g., Global Parts, True Tech, Rostra): These brands offer a cost-effective solution for repairs. While they are more budget-friendly, quality can sometimes be inconsistent compared to premium brands. They can be a good option for older, higher-mileage vehicles or when budget is the primary concern.
A Note on Vehicle Generations
The 2010-2021 Ford Escape covers three distinct generations. The 2010-2012 models are the second generation, 2013-2019 is the third, and 2020-2021 begins the fourth. Different engines were used across these years (e.g., 3.0L V6, 2.5L I4, and various EcoBoost engines like the 1.5L, 1.6L, and 2.0L). Always confirm the part fits your specific year and engine, as the switch location and specifications can vary.
Known Issues, Recalls, and TSBs
While there are no direct recalls for the oil pressure switch itself, several recalls for the 2020-2023 Escape models with 1.5L and 2.5L Hybrid engines involve issues that can lead to a loss of oil pressure and trigger the warning light. These include recalls for potential engine failure, oil leaks from the separator, or issues with the oil pump belt. Additionally, Ford issued a Technical Service Bulletin (TSB) for some 2020-2021 Escapes with the 1.5L engine that may show a low oil pressure warning and log the code P0524.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on my Ford Escape?

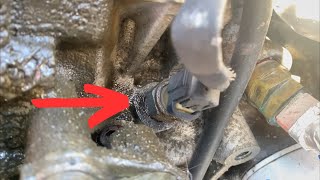

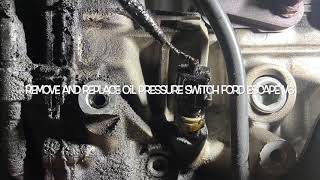

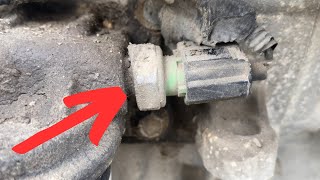

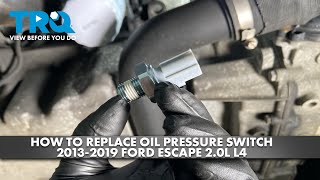

The location varies by engine. On the 2.0L EcoBoost (2013-2019), it's near the oil filter at the bottom front of the engine. 🎬 Watch how to locate and replace the 2.0L EcoBoost switch. For the 3.0L V6 (found in earlier models like the 2010-2012), it's often located behind the A/C compressor, which may need to be moved for access. 🎬 See the 3.0L V6 sensor location and replacement process. Always consult a repair manual for your specific engine.
Can I replace the oil pressure switch myself?
Yes, for many DIYers, this is a manageable job. If the switch is easily accessible, like on the 2.0L engine, the replacement is straightforward. However, on engines like the 3.0L V6 where the A/C compressor must be unbolted and moved, the difficulty increases significantly. You'll need a special deep socket or wrench (often 21mm) to remove the sensor.
What happens if I ignore a bad oil pressure switch?
Ignoring it is risky. If the switch is faulty and not signaling a real problem, the main issue is a persistent, annoying warning light. However, if the switch has failed and is unable to warn you of a genuine low oil pressure event, you could suffer catastrophic engine failure without any warning.
Is an aftermarket switch as good as the Ford (Motorcraft) part?
Premium aftermarket brands can be just as reliable as the OEM Motorcraft part. However, for critical sensors like this, many mechanics recommend sticking with Motorcraft or a top-tier aftermarket brand to avoid premature failure and ensure accurate readings. Budget parts can be a gamble on quality and longevity.
Helpful Videos
Technical Specifications

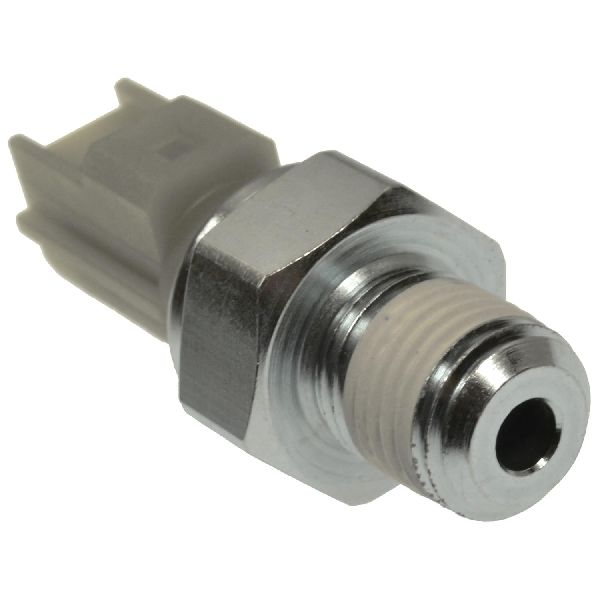

OEM Part Numbers: BE8Z-9278-A 1L5Z9278AA E4ZZ9278A 1F2118501
Socket size for removal is typically 21mm. Some sensors are simple on/off switches, while others are variable pressure transducers. Torque specification for a 2.0L model is approximately 133 inch-pounds.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
