A/C Compressor Guide for the 2010-2021 Volvo XC60
Is your Volvo XC60's air conditioning not blowing cold? This guide covers common A/C compressor problems and how to choose the right replacement part.
- A failing A/C compressor is a common issue in 2010-2021 Volvo XC60s, with symptoms like warm air or intermittent cooling.
- The compressor clutch is a frequent point of failure; it may stop engaging when hot due to a worn, excessive gap.
- Choose high-quality aftermarket brands like Denso or Valeo, which are often the original equipment suppliers for Volvo.
- Always replace the receiver/drier and expansion valve when installing a new compressor to prevent system contamination and ensure warranty coverage.
Is Your Volvo XC60 A/C Acting Up?
If the air conditioning in your 2010-2021 Volvo XC60 is blowing warm air or not working at all, a failing A/C compressor is a likely culprit. While other issues like refrigerant leaks or a dirty cabin air filter can cause similar problems, compressor failure is a common issue for these vehicles. Understanding the symptoms and your replacement options can help you get your A/C running cold again.
Common Symptoms of a Failing A/C Compressor
Watch for these signs that your XC60's A/C compressor may be going bad:
- Warm Air From Vents: The most obvious sign is air that isn't cold, even when the A/C is on full blast.
- Intermittent Cooling: The A/C might work for a few minutes and then stop blowing cold, especially on long drives or when the engine is hot. This is often related to the compressor's clutch.
- Strange Noises: Loud grinding or clicking sounds when the A/C is turned on can indicate a failing compressor bearing or clutch.
- Compressor Clutch Not Engaging: You can visually check if the compressor clutch is working. When you turn the A/C on, the outer plate of the pulley should engage and spin with the pulley itself. If it doesn't move, there's a problem.
A Common Point of Failure: The Compressor Clutch
Many XC60 owners experience issues not with the entire compressor, but specifically with the clutch. Over time, the gap in the clutch can wear and become too large for the electromagnet to engage it, especially when hot. Sometimes, this can be fixed by removing small metal shims to reduce the gap, but if the clutch is too worn, the entire compressor assembly needs to be replaced.
🎬 Watch: How to fix clutch issues by adjusting the shims.Choosing the Right Aftermarket A/C Compressor
When replacing the A/C compressor on your XC60, you don't have to buy an expensive OEM part from the dealer. Quality aftermarket brands offer a reliable and more affordable solution. Volvo has used compressors from both Denso and Valeo as original equipment, making these excellent choices for aftermarket replacement.
Brand Quality Tiers
- Top Tier (OEM Quality): Denso and Valeo are often the original equipment manufacturers for Volvo. Choosing one of these brands ensures a part built to the same standards as the one your car came with. They are known for durability and quiet operation. Mahle is another world-renowned brand that produces top-quality compressors designed for reliability.
- Mid Tier (Reliable Aftermarket): Brands like Nissens and Four Seasons offer a good balance of quality and value. Nissens specializes in cooling system components and produces high-quality compressors that are easy to install.
- Economy Tier: Brands like Global Parts (gpd) can be a good choice for an immediate, budget-friendly fix. However, for long-term reliability on a premium vehicle like an XC60, investing in a top or mid-tier brand is often a smarter buy.
Pro Tip: Replace More Than Just the Compressor
When an A/C compressor fails, it can send metal debris throughout the system. To prevent this from damaging your new compressor, it is critical to also replace the receiver/drier (or accumulator) and the expansion valve. You should also have the system professionally flushed before installing the new parts. Many manufacturers require these steps to validate the part's warranty.
Cost of Replacing a Volvo XC60 A/C Compressor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $262 - $855 |
| Shop Labor & System Recharge | $350 - $600+ |
| Total Estimated Cost | $612 - $1455+ |
Frequently Asked Questions
Were there any recalls for the 2010-2021 XC60 A/C compressor?
No, searches of the NHTSA database did not find any specific recalls for the A/C compressor on the 2010-2021 Volvo XC60. However, a recall for 2016-2017 models (R89707) addressed an incorrectly installed A/C drain hose that could leak water into the cabin and potentially affect electrical systems.
Is there a Technical Service Bulletin (TSB) for this issue?
While no TSBs directly address widespread compressor failure, TSB 32877.1.0 was issued for 2018+ XC60 hybrid models. It corrects information in the service manual regarding the refilling of compressor oil during replacement, stating that no oil should be added to the new component. Another TSB for the 2024 model mentions that for an evaporator repair, an additional resistor cable may be needed.
Can I replace the A/C compressor myself? 🎬 Watch this step-by-step walkthrough of a Volvo compressor replacement.
This is an advanced DIY job. While the physical replacement is possible for a skilled home mechanic, the A/C system's refrigerant must be legally and safely evacuated by a certified shop with a special machine before you begin work. The system must also be vacuumed and recharged by a professional after the new compressor is installed. Failure to do this properly will result in poor performance and can damage the new parts.
Should I buy a new or remanufactured compressor?
For a critical component like the A/C compressor, a new unit from a quality brand like Denso, Valeo, or Nissens is generally recommended over a remanufactured one. While remanufactured parts can be cheaper, their reliability can be inconsistent. Given the high cost of labor for this repair, investing in a new part provides better peace of mind.
Helpful Videos

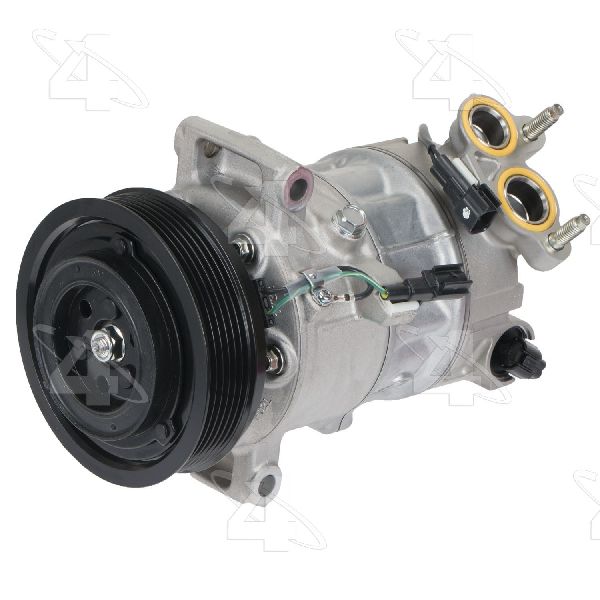

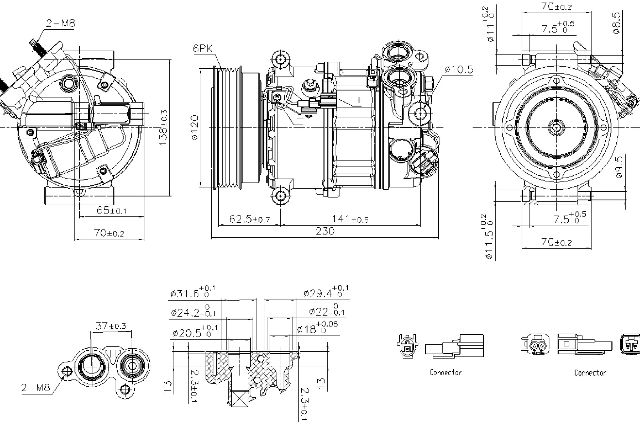

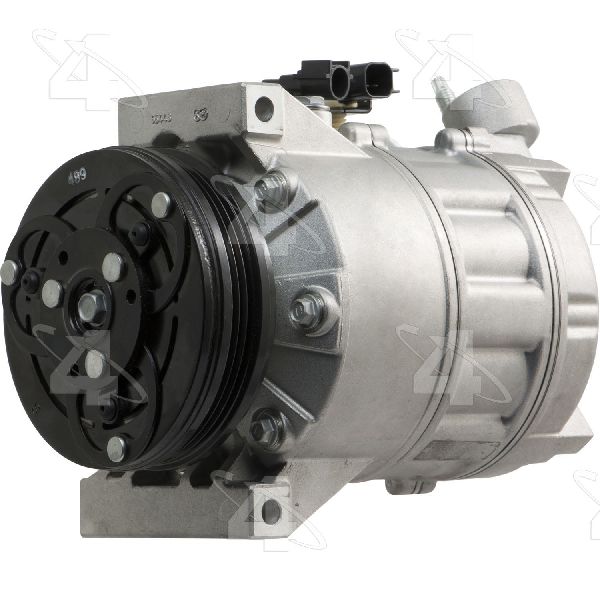

Technical Specifications
OEM Part Numbers: 36011354 36050841 36010449 36011277 36051067 36013037 36013036 36011415
Compressors for the XC60 are typically variable displacement types. They come with a clutch and a 6-groove pulley. Ensure the part number matches your specific year and engine, as there are several variations across this model range.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
