Ford Transit Connect 2010-2022 Engine Oil Pressure Switch: A Complete Guide
Is your oil light flickering? Here's what you need to know about your Transit Connect's oil pressure switch.
- An illuminated oil pressure light is a critical warning; always stop and check your oil level immediately.
- Be aware of recall 23S64/23V905 for the oil pump belt, which also causes oil pressure loss but is a separate issue from the switch.
- The oil pressure switch is an inexpensive part and a simple DIY replacement for most owners, typically requiring a 24mm socket.
- For peace of mind, choose the OEM Motorcraft part or a reputable aftermarket brand like Hella or Standard Ignition.
Is Your Oil Light On? What It Means
Seeing the red oil pressure light on your Transit Connect's dashboard is a serious warning. It means one of two things: either the sensor that detects oil pressure has failed, or your engine has dangerously low oil pressure. A failing switch can give false warnings, like flickering or staying on constantly, even when the oil level and pressure are fine. It can also fail by not turning on when there is a real problem. Because it's impossible to know without testing, you should always stop the vehicle and check your oil level immediately.
Important Recall Information: Not The Switch
There is a major Ford recall (NHTSA 23V905 / Ford 23S64) for some Transit Connect models that can cause a sudden loss of engine oil pressure. This is caused by a faulty oil pump drive belt or tensioner, NOT the oil pressure switch. However, the symptom is the same: the oil pressure light will come on. If you experience a loss of oil pressure, it is critical to have a dealer check if your vehicle is affected by this recall, as the repair is free of charge.
Choosing the Right Aftermarket Oil Pressure Switch
When replacing your oil pressure switch, you have several options. While Motorcraft is the original factory part, many aftermarket brands offer excellent quality and value.
- OEM (Original Equipment Manufacturer): Motorcraft is the brand Ford uses in the factory. It's the benchmark for fit and performance. Choosing Motorcraft guarantees compatibility and is often the preferred choice for owners wanting to maintain original factory parts.
- Premium Aftermarket: Brands like Hella and Standard Ignition (SMP) are known for making high-quality components that often meet or exceed OEM standards. Hella is a well-respected German OE supplier for many European brands, and Standard Ignition has a long history in the aftermarket. These are a solid choice for a reliable, long-lasting repair.
- Standard Aftermarket: Brands like Rostra Powertrain and True Tech offer a dependable and affordable solution. They provide a good balance of quality and price for budget-conscious repairs.
How Much Does a Replacement Cost?
Replacing the oil pressure switch is one of the more affordable repairs you can make. The part itself is inexpensive, and labor is minimal due to its easy accessibility.
| Part Type | Price Range |
|---|---|
| New Aftermarket | $12.77 - $40.88 |
| New OEM (Motorcraft) | $30 - $60 |
| Shop Labor | $70 - $120 |
Pro Tip: An Easy DIY Job
For most Transit Connect models, the oil pressure switch is located on the engine block, often near the oil filter housing, making it easy to access from under the vehicle. The replacement involves unplugging the electrical connector, unscrewing the old switch (a 24mm socket is often required), and installing the new one. Because of its simplicity, this is a great job for a DIY mechanic to save on labor costs.

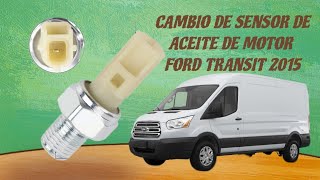

🎬 Watch this step-by-step walkthrough of a 2015 Transit sensor replacement.Frequently Asked Questions
Is a flickering oil light always a bad switch?
Not always. A flickering light can indicate a failing switch, a bad electrical connection, or, most seriously, oil pressure that is hovering right at the minimum safe level. Always check your engine oil level first. If the level is good, the next most likely cause is a faulty switch.
What happens if I ignore a bad oil pressure switch?
Ignoring the warning is risky. If the switch is bad and giving false alarms, it's an annoyance. But if the switch has failed to warn you of a real oil pressure problem, or if you're ignoring a real warning, you risk catastrophic engine damage that can cost thousands to repair.
Where is the oil pressure switch on my Transit Connect?
On most 2010-2022 Ford Transit Connects, the oil pressure switch is screwed into the engine block or the oil filter housing assembly. You will need to safely raise the vehicle and look in the area around the oil filter to locate it. It is a small sensor with a single electrical connector.
What is the P0520 trouble code?
The diagnostic trouble code (DTC) P0520 stands for "Engine Oil Pressure Sensor/Switch Circuit Malfunction." Your vehicle's computer will trigger this code and the Check Engine Light if it detects a problem with the signal from the oil pressure switch, such as an open or short circuit. This code points directly to a problem with the switch or its wiring.
🎬 See this video for a deeper look at diagnosing P0520 codes.Helpful Videos
Technical Specifications
OEM Part Numbers: SW6845 PS528
This is a normally-closed, single-pin pressure switch that triggers a warning light. It does not provide a variable pressure reading to a gauge.
