Replacing TPMS Sensors on a 2010-2024 Mercedes-Benz Sprinter 3500
Keep your Sprinter 3500's tire pressure system working correctly with the right aftermarket programmable sensors.
- Programmable aftermarket TPMS sensors require a special tool for programming, so installation is best left to a tire shop.
- Sensor batteries last about 5-10 years; if your van is in that age range and one fails, consider replacing all of them.
- Ensure the replacement sensor is the correct frequency (usually 433MHz for newer models, 315MHz for older ones) for your specific year.
- Sprinter 3500 dually models may not have a factory TPMS system, which would require a full aftermarket kit instead of just sensor replacement.
Understanding TPMS Failure on Your Sprinter 3500
The most common sign of a TPMS issue is the warning light on your dashboard. This light might stay on constantly or flash. A constant light usually means one or more tires have low pressure, while a flashing light often points to a problem with the system itself, like a dead sensor battery or a faulty sensor. The batteries inside TPMS sensors have a limited lifespan, typically lasting between 5 to 10 years, so failure is common on older vans. You might also get a specific message on your display like "Wheel Sensor Missing." Sometimes, a sensor can fail after a tire change if it's damaged by the tire shop.

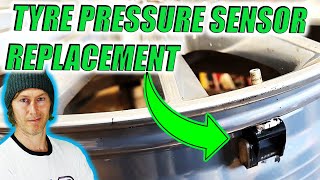

🎬 Watch a step-by-step guide on replacing a Mercedes wheel sensor.Choosing the Right Aftermarket TPMS Sensor
When replacing a TPMS sensor, you have a choice between Original Equipment (OEM) from Mercedes-Benz and aftermarket options. For the Sprinter 3500, high-quality aftermarket brands can offer the same performance as OEM for a lower price.
Programmable vs. Direct-Fit
The parts covered in this guide are programmable. This means they are universal sensors that must be programmed for your specific Sprinter model using a special TPMS tool. This tool clones the ID from your old sensor or creates a new one. While this offers flexibility, it adds a necessary step during installation. Direct-fit sensors come pre-programmed from the factory but may be less common or more expensive.
Aftermarket Brand Quality
For your Sprinter 3500, several reputable aftermarket brands are available:
- Schrader: Often an OEM supplier for many car manufacturers, Schrader is considered a top-tier choice. Their sensors are known for reliability and are often interchangeable with factory parts. Some forum users have successfully used Schrader retrofit kits, especially for dually models that may not have factory TPMS.
- Dorman: A well-known aftermarket brand that produces a wide range of parts. Dorman TPMS sensors are generally considered a reliable and cost-effective option, though some users across different vehicle forums report occasional programming difficulties.
- Standard Ignition (SMP): Another established brand offering quality replacement parts. Their sensors are a solid choice for replacing a failed OEM unit.
The key to a successful replacement is ensuring the sensor operates on the correct frequency for your van (typically 433MHz for most model years, but can be 315MHz on older models) and is programmed correctly.
A Note on Dually Models
Unlike the 2500 models, the Sprinter 3500 with dual rear wheels (dually) was not always equipped with a factory TPMS system from Mercedes-Benz in the US market. If your dually does not have a factory system, replacing sensors won't work. You would need a complete aftermarket retrofit kit, which includes its own display.
Cost of Replacing Sprinter 3500 TPMS Sensors
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor (Single) | $107+ |
| New Aftermarket Programmable Sensor (Single) | $4.43 - $82.74 |
| Shop Labor (Installation & Programming, per tire) | $50 - $150 |
Frequently Asked Questions (FAQ)
Do I need a special tool to install a programmable TPMS sensor?
Yes. Programmable sensors must be activated and programmed using a dedicated TPMS tool. This tool communicates with the sensor to load the correct protocol for your Sprinter. Most DIYers do not have this tool, so installation is typically done at a tire shop.
Can I replace just one failed sensor?
Yes, you can replace a single sensor. However, since the batteries in all sensors have a similar lifespan (5-10 years), it's often cost-effective to replace all of them at once, especially if you are already getting new tires. This saves you from paying for labor again when the next sensor fails.
What is a TPMS "relearn" procedure?
After a new sensor is installed, the van's computer needs to recognize it. For many Sprinter models, this is an "auto relearn" process where you simply drive the vehicle for about 10-20 minutes, and the system automatically detects the new sensor. Older models may require a manual reset using buttons on the steering wheel or dashboard.

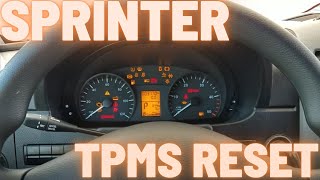

🎬 See how to perform a Mercedes Sprinter TPMS reset procedure.Why is my TPMS light still on after replacing the sensor?
This can happen for a few reasons. The new sensor may not have been programmed correctly, or it could be the wrong frequency for your vehicle (e.g., 315MHz vs 433MHz). There could also be an issue with the TPMS receiver or control module in the van, though this is less common. Always ensure the shop uses the correct sensor and programming procedure for your specific model year.
Helpful Videos
Technical Specifications
OEM Part Numbers: 000-905-72-05 A0009057205 000-905-00-30 A0009050030 A0009054104 A0009052102
Frequency: 433 MHz or 315 MHz (Varies by model year, 433MHz is most common for recent models). Valve Type: Metal (Clamp-in) or Rubber (Snap-in). Relearn Type: Auto Relearn (driving required).
