2011 Ram Dakota ABS Wheel Speed Sensor Replacement Guide
Diagnose and fix your ABS and Brake warning lights with the right replacement sensor for your truck.
- If your speedometer is also failing, the rear ABS sensor on the differential is the likely culprit.
- Replacement is a simple DIY job requiring basic tools, usually taking less than an hour.
- Quality aftermarket brands like Delphi, Standard Ignition, or Holstein offer reliable performance without the high OEM price tag.
- Be prepared for the old sensor to be stuck due to rust; use penetrating oil and clean the mounting hole before installing the new part.
Is a Bad ABS Sensor a Big Deal?
When an ABS sensor fails, your truck's main safety computer gets confusing signals. As a precaution, it will turn on the ABS and BRAKE warning lights and disable the anti-lock braking system. This means that in an emergency, your wheels can lock up and skid, just like on an older vehicle without ABS. While your regular brakes will still work, your stopping distance may be longer, and you could lose steering control during a panic stop. A bad rear sensor can also make your speedometer stop working, which is a safety issue on its own.
Choosing the Right Aftermarket ABS Sensor
For a vehicle like the 2011 Ram Dakota, a quality aftermarket ABS sensor is a smart and cost-effective choice. However, not all brands are created equal. They generally fall into three tiers:
- Premium Aftermarket (e.g., Delphi, Standard Ignition, NGK/NTK): These brands often supply the original parts to automakers. They are known for high-quality materials, precise engineering, and rigorous testing that ensures they perform just like the original part. They are the most reliable choice for a long-lasting repair.
- Standard Aftermarket (e.g., Dorman, Holstein, Walker Products): These are reputable brands that offer a good balance of quality and value. They provide broad coverage and often include necessary hardware. Brands like Holstein even offer a 3-year/36,000-mile warranty, giving you extra peace of mind.
- Economy Aftermarket (e.g., URO Parts, True Tech): These brands focus on being the lowest-cost option. While tempting, forum users frequently report issues with fit and a very short lifespan for budget electronic parts like sensors. They might be a temporary fix, but you risk having to do the job again soon.
Pro Tip: Check the Rear Sensor First
If your ABS light is on AND your speedometer is acting erratically or not working at all, the problem is almost certainly the single ABS sensor located on the rear differential. This is the most common failure point on these trucks.
Cost of Replacing a 2011 Ram Dakota ABS Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $21 - $87 |
| New OEM (Mopar) Sensor | $75 - $150 |
| Shop Labor | $100 - $250 |
| Total Professional Repair | $121 - $337 |
Cost estimates are based on national averages and may vary by location and specific part brand.
Frequently Asked Questions
Why are my ABS and BRAKE lights on at the same time?
This is the standard warning when the vehicle's computer detects a fault in the Anti-lock Braking System. A bad wheel speed sensor is one of the most common causes. Always check your brake fluid level first, as a low fluid level can also trigger these lights.
Can I replace just one ABS sensor?
Yes. You only need to replace the sensor that has failed. A proper diagnostic scan tool can tell you which specific sensor is sending a bad signal (e.g., "Left Front Wheel Speed Sensor Circuit Malfunction").
Is replacing the ABS sensor a DIY job?
Absolutely. For most home mechanics, this is a very straightforward job. The sensor is held in by a single bolt and an electrical connector. The biggest challenge can be rust, which may cause the old sensor to be stuck in its mounting hole, especially the rear sensor. A little penetrating oil and patience are key.
Are there any recalls for the 2011 Ram Dakota ABS sensor?
No, there are no specific recalls from the NHTSA for the ABS wheel speed sensors on the 2011 Ram Dakota. There was a major recall for Takata airbags that affected this model, but it is unrelated to the braking system.
Technical Specifications
OEM Part Numbers: 4779244AD 68231044AE

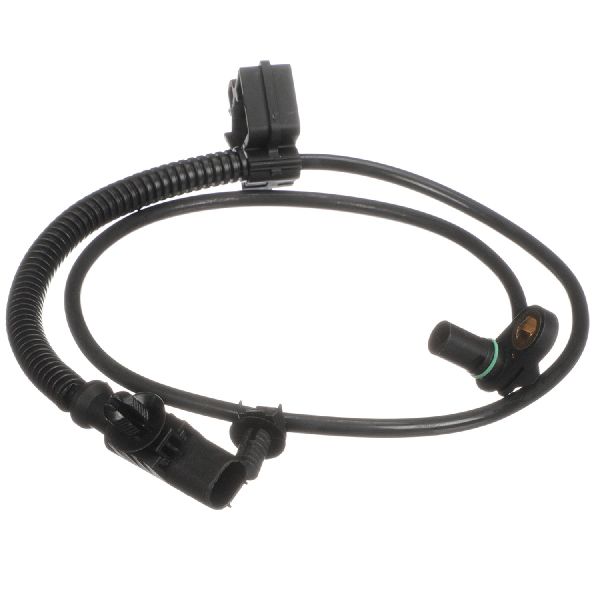

The 2011 Ram Dakota uses individual sensors for the front wheels and a single sensor mounted on the rear differential for the rear wheels. The front and rear sensors are not interchangeable.
