A Guide to the 2011-2014 Mazda 2 Brake Light Switch
Having brake light problems? Your brake light switch is a likely culprit, and this guide explains how to choose the right replacement.
- A failing brake light switch is a serious safety issue that should be fixed immediately.
- Symptoms include non-working brake lights, lights stuck on, or being unable to shift out of park.
- Replacement is a simple, low-cost DIY job that usually takes less than an hour.
- Check fuses and bulbs before assuming the switch is the problem.
Is Your Mazda 2 Brake Light Switch Failing?
A faulty brake light switch is a common issue that can compromise your safety on the road. Because it controls your brake lights, a failure means drivers behind you may not know you're stopping. Symptoms often start small, like intermittent issues, but can quickly become a constant problem. A Reddit user with a 2013 Mazda 2 noted their brake lights worked intermittently and a spanner icon appeared on the dash, indicating a brake switch malfunction. Recognizing the signs early can prevent accidents and legal fines.
Key Symptoms of a Bad Brake Light Switch
- Brake lights don't work at all: The most common and dangerous symptom. If all your brake lights fail at once, the switch is a primary suspect after checking fuses. 🎬 Watch: How to test your Mazda brake light switch
- Brake lights stay on: An internally shorted switch can cause the brake lights to remain on, draining your battery and confusing other drivers.
- Can't shift out of Park: The switch is required to release the automatic transmission's shift interlock.
- Cruise control won't engage or disengages randomly: The system relies on the brake switch to know when to turn off.
- ABS or Traction Control warning lights: A faulty switch can send incorrect signals to the ABS and traction control modules, causing warning lights to appear on your dash.
Choosing the Right Aftermarket Brake Light Switch
When replacing the brake light switch on your Mazda 2, you have a choice between Original Equipment (OEM) and aftermarket parts. For a component this critical, quality matters. Aftermarket parts are not all created equal, but many offer excellent performance and value. The OEM part number for many Mazda models, including the 2, is BN7N-66-490A.
Here's a breakdown of the available brands:

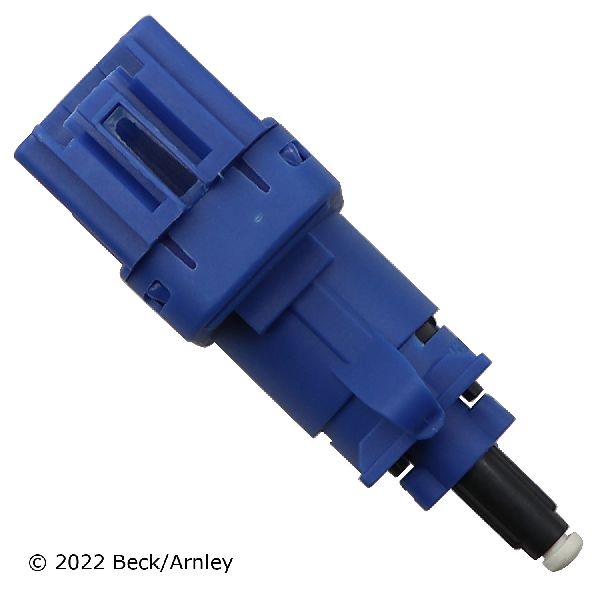

- Premium Aftermarket (Closer to OEM): Brands like Hella, Vemo, and Beck Arnley often have a strong reputation for producing parts that meet or exceed original specifications. Beck Arnley, for example, is a well-known brand in the aftermarket space. These are a good choice if you want peace of mind and long-term reliability without paying the full dealership price.
- Quality Standard Aftermarket: Standard Ignition (Standard Motor Products) and Holstein are reputable manufacturers that produce a wide range of reliable electronic components. They offer a solid balance of quality and cost, making them a popular choice for DIY repairs.

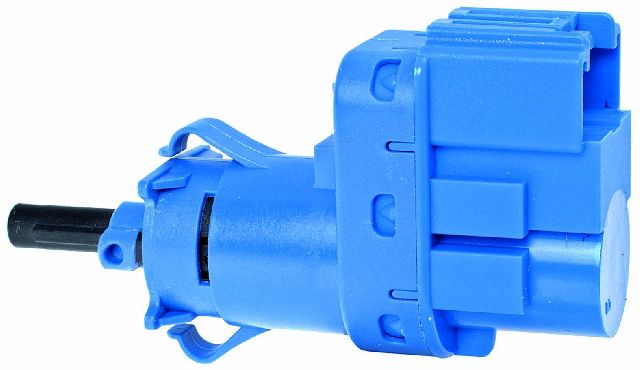

- Value-Oriented Brands: Brands like Facet, True Tech, VNE, and Rostra Powertrain provide a more budget-friendly option. While they can be a good choice for a quick fix, their long-term durability may not match that of the premium brands. Always check the warranty they offer.
Pro Tip: Before replacing the switch, always check the simple things first. Make sure the brake light fuse isn't blown and that the bulbs themselves are good. Sometimes, the problem is a simple fuse or bulb, not the switch itself.
Cost of Replacing a Mazda 2 Brake Light Switch
The cost to replace the brake light switch is relatively low, especially if you do it yourself. The part itself is inexpensive, and the job is straightforward for most DIY mechanics.

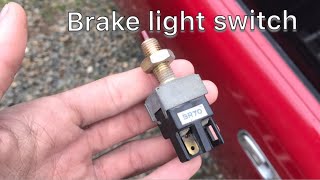

🎬 See this step-by-step guide on how to change the switch| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $15 - $77 |
| Shop Labor | $50 - $110 |
| Total Professional Replacement | $65 - $187 |
Frequently Asked Questions
Where is the brake light switch located on a 2011-2014 Mazda 2?
The brake light switch is located in the driver's footwell, mounted to a bracket near the top of the brake pedal arm. You will need to look up under the dashboard to see it.
Is it difficult to replace the brake light switch myself?
No, this is considered a fairly easy DIY job. It typically takes less than an hour. The process involves disconnecting the battery, unplugging the electrical connector, and then removing the switch from its bracket, which is often done by twisting it or removing a locknut.
🎬 Important: Avoid this common $1000 installation mistakeAre there any recalls for the Mazda 2 brake light switch?
Searches on the NHTSA database did not show any specific recalls for the brake light switch on the 2011-2014 Mazda 2. However, there was a TSB (Technical Service Bulletin) for other Mazda models regarding aftermarket devices causing various electrical issues, which reinforces the importance of using quality parts.
What happens if I don't replace a bad brake light switch?
Driving with a faulty brake light switch is dangerous. If your brake lights don't work, you are at a significantly higher risk of being rear-ended. If they are stuck on, you can drain your battery. It is a safety issue that should be addressed immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: BN7N-66-490A BN7N66490
Typically a 4-pin, plunger-style switch located on the brake pedal assembly.
