A Ford Owner's Guide to 2011-2015 F-150 Engine Timing Chain Kits

Don't ignore that startup rattle—here's what you need to know about replacing your F-150's timing chain and components.

5 minutes to read 2011-2015 Ford F-150
Difficulty
5/5
Est. Time
12 hrs
DIY Doable?
🔧 Shop
Shop Labor
$1500-$3000
⚠️ Drivable, but... — You can drive for a short time, but you risk the chain jumping time or breaking, which can cause catastrophic engine failure.
Key Takeaways
  • The most common issue is a startup rattle on the 3.5L EcoBoost, caused by a stretched timing chain.
  • This is a complex, 9+ hour job; using high-quality parts is essential to avoid repeating the labor.
  • For the 3.5L EcoBoost, replacing all four VCT phasers along with the chain, guides, and tensioners is mandatory for a lasting repair.
  • There is no safety recall for this issue, but Ford has issued Technical Service Bulletins (TSBs) to address the problem.
The engine timing chain kit is critical to your F-150's performance. The timing chain synchronizes the rotation of the crankshaft and the camshafts. This ensures that the engine's valves open and close at the correct times. In the 3.5L EcoBoost and 5.0L Coyote engines, this precise timing is essential for performance, fuel efficiency, and preventing catastrophic engine damage. A complete kit includes not just the chain(s), but also vital components like tensioners, guides, and often cam phasers (VCT sprockets), which work together to keep the engine running smoothly.

Is Your F-150's Timing Chain Failing?

Comparison showing a new, tight timing chain versus a stretched, worn timing chain with slack.
A side-by-side comparison of a healthy, properly tensioned timing chain (left) and a stretched chain (right) that causes the common startup rattle.

If you own a 2011-2015 F-150, especially one with the 3.5L EcoBoost engine, you may be familiar with the timing chain issues that can affect these trucks. While the 5.0L V8 can also experience problems, the most documented issue is the timing chain stretch on the 3.5L EcoBoost. This guide will walk you through the symptoms, the necessary parts, and how to choose the right aftermarket kit for the job.

Known Issues: The 3.5L EcoBoost Startup Rattle

The most common problem is a loud rattling or ticking noise coming from the front of the engine when you first start the truck, especially after it has been sitting for several hours (a "cold soak"). 🎬 Watch: Hear what the 3.5L EcoBoost startup rattle sounds like. This noise, which typically lasts for 2-5 seconds, is a classic symptom of a stretched primary timing chain. Ford acknowledged this issue and released Technical Service Bulletins (TSBs), including 15-0131 and 16-0027, to address it. The TSBs indicate that worn VCT phasers (cam phasers) can contribute to the chain stretching, making their replacement a crucial part of the repair. Early repairs that only replaced the chain often resulted in the noise returning.

No Official Recall: While this is a widely recognized problem, Ford has not issued a safety recall for the timing chain on these vehicles. The repairs are covered under TSBs, which means they are typically only covered by the manufacturer if the vehicle is still within its powertrain warranty period.

Choosing the Right Aftermarket Timing Kit

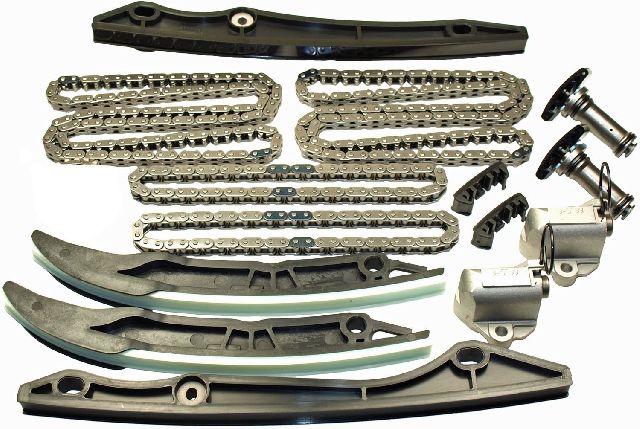

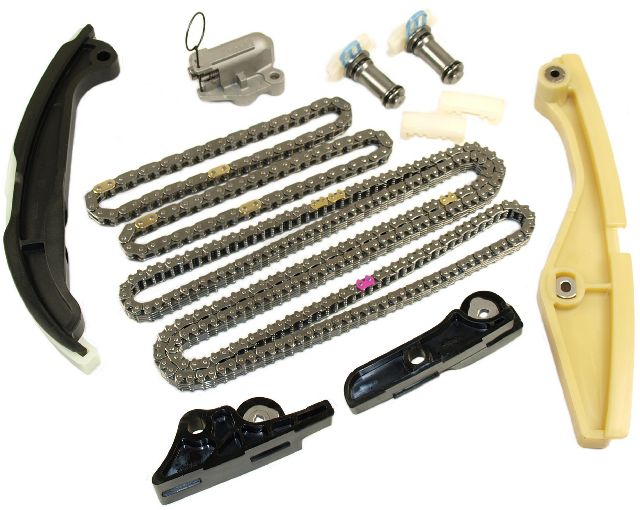

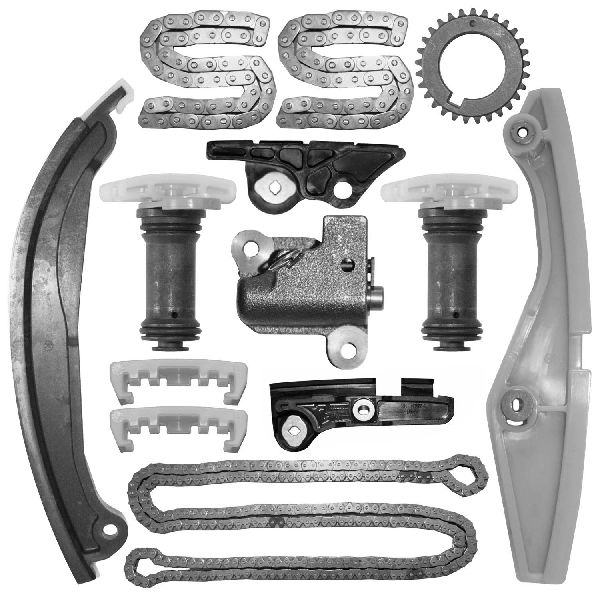

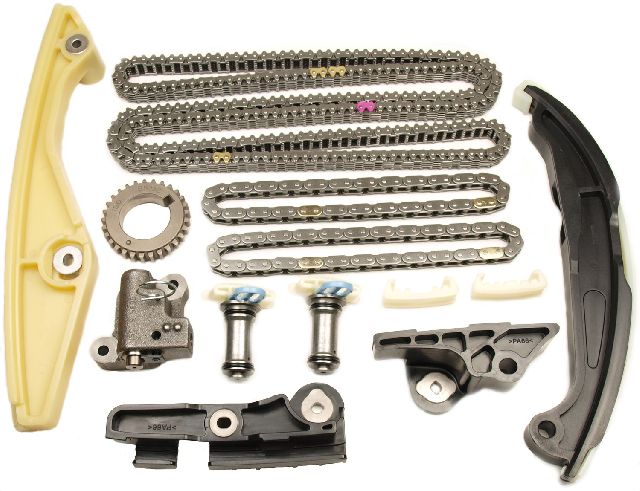

A complete premium aftermarket timing chain kit including chains, phasers, and tensioners.
Choosing a premium-tier kit from reputable brands like Gates or INA ensures you receive OEM-equivalent components for this labor-intensive repair.
Close-up of new VCT cam phasers for a Ford 3.5L EcoBoost engine.
Ford's TSBs emphasize that replacing all four VCT phasers is critical to preventing the timing rattle from returning shortly after the repair.

Since this is a labor-intensive job (9+ hours), you don't want to do it twice. Choosing a quality replacement kit is the most important decision you'll make. Using cheap, low-quality parts is a major risk that can lead to premature failure and catastrophic engine damage. Here’s a breakdown of the available brand tiers.

Brand Quality Tiers

  • Premium Brands (OEM-Equivalent Quality): Gates, INA
    These brands are often original equipment (OE) suppliers to many automakers. INA is well-regarded for the quality of its tensioners and bearings. Gates is a long-standing, reputable name in the industry, though it's wise to ensure you're getting a complete kit with high-quality tensioners and guides, not just the chain. For a critical job like this, these brands offer a balance of quality and value.
  • Mid-Grade Brands: Cloyes
    Cloyes is a well-known aftermarket brand. However, owner experiences are mixed. While some have used their kits without issue, others report premature failures of guides or tensioners, leading to the recommendation to stick with OEM parts for this specific repair. If considering Cloyes, many mechanics suggest pairing their chains and guides with genuine Ford/Motorcraft phasers and tensioners.
  • Budget Brands: Skyward & Other Unknowns
    There is little to no specific information available for the Skyward brand. It likely falls into the budget or private-label category. For a repair this critical and labor-intensive, using a budget kit with unverified quality is not recommended. The risk of a component failing and forcing you to pay for the labor all over again (or replace the engine) is too high.
Pro Tip: Always Replace the VCT Phasers on the 3.5L EcoBoost. Ford's own TSBs state that the VCT phasers should be replaced along with the chain, guides, and tensioners. Failing to do so is a common cause of the problem returning. Ensure the kit you buy includes all four phasers or purchase them separately. Also, consider replacing the VCT solenoids while you're in there.

Estimated Replacement Costs

A Ford F-150 engine with the front timing cover removed, showing the complexity of the timing chain system.
With labor times often exceeding 9 hours, the complexity of accessing the timing chain accounts for the significant professional repair costs.

The cost can vary significantly based on whether you go to a dealership or an independent shop and the parts you choose. Given the complexity, this is not a recommended job for a beginner DIY mechanic.

ComponentEstimated Cost
New Aftermarket Kit$191 - $1,473
New OEM Kit (Ford/Motorcraft)$700 - $1,500+
Shop Labor$1,500 - $3,000+
Total Professional Job$2,200 - $5,500+

Frequently Asked Questions (FAQ)

What engines are most affected in the 2011-2015 F-150?

The 3.5L V6 EcoBoost engine is the most common engine to experience timing chain stretch and startup rattle. The 5.0L V8 can also have timing component issues, but it is reported less frequently.

🎬 See this guide for 5.0L V8 timing chain and phaser repairs.
Can I just replace the timing chain and not the other parts?

This is not recommended. The problem is often caused by or related to failing plastic guides, tensioners losing pressure, and worn VCT phasers. To ensure a long-lasting repair, you must replace all related components as a kit: the chain(s), guides, tensioners, and, for the 3.5L EcoBoost, all four VCT phasers.

What happens if I don't fix a rattling timing chain?

Ignoring the noise is risky. A stretched chain can jump timing, which will cause poor engine performance and likely leave you stranded. If the chain breaks or a guide shatters, the loose chain can cause catastrophic damage to the engine's valves, pistons, and cylinder head, potentially requiring a full engine replacement.

Is this a good DIY project?

For most people, no. This is a complex and time-consuming repair that requires specialized tools to hold the camshafts in place, extensive disassembly of the front of the engine, and a high degree of mechanical skill. The labor time is estimated at over 9 hours for a professional. An error during installation can destroy the engine.

🎬 Watch: A step-by-step walkthrough of the timing chain replacement process.
2011-2015 Ford F-150 3.5L Ecoboost Engine Startup Rattle New Fix!
▶
2011-2015 Ford F-150 3.5L Ecoboost Engine Startup Rattle New Fix!
F150 Ecoboost Timing Chain/Phaser Replacement | You can do it!
▶
F150 Ecoboost Timing Chain/Phaser Replacement | You can do it!
3.5l ECOBOOST Timing Chain Replacement MADE EASY
▶
3.5l ECOBOOST Timing Chain Replacement MADE EASY

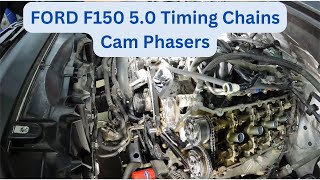

FORD F150 5.0 Timing Chains & Cam Phasers
▶
FORD F150 5.0 Timing Chains & Cam Phasers

Technical Specifications

OEM Part Numbers: BL3Z-6D256-C BR3Z-6268-A BR3Z-6268-B BL3Z-6L266-A AT4Z-6268-C DL3Z-6584-C

Kits vary by engine (3.5L V6 EcoBoost vs. 5.0L V8 Coyote). A complete kit for the 3.5L EcoBoost should include the primary chain, secondary chains, all guides, all tensioners, and four VCT cam phasers. The 5.0L V8 has a different four-chain configuration.
