A Toyota Prius Owner's Guide to the Engine Oil Pressure Switch (2011-2015)
Seeing the oil pressure light can be scary, but it might just be this simple, inexpensive part.
- A lit or flickering oil pressure light is the main symptom, but always check your oil level first.
- Failure is common, and an aftermarket switch is a reliable, budget-friendly repair for this specific part.
- The replacement is a simple DIY job for most, requiring a 24mm deep socket and access behind the passenger wheel.
- The diagnostic trouble code P0520 often confirms a faulty switch or circuit.
Is Your Prius Oil Light On? Don't Panic Yet.
If the oil pressure light on your 2011-2015 Toyota Prius dashboard is lit up or flickering, it's a signal you can't ignore. While it can indicate a serious problem like low oil level or a failing oil pump, it's often caused by a much simpler issue: a faulty engine oil pressure switch. This is a common failure point on many vehicles, and the Prius is no exception. Before assuming the worst, it's important to check your oil level first. 🎬 See how to properly check and change your Prius oil. If the dipstick shows the oil is full, the next likely culprit is the switch itself.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create a lot of worry, but the signs are usually clear. Here’s what to look for:
- Oil Light Stays On: The most common symptom is the oil pressure warning light staying illuminated even when you know the engine has enough oil.
- Flickering Oil Light: The light may flicker, especially at idle or when the engine is warm. This can indicate an intermittent fault in the sensor.
- Oil Leak: The switch itself can fail and start leaking oil. If you see oil residue on or around the sensor, it needs to be replaced.
- Check Engine Light with Code P0520: A faulty switch can trigger a Check Engine Light. An OBD-II scanner might show the code P0520, which points to a malfunction in the oil pressure sensor circuit.
Important: Verify Actual Oil Pressure First
Never assume the oil light is just a faulty switch without first checking your oil level. Driving with low oil pressure can destroy your engine. If the oil level is correct but the light is on, it's wise to have the actual oil pressure tested with a mechanical gauge to rule out a more serious internal engine problem before replacing the switch.
Choosing an Aftermarket Replacement Switch
For a part like the oil pressure switch on the 2011-2015 Prius, an aftermarket replacement is a very practical and cost-effective choice. The original equipment (OEM) part is reliable, but for this simple switch, many aftermarket brands offer comparable quality at a much lower price. The technology is not complex, and failure is more often due to age and exposure to engine heat than poor design.
Here's a look at some available brands:

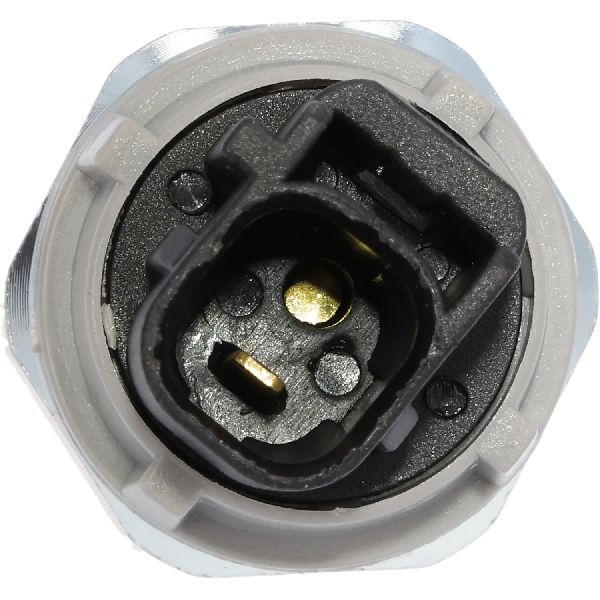

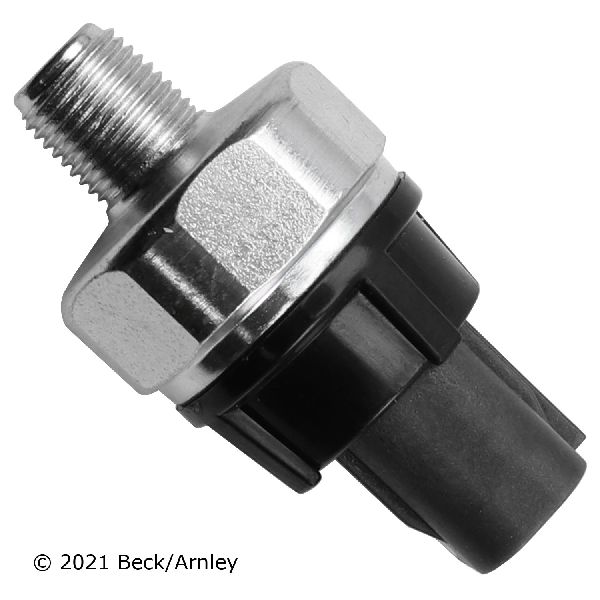

- Tier 1 (OEM Equivalents): Brands like Beck Arnley and Standard Ignition (SMP) have a strong reputation for quality. Beck Arnley is known for sourcing parts from OEM manufacturers, so you might get an original part in their box. Standard is a long-standing, reputable manufacturer of engine management components.

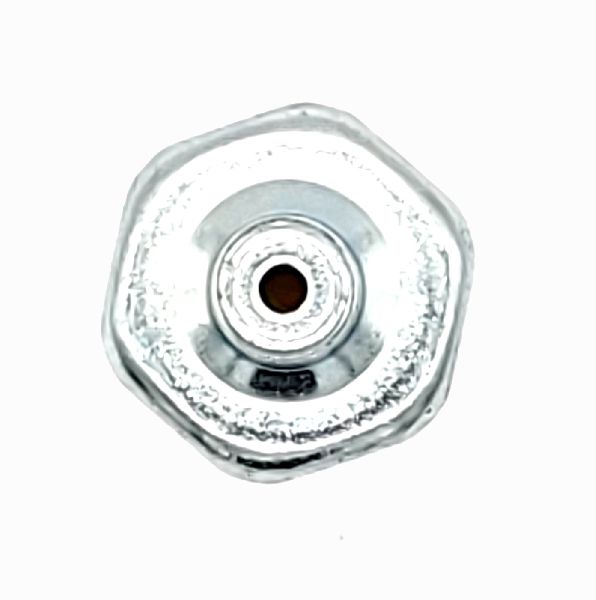

- Tier 2 (Quality Aftermarket): Brands like Holstein offer a good balance of quality and price. They often provide multi-year warranties and claim low failure rates, making them a solid choice for a budget-conscious repair.

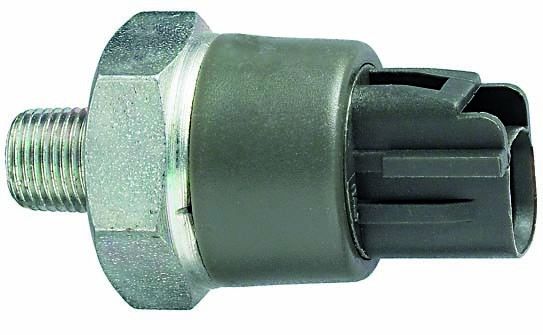

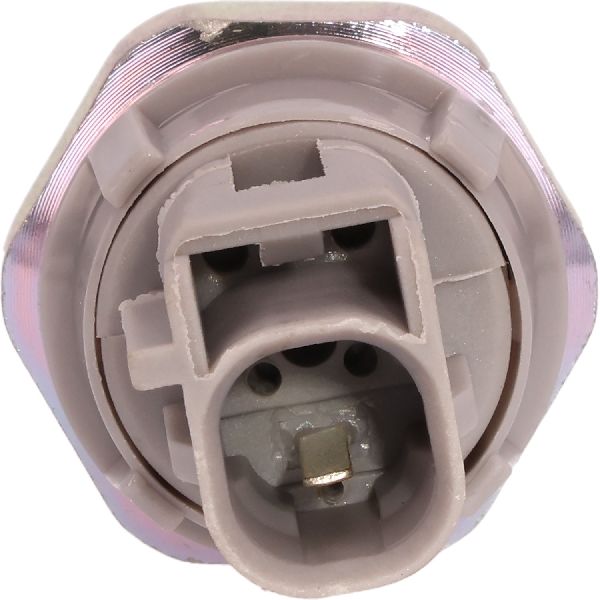

- Tier 3 (Budget Options): Brands like Global Parts and Facet fall into the budget-friendly category. While they can be a good value, quality can be more variable. For a critical-but-simple part like this, they are a viable option if cost is the primary concern.
Pro Tip: Check the Threads
When you receive your new switch, check if it has thread sealant pre-applied on the threads. If not, you should apply a small amount of appropriate liquid thread sealant to ensure a leak-proof installation. Do not overtighten the switch; it should be torqued to the manufacturer's specification, which is typically around 11 ft-lbs.
Cost of Replacing the Oil Pressure Switch
| Part Type | Typical Cost |
|---|---|
| New Aftermarket Switch | $9.52 - $30.05 |
| New OEM (Toyota) Switch | $37 - $52 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on a 2011-2015 Toyota Prius?
The oil pressure switch is located on the engine block. To access it, you will need to remove the front passenger-side wheel and a plastic splash shield. The switch is threaded into the block and has a single electrical connector. A 24mm deep socket is required for removal and installation.
Is replacing the Prius oil pressure switch a DIY job?
Yes, for someone with basic tools and mechanical skill, this is a very feasible DIY repair. It involves safely jacking up the car, removing the wheel, disconnecting the sensor, and unscrewing it. The entire job can typically be done in under an hour.
🎬 Watch this walkthrough of the oil pressure switch replacement process.Can I drive my Prius with the oil pressure light on?
It is not recommended. You should immediately pull over and check the engine oil level. If the level is fine, you can likely drive a short distance to a repair shop, but you are taking a risk that the light is indicating a real and severe loss of oil pressure. Continuing to drive could lead to catastrophic engine failure.
Are there any recalls for the oil pressure switch on the 2011-2015 Prius?
No, searches of NHTSA records and other sources show no specific recalls or widespread technical service bulletins (TSBs) for the engine oil pressure switch on the 2011-2015 Toyota Prius models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83530-60020 83530-12070 83530-28020 83530-30090
Socket Size: 24mm Deep Socket. Torque Spec: 15 N·m (11 ft·lbf).
