A Complete Guide to the Engine Cylinder Head Gasket Set for the 2011-2016 Audi A4
Facing engine overheating or mysterious coolant loss in your A4? It might be time for a new head gasket set.
- This is a critical, complex, and expensive repair; do not ignore symptoms like overheating or milky oil.
- Due to the high labor cost, use a top-tier aftermarket brand like Elring or Victor Reinz, which are known OEM suppliers for Audi.
- This repair is not recommended for DIY. It requires special tools and extensive knowledge of the Audi 2.0T engine.
- Always have the cylinder head checked for warpage by a machine shop before reinstalling it to ensure the new gasket seals properly.
Symptoms of a Failing Head Gasket in a 2011-2016 Audi A4
A head gasket failure on the 2.0T engine is a serious issue. Ignoring the signs can lead to severe engine damage. Look out for these common symptoms:
- Engine Overheating: This is the most critical sign. A failed gasket can let hot exhaust gases into the cooling system or let coolant leak out, causing the engine temperature to spike.
- White Exhaust Smoke: Sweet-smelling white smoke from the tailpipe indicates that coolant is leaking into the cylinders and being burned off with fuel.
- Milky Engine Oil: If you check your oil dipstick or oil cap and find a milky, frothy, or tan-colored sludge, it means coolant has mixed with your engine oil. This is a critical symptom that requires immediate attention as coolant is not an effective lubricant.
- Unexplained Coolant Loss: Are you constantly topping off your coolant, but can't find a leak on the ground? The head gasket may be leaking coolant internally into the engine.
- Bubbling in Coolant Reservoir: With the engine running, bubbles in the coolant overflow tank can be a sign that combustion gases are being forced into the cooling system.
Is It a Head Gasket or Something Else?
The 2011-2016 Audi A4 has a known recall for a faulty electric auxiliary coolant pump that can overheat. An engine that overheats for any reason, including a failed water pump, puts extreme stress on the head gasket and can cause it to fail. Additionally, these 2.0T engines are known for oil consumption issues related to piston rings, which can cause blue smoke from the exhaust. It's important to diagnose the root cause correctly.
Choosing the Right Aftermarket Head Gasket Set
Replacing the head gasket is a labor-intensive and expensive job. Because of the high labor cost, this is not a part you want to replace twice. Choosing a high-quality gasket set is essential for a lasting repair.
Tier 1: OEM Supplier Brands
These brands are known to manufacture parts for Audi and other German automakers. They offer the highest quality and reliability in the aftermarket.
- Elring: A German brand and a direct OE supplier to Audi. Widely regarded as a top choice for quality and fitment, ensuring a reliable seal.
- Victor Gaskets (Victor Reinz): Another top-tier German manufacturer that supplies gaskets to major car brands. Known for excellent engineering and materials, they are a trusted choice for European vehicles.
For a critical repair like this on a turbocharged German engine, sticking with an OEM supplier brand like Elring or Victor Reinz is strongly recommended. The small amount you might save on a cheaper brand is not worth the risk of having to redo the entire job.
Tier 2: Reputable Aftermarket Brands
These brands may not be OEM suppliers but have a history of producing reliable parts.
- Apex: An aftermarket brand that has been mentioned in forums, though specific reviews for Audi applications are limited. Generally considered a budget-friendly option.
Tier 3: Budget Brands
These brands compete on price, but their long-term durability for a high-compression, turbocharged engine is less certain.
- Elwis, Skyward: Specific, verifiable information on the quality of these brands for an Audi A4 is scarce. Using a budget gasket set on a repair this complex is a significant risk.
Head Gasket Replacement Costs for 2011-2016 Audi A4
This is a major repair with costs to match. The majority of the expense is in the extensive labor required to access the cylinder head.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Head Gasket Set | $547 - $597 |
| New Aftermarket Head Gasket Set | $73 - $245 |
| Shop Labor | $1,440 - $2,112 |
| Total Professional Replacement | $1,900 - $2,700+ |
Frequently Asked Questions (FAQ)
Is replacing a head gasket a DIY job?
For a 2011-2016 Audi A4, this is not a recommended DIY job for a beginner or intermediate mechanic. It requires extensive engine disassembly, specialized tools for timing the engine, and a torque wrench for properly tightening the head bolts in a specific sequence. Mistakes can lead to catastrophic engine failure. The job is estimated to take 8 or more hours for a professional.

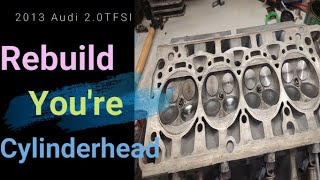

🎬 See this walkthrough of the cylinder head removal and rebuild.Will a new head gasket fix my A4's oil consumption?
Only if the head gasket was leaking oil externally or into the cylinders. The 2.0T engine in this A4 generation is known for high oil consumption due to piston ring issues. If your car is burning oil (blue smoke) but has no other head gasket symptoms, this repair will likely not solve the problem.
Should I get the cylinder head resurfaced?
Yes. Overheating can warp the cylinder head, even by a microscopic amount. If you install a new gasket on a warped head, it will not seal properly and will fail again quickly. Any reputable repair shop will send the cylinder head to a machine shop to be checked for flatness and resurfaced if necessary before reinstallation.
🎬 Watch: How to properly clean and prep the cylinder head.Are there any recalls for the Audi A4 head gasket?
No, there are no specific recalls for the head gasket on the 2011-2016 Audi A4. There are recalls for the electric coolant pump, which can fail and cause the engine to overheat, potentially leading to head gasket failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06H103383AF 06H103383AD 06H103383AC 06L103085B

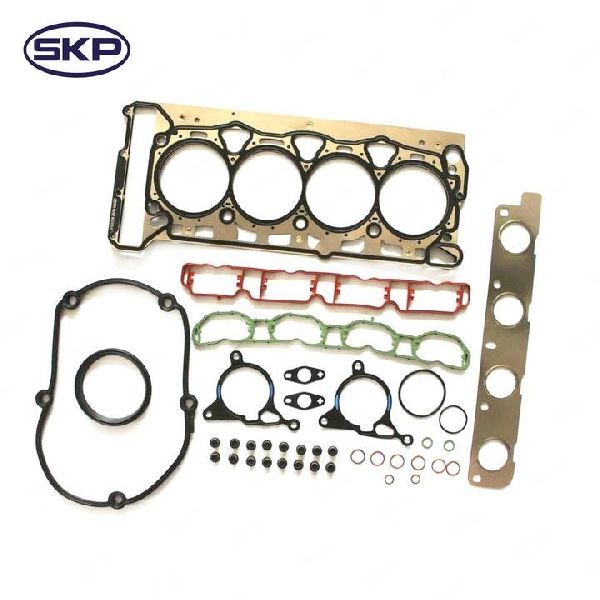

The primary head gasket is a Multi-Layer Steel (MLS) type, designed to withstand the high pressures and temperatures of the turbocharged 2.0T engine. A full set includes the head gasket, valve cover gaskets, intake and exhaust manifold gaskets, camshaft seals, and new cylinder head bolts (which are torque-to-yield and must be replaced).
