A Guide to the Engine Valve Cover Gasket on the 2011-2016 Audi A4
Addressing the common oil leaks and burning smells from your A4's 2.0T engine.
- This is a complex job on a 2011-2016 A4 and not a simple DIY; the 'valve cover' is a structural cam cradle.
- A burning oil smell is the most common symptom of a leak.
- Consider replacing the PCV valve at the same time, as its failure can cause gasket leaks.
- This repair may not solve all oil consumption issues, as the 2.0T engine has known piston ring problems.
Is Your Audi A4 Leaking Oil?

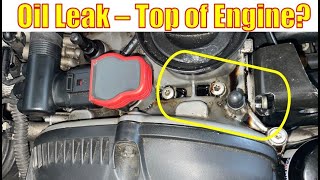

One of the most common signs of a failing valve cover gasket set on a 2011-2016 Audi A4 is the smell of burning oil. This happens when oil leaks from the gasket and drips onto hot engine parts like the exhaust manifold. You might also notice visible oil stains on the engine itself, particularly around the top and sides, or even small 🎬 Watch: Common oil leak spots on the Audi 2.0T engine puddles of oil on the ground where you park. Other symptoms include constantly having to top off your engine oil and, in some cases, an engine misfire if oil leaks into the spark plug tubes.
⚠️ This is Not a Simple Gasket Job
On many cars, replacing a valve cover gasket is a simple task. This is NOT the case for the 2.0T engine in your Audi A4. The part that is sealed is the camshaft bearing cradle, which also serves as the valve cover. This component holds the camshafts under pressure from the valve springs. Removing it without the proper procedure and tools can cause the camshafts to jump out of position, potentially leading to timing issues or engine damage. This job is significantly more complex than a typical valve cover gasket replacement and is not recommended for a beginner DIY mechanic.
🎬 See why resealing the cam tray is a complex jobChoosing the Right Aftermarket Gasket Set
When it comes to sealing your A4's engine, the quality of the gasket is critical. Given the complexity of the job, you don't want to have to do it twice. You have a few options:
- OEM Gasket: Genuine Audi parts are designed for a perfect fit but come at a higher price.
- Premium Aftermarket (Fel-Pro, Victor Gaskets/Reinz): Brands like Fel-Pro and Victor Reinz are well-known aftermarket manufacturers. For European vehicles, Victor Reinz is often preferred by specialists and seen as a high-quality option that closely matches OEM standards. Fel-Pro is a solid brand, but some users in forums have noted that for certain European applications, fitment can be less precise than OEM or Victor Reinz. For a sensitive job like this, using a premium brand known for excellent fit on German engines is a wise choice.
Pro Tip: Check the PCV System
The 2.0T engine is also known for issues with its Positive Crankcase Ventilation (PCV) system. A failed PCV valve can cause excess pressure to build inside the engine, forcing oil past seals, including the valve cover gasket. Before replacing the gasket, it's a good idea to inspect the PCV valve. A whistling noise at idle is a classic sign of a failed PCV.
🎬 Watch: How to replace the PCV valve on your Audi| Part Type | Estimated Cost |
|---|---|
| New OEM Gasket Set | $40 - $60 |
| New Aftermarket Gasket Set | $35.42 |
| Shop Labor | $290 - $425 |
| Total Professional Replacement | $325 - $485 |
Frequently Asked Questions
Is this a DIY job for my Audi A4?
Due to the complexity of the cam cradle design on the 2.0T engine, this is not recommended for beginners. The risk of causing timing issues is high if the correct procedure is not followed. This job is best left to an experienced mechanic who is familiar with Audi engines.
Will replacing the valve cover gasket fix my A4's oil consumption?
It might help if the gasket is the primary source of the leak. However, the 2.0T engine in this generation is widely known for excessive oil consumption due to internal issues with piston rings. If your car is burning oil (blue smoke from exhaust) and not just leaking it, a new gasket will not solve the entire problem.
Are there any recalls for this issue?
There are no specific recalls for the valve cover gasket itself. While there have been recalls for the 2011-2016 Audi A4, they typically relate to other components like the auxiliary coolant pump.
What else should be inspected or replaced at the same time?
When replacing the valve cover gasket, it's a good time to inspect the PCV system for failures, check the ignition coils for oil contamination, and replace the spark plug tube seals if they are part of the kit or leaking.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06H103483D 06H103483C
This is a molded rubber gasket set designed for the 2.0T TFSI engine's upper camshaft cover (cam cradle). The replacement process often requires anaerobic sealant in addition to the gasket itself.
We Have This Part in Stock
