Understanding the Engine Water Pump for the 2011-2016 Audi A4
A failing water pump is a common issue on the 2.0T engine; learn how to choose the right replacement part before it's too late.
- The OEM plastic water pump is a common failure point; upgrading to an aftermarket all-aluminum unit is highly recommended.
- Always replace the water pump, thermostat, and drive belt as a complete assembly to prevent future issues.
- Coolant leaks are the most common symptom of a failing pump and should be addressed immediately to prevent engine overheating.
- Due to class-action lawsuits, Audi issued warranty extensions for this part, confirming it as a widespread defect.
Is Your Audi A4 Water Pump Failing?
The water pump on the 2011-2016 Audi A4, particularly with the 2.0T engine, is a known weak point. The original factory part is made with a plastic housing that can become brittle and crack over time due to constant heat and vibration. This often leads to coolant leaks, which is the most common sign of a failing water pump.
Key Symptoms of a Bad Water Pump:
- Coolant Leaks: You may notice puddles of pink or green fluid under the front of your engine. Leaks often start small but can worsen quickly. The failure is frequently due to a cracked plastic housing or a bad gasket between the pump and the thermostat.
- Engine Overheating: If the pump fails, it can't circulate coolant, causing the engine temperature gauge to climb into the red. Driving with an overheating engine can cause catastrophic damage.
- Warning Lights: A "Low Coolant" warning on your dashboard is a common first alert. You might also see a check engine light.
- Unusual Noises: A high-pitched whining or grinding sound from the front of the engine can indicate that the pump's internal bearings are failing.
Known Issues, Recalls, and Warranty Extensions
The water pump issue on these engines is so common that it led to class-action lawsuits. As a result, Audi issued several recalls and warranty extensions. Recall 19N4 / NHTSA 18V229 addressed a fire risk from the electric after-run coolant pump, which could short circuit. Audi also offered a warranty extension for the primary engine water pump on many vehicles, including some 2011-2014 A4 models, for up to 10 years or 100,000 miles. While these programs may have expired for many owners, they highlight the widespread nature of the problem.
Choosing the Right Aftermarket Water Pump
When replacing the water pump, you have a choice between another OEM plastic unit and various aftermarket options. Many aftermarket brands have addressed the original design's flaws.
OEM vs. Aftermarket Quality
The original Audi water pump is made of plastic, which is prone to cracking. Many aftermarket manufacturers offer upgraded versions with all-aluminum housings. These metal pumps are designed to be more durable and resist the heat and vibration that cause the plastic ones to fail. For this specific part, a quality aftermarket pump with a metal housing is often considered a superior choice to the OEM plastic design.
Aftermarket Brand Tiers
- Premium Aftermarket (OEM Supplier Quality): Brands like Saleri and Graf are often OEM suppliers to European car brands and are highly regarded. Gates and Hella are also well-respected names known for quality cooling system components. These brands often feature improved designs, such as all-metal housings, providing a long-term solution.
- Mid-Tier Aftermarket: Brands like GMB, DJ Rock, and DNJ Engine Components offer a balance of affordability and reliability. They are a solid choice for owners looking for a dependable part without the premium price tag.
- Budget-Focused Aftermarket: Brands like URO Parts and Skyward provide the most affordable options. While the price is attractive, quality can sometimes be inconsistent. However, URO Parts also offers a "URO Premium" line which features re-engineered designs and better materials, often with a lifetime warranty, making them a more compelling budget choice.
Pro Tip: Always replace the water pump and thermostat as a complete assembly. The thermostat is housed within the water pump unit on the 2.0T engine, and it is also a common failure point. Replacing both at the same time saves you from having to do the same labor-intensive job twice.
Cost of Replacing Your Audi A4 Water Pump
The cost can vary significantly based on whether you do the work yourself or go to a repair shop. The job is moderately difficult and can take 3-6 hours.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump Kit | $62 - $422 |
| New OEM Water Pump Kit | $350 - $855 |
| Shop Labor | $560 - $913 |
| Total Professional Replacement | $700 - $1,768 |
Frequently Asked Questions
Can I replace the Audi A4 water pump myself?
Yes, it is possible for an experienced DIY mechanic. 🎬 Watch this step-by-step DIY guide for replacing the pump and thermostat. The job is considered advanced and requires 3-6 hours. You will need to drain the coolant, remove the serpentine belt, and access the front of the engine. Special tools like hose clamp pliers and a torque wrench are necessary. Access is tight, and the belt tensioner bolt can be difficult to remove.
Should I get a plastic or metal water pump?
For the 2011-2016 Audi A4, an aftermarket water pump with an all-aluminum housing is highly recommended. 🎬 See how even upgraded aluminum water pumps can sometimes fail. The original plastic design is a known failure point. A metal housing provides much greater durability and is a long-term fix for the common problem of cracking.
When should the water pump be replaced?
There is no exact mileage for failure, but they commonly fail between 60,000 and 90,000 miles. It's best to replace it at the first sign of a leak or overheating. Many owners choose to replace it proactively if they are already doing other service in that area of the engine.
Do I need to replace the small belt on the water pump?
Yes. The water pump is driven by its own small, toothed belt connected to a balance shaft. This belt and its tensioner should always be replaced along with the water pump. Reusing the old belt is not recommended.

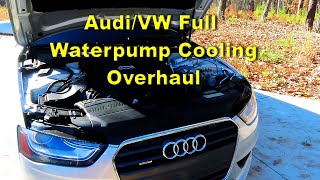

Helpful Videos
Technical Specifications
OEM Part Numbers: 06H121026AB 06H121026AF 06H121026AG 06H121026B 06H121026BA 06H121026BE 06H121026BP 06H121026CF 06H121026CQ 06H121026DD
This is a complete water pump and thermostat housing assembly, driven by a small, toothed belt off the engine's balance shaft. The original design features a plastic housing, while many aftermarket replacements use a more durable aluminum housing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
