Engine Coolant Thermostat Guide for the 2011-2016 Audi A6 Quattro
Understanding common failures and choosing the right aftermarket replacement for your C7 generation Audi A6.
- For the 3.0T V6, the plastic thermostat housing is a common failure point; consider an upgraded aluminum replacement for long-term reliability.
- A P0128 check engine code is a strong indicator that your thermostat has failed in the open position.
- Replacement on the 3.0T engine is labor-intensive, requiring removal of the supercharger. Use high-quality parts to avoid repeat repairs.
- Always use the correct Audi-specified G12/G13 coolant to prevent damage to the cooling system.
Is Your Audi A6 Thermostat Failing?
A failing thermostat in your 2011-2016 A6 Quattro can cause a range of problems, from annoying to potentially engine-damaging. The most common failure mode is the thermostat getting stuck open. This prevents the engine from reaching its proper operating temperature, especially in cooler weather or during highway driving. Less commonly, the thermostat can fail in the closed position, which is far more dangerous as it will quickly lead to overheating. For the 3.0T V6 engine, a known issue is the original plastic thermostat housing becoming brittle and cracking, leading to coolant leaks.
Common Symptoms of a Bad Thermostat
- Check Engine Light: Often, the first sign is a check engine light with code P0128, indicating the engine coolant temperature is below the thermostat's regulating temperature.
- Temperature Gauge Fluctuates: You might notice the temperature gauge on your dashboard dropping below the normal halfway mark during steady driving, or taking a very long time to warm up.
- Poor Heater Performance: If the engine isn't getting hot enough, the cabin heater will blow lukewarm air instead of hot air.
- Decreased Fuel Economy: An engine that runs too cool is less efficient, leading to a noticeable drop in your miles per gallon (MPG).
- Coolant Leaks: For 3.0T models specifically, you may see puddles of pink or purple coolant under your car, a sign that the plastic housing has cracked.
Recalls and Technical Service Bulletins (TSBs)
While there are no direct recalls for the main engine thermostat itself, there have been several cooling system-related actions for this A6 generation. Notably, recalls were issued for the electric auxiliary coolant pump on 2.0T models, which could overheat and pose a fire risk. Additionally, Audi has issued TSBs for coolant leaks around the thermostat housing and water pump on both 2.0T and 3.0T engines, providing diagnostic and repair procedures for technicians. Another TSB addresses a coolant valve that could leak and cause the engine to enter limp mode.
Choosing the Right Aftermarket Thermostat
When replacing the thermostat on your A6, you'll find parts ranging from the thermostat valve itself to complete housing assemblies. For the 3.0T engine, it is highly recommended to replace the entire plastic housing assembly due to its tendency to crack. Several aftermarket companies even offer upgraded billet aluminum housings to permanently fix this issue.
Brand Quality Tiers
- OEM-Quality Aftermarket (Recommended): Brands like Vemo and Calorstat are often considered to be of similar quality to the original parts. They provide a good balance of reliability and cost.
- Reputable Aftermarket: Gates is a well-known brand, particularly for belts and hoses, and their thermostats are a solid choice. Beck Arnley often re-packages OEM parts for the aftermarket, making them a reliable option.
- Budget-Friendly Options: Brands like URO Parts and Motorad offer a more affordable price point. However, owner experiences can be mixed. Some URO parts have been reported to fail prematurely. While they can be a viable option for a tight budget, be aware of the potential for a shorter lifespan compared to premium brands. 🎬 See what to look for when choosing your replacement thermostat.
- Performance Upgrade: For 3.0T owners, brands like Mishimoto and others offer upgraded billet aluminum thermostat housings that eliminate the failure-prone plastic design of the original part. These are more expensive but offer superior durability.
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket Thermostat Assembly | $21 - $130 |
| New OEM Thermostat Assembly | $150 - $350 |
| Shop Labor | $450 - $900 |
Pro Tip: The thermostat replacement on the 3.0T V6 is labor-intensive as it is located under the supercharger. 🎬 Watch this step-by-step guide for replacing the 3.0T thermostat. Because of the high labor cost, it is strongly recommended to use a high-quality OEM or premium aftermarket part to avoid having to do the job twice. While you're there, consider replacing the water pump, PCV valve, and any plastic coolant pipes that are known to become brittle.
Frequently Asked Questions
Can I just replace the thermostat valve instead of the whole housing?
For most 2011-2016 A6 models, the thermostat is integrated into a plastic housing. While some aftermarket options might offer just the valve, it is generally recommended to replace the entire assembly, especially on the 3.0T engine where the plastic housing itself is a common failure point.
My mechanic suggested an aluminum thermostat housing. Is it worth it?
Yes, especially for the 3.0T engine. The original plastic housing is a known weak point that can crack from repeated heat cycles. An upgraded billet aluminum housing is a permanent solution to this problem and is a wise investment given the high labor cost of the replacement job.
What is the difference between a regular and a "map-controlled" thermostat?
A regular thermostat opens and closes based purely on coolant temperature. A map-controlled thermostat, like the one in your A6, has an integrated electronic heater. The engine's computer (ECU) can heat the thermostat to force it to open sooner than it normally would. This allows for more precise control over engine temperature to improve efficiency and performance under different driving conditions.
Do I need to use a specific type of coolant?
Yes, absolutely. Audis require a specific type of coolant, typically G12, G12++, or G13, which is a pink or violet color. Using the wrong type of coolant (like the common green or orange types) can cause corrosion and damage to your cooling system components. Always check your owner's manual or the coolant reservoir for the correct specification.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06E121111AL 06E121111G 06E121111M 06E121111AN 06E121111AS 06E121111AR 06E121111AT

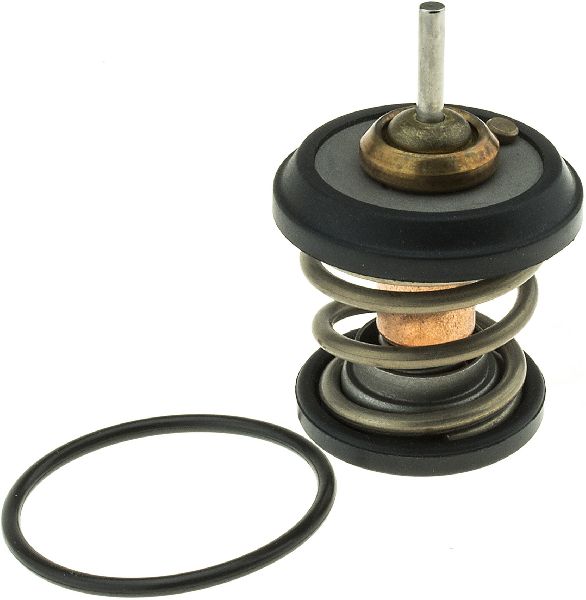

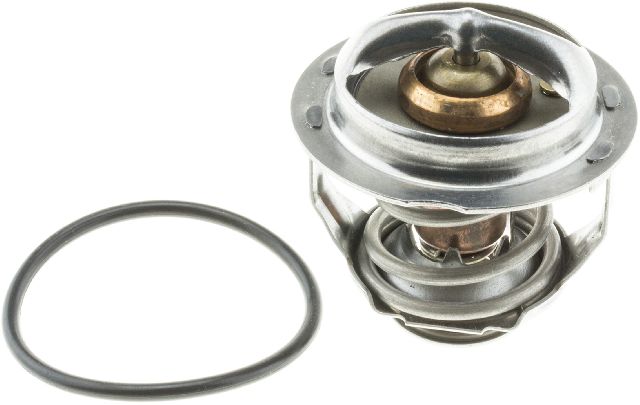

Electronically map-controlled thermostat, typically integrated with a synthetic or metal housing. Opening temperatures vary but are often around 85°C to 95°C.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
