A Guide to the Engine Water Pump for the 2011-2016 Audi TT
If you're losing coolant, the original plastic water pump is the most likely reason why.
- The original plastic water pump housing is prone to cracking; choose an aftermarket replacement with an aluminum housing for a permanent fix.
- This is not a simple DIY job; professional installation is recommended due to tight access and the 3-4 hour labor time.
- Symptoms include coolant leaks (pink fluid), engine overheating, and grinding noises from the engine area.
- Always use the correct G12/G13 coolant to protect your engine and cooling system components.
The Biggest Problem: Plastic Housings
The most common failure point for the water pump in the 2011-2016 Audi TT isn't the pump itself, but its housing. The original factory (OEM) water pump assembly is made with a plastic housing that becomes brittle over time due to constant heat cycles. This problem is made worse by engine oil leaks from above, such as from a valve cover gasket, which can drip onto the plastic and speed up its degradation. Eventually, the plastic housing cracks, causing coolant leaks that can range from small drips to large puddles under your car.
🎬 Watch: Common symptoms of a failing water pump to look for.Known Issue: Plastic vs. Aluminum
Because the original plastic design is a known weak point, many aftermarket manufacturers offer upgraded water pump assemblies with full aluminum housings. Choosing a replacement with a metal housing is highly recommended to prevent the same failure from happening again. This is a permanent solution to the original design flaw.
🎬 Watch: Why upgrading to an aluminum housing prevents future leaks.Choosing the Right Aftermarket Water Pump
When shopping for a new water pump, you'll find several brands. They generally fall into a few quality tiers. Since replacing the water pump involves significant labor costs, investing in a quality part is a smart choice.
Tier 1: Upgraded Aluminum Housing Kits (Recommended)
These brands offer a direct solution to the factory pump's main weakness. They are the preferred choice for a long-term, reliable repair.
- CRP (Rein): Rein is a well-regarded brand that specifically offers an upgraded water pump kit with an aluminum thermostat housing. These kits are designed to resist cracking and often include improved gaskets, making them a top choice for durability.
Tier 2: Reputable Aftermarket Brands
These brands are known for producing reliable cooling system components and are a solid choice if an aluminum upgrade isn't available or in the budget. Always verify if their offering for the TT is a plastic or metal design.
- Gates: Gates is a major name in belts and cooling parts. Their water pumps and timing belt kits are widely used and generally considered a reliable OEM-equivalent option.
- GMB: GMB is a long-standing aftermarket manufacturer. While many have used their pumps without issue, some professional mechanics prefer other brands for critical jobs.
Tier 3: Budget Brands
These brands offer the lowest price point, but their long-term durability can be uncertain.

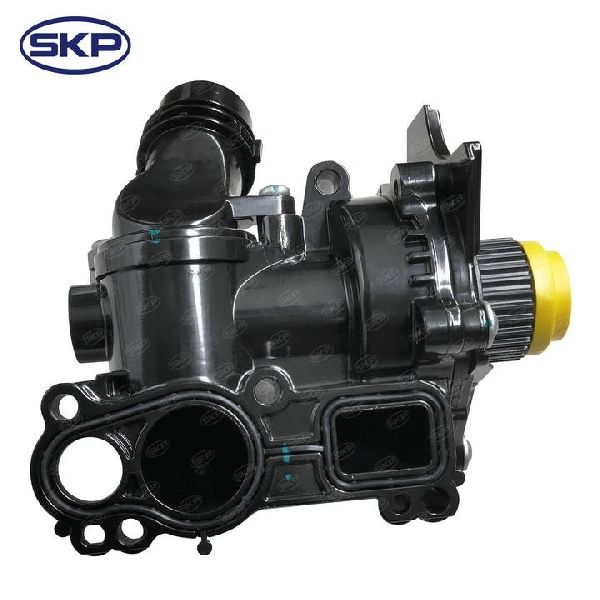

- Skyward, US Motor Works: While these brands provide a cost-effective option, there is limited vehicle-specific feedback available for them. Given that the labor to replace the pump can cost over $500, using a budget part that might fail prematurely could cost you more in the long run.
Pro Tip: When replacing the water pump, it's a good idea to also replace the small belt that drives it and any associated seals or O-rings. Many kits include these necessary components.
Cost to Replace an Audi TT Water Pump
The total cost of the job is a combination of the part price and shop labor. Labor costs are high because the pump is difficult to access.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $67 - $304 |
| Shop Labor | $532 - $780 |
| Total Estimated Cost | $599 - $1,084 |
Cost estimates are based on national averages and may vary by location and repair shop.
Frequently Asked Questions (FAQ)
Is there a recall on the Audi TT water pump?
There was a major safety recall for a different pump, the electric auxiliary coolant pump, on many Audis from this era with the 2.0T engine. This auxiliary pump could short-circuit and create a fire risk. However, this is a separate part from the main engine water pump discussed in this guide. Additionally, a class-action lawsuit was filed concerning premature failure of the main water pump module in several VW and Audi vehicles, including the 2016-2020 Audi TT, citing the defective thermoplastic housing.
Can I replace the Audi TT water pump myself?
This is a challenging job for a DIY mechanic. Access is very tight, and it requires removing the throttle body, radiator fan, and other components. It also requires specific tools and knowledge of the engine. For most owners, professional installation is recommended. 🎬 See this step-by-step DIY removal guide for the 2.0T engine. The job typically takes a professional 3-4 hours.
Should I replace anything else at the same time?
Yes. Since the water pump is driven by a small belt connected to the balance shaft, it's wise to replace that belt. Also, inspect all coolant hoses connected to the pump for swelling or cracking and replace the thermostat if it's not part of the new pump assembly. Many aftermarket kits come with the required new belt and gaskets.
Do I need special coolant?
Yes, you must use the correct type of coolant specified for your vehicle, which is typically a G12 or G13 type coolant. Using the wrong coolant can cause damage to the cooling system. Always mix with distilled water according to the instructions unless you are using a pre-mixed formula.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06H121026DD 06H121026DR 06H121026CQ 06H121026AB 06H121026AF 06H121026BE 06H121026CF 06H121026DN
The 2011-2016 Audi TT with the 2.0T EA888 engine uses a complete water pump and thermostat housing assembly. It is driven by a small belt connected to the engine's balance shaft, not the main timing chain.
