A Home Mechanic's Guide to the 2011-2016 Chevrolet Cruze Door Lock Actuator
If your Cruze's power locks are acting up, this guide explains the problem and helps you choose the right replacement part.
- A bad actuator causes buzzing noises or makes power locks stop working.
- Before buying a new part, check for a bent internal door lock rod, a known issue on some Cruze models.
- Replacement is a moderately difficult DIY job requiring trim removal tools and a Torx bit set.
- For best results, consider a premium aftermarket brand like Standard Ignition to avoid repeating the labor-intensive installation.
Is Your Cruze's Door Lock Actuator Failing?
A faulty door lock actuator is a common issue as a vehicle ages. The problem usually isn't the car's computer but the mechanical parts inside the actuator itself. Over time, the small plastic gears inside can wear out or crack from repeated use. When this happens, you'll notice problems with your power locks.
Common Symptoms of Failure
- Doors Don't Lock or Unlock: The most obvious sign is when a door doesn't respond to the key fob or the interior lock switch.
- Strange Noises: You might hear a buzzing, clicking, or grinding sound from inside the door when you try to lock or unlock it. This is often the sound of worn gears trying to engage. 🎬 Watch: Diagnosing and fixing common actuator noises and failures.
- Erratic Behavior: The locks may work sometimes but not others, or they might lock and unlock by themselves.
- Alarm Goes Off Randomly: A faulty actuator can sometimes trigger the vehicle's security system.
Check This Before You Buy a New Part!
General Motors issued a Technical Service Bulletin (TSB #PI0643) for the 2011-2012 Cruze. It notes that power lock failure can sometimes be caused by a bent lock rod inside the door, not a bad actuator. Before spending money on a new part, it's worth inspecting the rods connected to the lock mechanism when the door panel is off to ensure they are straight and moving freely.
Choosing the Right Aftermarket Actuator
When replacing the door lock actuator on your Cruze, you don't have to buy an expensive OEM part from the dealer. Aftermarket parts can offer good value, but quality varies between brands. Here’s a breakdown of the available options.
Tier 1: Premium Aftermarket
Standard Ignition (Standard Motor Products): This brand has a long-standing reputation for producing high-quality components that meet or exceed original specifications. They invest heavily in testing and are a trusted choice for mechanics. For a part that is labor-intensive to install, choosing a reliable brand like Standard can prevent you from having to do the job a second time.
Tier 2: Quality Alternatives
URO Parts: URO positions itself as a quality replacement for original parts, often at a much lower price. While some users have mixed reviews, they are a viable option for those on a budget, and many of their parts come with a good warranty.
Tier 3: Value-Focused Brands

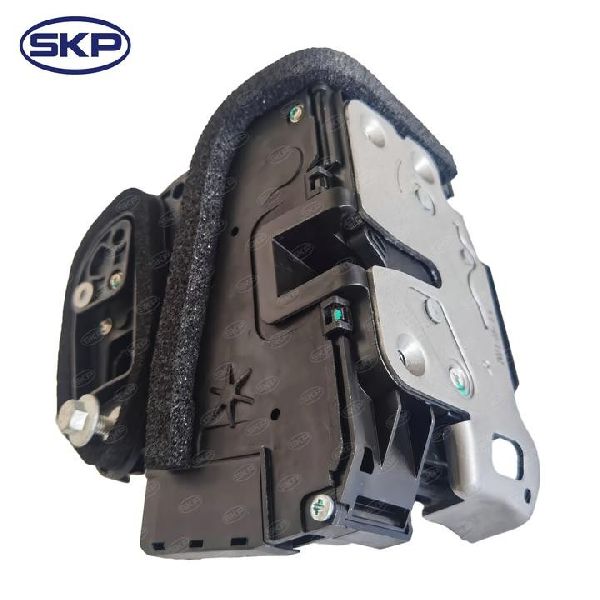

Replacement, Skyward: These brands focus on providing a direct-fit part at the lowest cost. They are designed to function like the original, but may not have the same long-term durability or rigorous quality control as more premium brands. They can be a good choice if budget is your primary concern, but be aware of the quality trade-off.
What to Expect for Replacement Costs
The cost to replace a door lock actuator includes the part itself and labor. Since the job requires removing the entire door panel, labor can be a significant part of the expense if you have a shop do the work.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $62 - $176 |
| New OEM Actuator | $170 - $250 |
| Shop Labor | $160 - $260 |
| Total Professional Installation | $222 - $510 |
Cost estimates are approximate and can vary by location and specific part brand.
DIY Installation Tips
Replacing the actuator is a manageable DIY job that takes 1-2 hours. You will need to remove the interior door panel, which involves finding several hidden screws (behind the door handle and armrest) and carefully popping off plastic clips. Be sure to have a set of plastic trim removal tools to avoid scratching the panel and a Torx bit set (T20 and T30 sizes are common). Once the panel is off, you'll need to peel back the weather barrier, unbolt the actuator, and carefully disconnect the various rods and electrical plugs before installing the new one.
🎬 See this step-by-step front door actuator replacement walkthrough.Frequently Asked Questions
Can I drive my Cruze with a bad door lock actuator?
Yes, it is safe to drive. A bad actuator does not affect the vehicle's operation. However, for security, you must remember to lock the affected door manually from the inside before you leave the car.
Do I need to replace all the actuators at once?
No. The actuators operate independently. You only need to replace the one that has failed. However, since they are all the same age, it's not uncommon for another one to fail soon after the first.
Is any programming required after installation?
No. Aftermarket door lock actuators for the 2011-2016 Cruze are plug-and-play. They do not require any special programming or calibration. Once installed, they should work immediately with your existing key fob and interior switches.
Why is the driver's side actuator different from the passenger side?
The driver's door actuator is unique because it includes a connection for the physical key lock cylinder on the outside handle. Passenger and rear door actuators do not have this connection. Make sure you order the correct part for the specific door you are repairing.
🎬 Watch: How to replace the rear door lock actuator.Helpful Videos
Technical Specifications
OEM Part Numbers: 96846101 96846102 96846103 96846104
Requires Torx bits (T20, T30) and panel removal tools for installation. The actuator is a self-contained electrical and mechanical unit with no programming needed.
