A Guide to Replacing Radiator Hoses on Your 2011-2016 Volvo S60
Keeping your Volvo S60's engine cool is critical, and worn radiator hoses are a common failure point.
- A leaking radiator hose is a critical issue that can lead to severe engine damage from overheating.
- Symptoms include visible leaks, a sweet smell, engine overheating warnings, and visibly damaged hoses.
- For reliable replacements, choose premium aftermarket brands like CRP (Continental) or Gates, which are often OEM suppliers.
- When one hose fails, it's wise to replace others, especially the upper and lower radiator hoses, as a preventative measure.
Is a Leaking Radiator Hose a Serious Problem?
Yes. A failed radiator hose can cause your engine to overheat quickly. If you see any of the symptoms below, you should stop driving and check your cooling system. A small leak can become a major failure without warning, leaving you stranded and facing a very expensive engine repair bill.
Symptoms of a Failing Radiator Hose
Your S60's radiator hoses won't last forever. The rubber degrades over time from heat and pressure. Look for these signs:
- Coolant Leaks: Puddles of sweet-smelling green, yellow, or blue fluid under your car are a clear sign of a leak. The most common cause for a coolant leak on the S60 is a loose hose connection.
- Visible Damage: Inspect the hoses for cracks, splits, or bulging. A swollen or spongy-feeling hose is a sign of internal damage and it could burst soon.
- Engine Overheating: If your temperature gauge is in the red or you get a high engine temperature warning, a bad hose could be the cause. A person with a 2016 S60 reported persistent overheating messages like "High engine temperature. Turn engine off." which started with simple coolant top-offs and eventually led to major component replacements.
- Low Coolant Light: If you constantly need to add coolant, you have a leak somewhere in the system.
Known Issues & Recalls
While there are no major recalls specifically for radiator hoses on the 2011-2016 S60 in the US, a recall was issued in Australia for 725 vehicles in this year range due to a potential coolant leak under certain conditions, which could pose a fire risk. Another recall for the 2016 XC90 (which shares some platform components) mentioned a coolant bleeder hose cracking due to heat and humidity, leading to leaks. While not your exact model, it shows that Volvo has had issues with cooling hoses from this era. Always check for leaks and hose condition.
Choosing the Right Aftermarket Hose
You don't have to buy the expensive Genuine Volvo part. Several quality aftermarket brands offer reliable replacements. Many hoses for the S60 use specific quick-connect fittings, so ensure the part you buy includes them if needed.
Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| Premium Aftermarket | CRP (Continental), Gates | These brands are often original equipment (OEM) suppliers to Volvo and other European manufacturers. Their quality is considered equivalent to the Genuine Volvo part. You can trust these hoses for fit and longevity. Gates is a highly recommended brand in many forums. | 🎬 Watch why professional mechanics prefer Gates hoses over other brands.
| Standard Aftermarket | Professional Parts Sweden (PPS) | This brand specializes in Volvo parts. However, owner experiences are mixed. Some report good results, while others have experienced poor quality with rubber components. It can be a budget-friendly option, but inspect the part carefully before installation. |
| Economy Aftermarket | URO Parts | URO is generally considered a budget brand. While some have used their hoses without issue, many Volvo owners recommend avoiding them for critical parts like coolant hoses due to concerns about fit and material quality. A failure here could lead to engine damage, making the initial savings risky. |
Pro Tip: Replace in Sets
If one hose has failed due to age, the others are likely not far behind. It's good practice to replace the upper and lower radiator hoses, and any other accessible coolant hoses, at the same time. Also, consider replacing the plastic thermostat housing, as it can become brittle and fail.
Frequently Asked Questions
Which hoses should I replace?

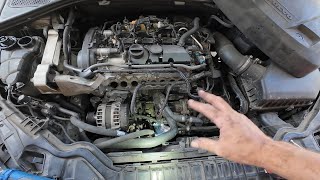

Your S60 has several key hoses, including the upper radiator hose, lower radiator hose, and various heater and bypass hoses. The upper and lower hoses are the largest and most common to fail. 🎬 Learn how to replace both upper and lower radiator hoses. Check diagrams for your specific engine (4-cyl, 5-cyl, or 6-cyl) as hose routing and part numbers differ.
Is replacing a radiator hose a DIY job?
For someone with basic mechanical skills, yes. The upper hose is generally easy to access. The lower hose can be more difficult. Some hoses, like the turbo coolant line, can be very frustrating to replace due to tight spaces. 🎬 See a real-world DIY walkthrough of a frustrating hose replacement. You will need to drain and refill the coolant, so have the correct Volvo-spec coolant and a catch pan ready.
What type of coolant does my 2011-2016 Volvo S60 use?
Always use the blue Volvo-specific coolant. Using generic green or orange coolant can cause corrosion and damage to your cooling system components. Check your owner's manual to be certain.
What do the quick-connect fittings do?
Many modern Volvo hoses use special connectors that click into place rather than using traditional worm-gear clamps. They make installation faster but can be tricky to release without the proper technique, which usually involves pressing tabs or lifting a metal clip. Make sure your replacement hose comes with these fittings if required.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30713530 32249279 32249280 31319053 32249278 30794641 31358616
Hoses are specific to engine type (4-cylinder, 5-cylinder, or 6-cylinder) and position (upper, lower, bypass, heater). Many hoses for this model feature plastic quick-connect fittings. Ensure the replacement part matches the original's design.
