A Guide to the Engine Oil Pan for the 2011-2017 Buick Regal
If you're seeing oil spots under your car, this guide will help you understand the problem and find the right replacement oil pan for your Regal.
- Before buying a new oil pan, confirm it's the source of the leak. Leaks from valve covers or clogged PCV systems on 2.4L engines are common and can mislead you.
- Replacement can be a very complex and expensive job, sometimes requiring the engine to be lifted or the subframe to be removed.
- Aftermarket brands like ATP, Dorman, and Spectra are cost-effective and reliable alternatives to the more expensive OEM part.
- If the leak is significant enough to trigger the oil pressure light, stop driving immediately to prevent catastrophic engine damage.
Is Your Oil Pan Failing?
The most obvious sign of a problem is finding puddles or drips of dark brown or black oil on the ground where you park. An oil pan can fail in two main ways: the pan itself can be cracked or damaged by road debris, or the gasket that seals it to the engine block can degrade and leak. You might also notice a burning oil smell if the leaking oil drips onto hot exhaust components. If the leak is severe, your dashboard's low oil level or low oil pressure light may turn on.
Confirm the Leak Source First!
Before you buy an oil pan, it is critical to make sure it's the true source of the leak. On the 2011-2017 Regal, several other issues can look like an oil pan leak. Oil from a leaking valve cover gasket or timing cover can drip down the engine and onto the pan, making you think the pan is the problem. Always clean the engine area and trace the leak to its highest point before ordering parts.
A Special Note for 2.4L Engine Owners
If you have the 2.4L Ecotec engine, be aware of a known issue with the Positive Crankcase Ventilation (PCV) system. A small orifice inside the intake manifold can get clogged with sludge or freeze in cold weather. When this happens, pressure builds up inside the engine, which can force oil out of various seals, most notably the rear main seal. 🎬 Watch: How PCV failure causes catastrophic rear main seal leaks. This creates a major oil leak that is often misdiagnosed as a simple oil pan gasket failure. If you have a 2.4L with a large, sudden oil leak, the PCV system should be inspected.
🎬 See this easy fix for a clogged PCV orifice.Choosing the Right Aftermarket Oil Pan
You don't need to buy from the dealer to get a quality part. Aftermarket oil pans often provide the same performance for a better price. They generally fall into a few categories:
- Premium Aftermarket (Brands like ATP): Some owners and mechanics have found that brands like ATP can be even more robust than the original part, sometimes using thicker metal or better coatings. These are a great choice if you want a long-term, high-quality repair.
- Standard Aftermarket (Brands like Dorman, Spectra): These are the most common and offer a balance of quality and affordability. They are designed to fit and function like the original. While they are reliable, sometimes small details like the drain plug size might differ from the factory pan.
- Economy Brands (Brands like Vaico): These are your most budget-friendly options. While they meet basic requirements, they may not have the same long-term corrosion resistance or the widespread reputation of more established brands.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $42 - $390 |
| New OEM Oil Pan | $150 - $450 |
| Shop Labor | $300 - $1,800 |
| Total Professional Repair | $342 - $2,250+ |
Note: Labor costs vary dramatically. Some Regal models require lifting the engine or removing the front subframe for access, which significantly increases labor time and cost.
Frequently Asked Questions
Do I need to replace the whole pan or just the gasket?
If the pan itself is cracked, rusted through, or the drain plug threads are stripped, you must replace the entire pan. If the pan is in good condition, you can often get away with just replacing the oil pan gasket. However, given the high labor cost, many mechanics recommend replacing the pan and gasket at the same time, especially if the original pan has any corrosion.
Why is the replacement so expensive?
Unlike a simple oil change, replacing the oil pan is a labor-intensive job. On many Buick Regal models, exhaust components, engine mounts, or even the entire front subframe must be removed to access the oil pan bolts. This can take a professional mechanic several hours, making labor the biggest part of the total cost.
Can I replace the oil pan myself?
This is a difficult job for a beginner. It requires safely lifting and supporting the vehicle, and potentially supporting the engine with a hoist while removing mounts or the subframe. If all bolts are not easily accessible, it is best left to an experienced DIYer 🎬 Watch this walkthrough of the oil pan removal process. or a professional mechanic.
What's the difference between an upper and lower oil pan?

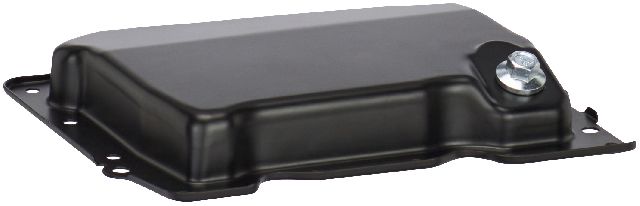

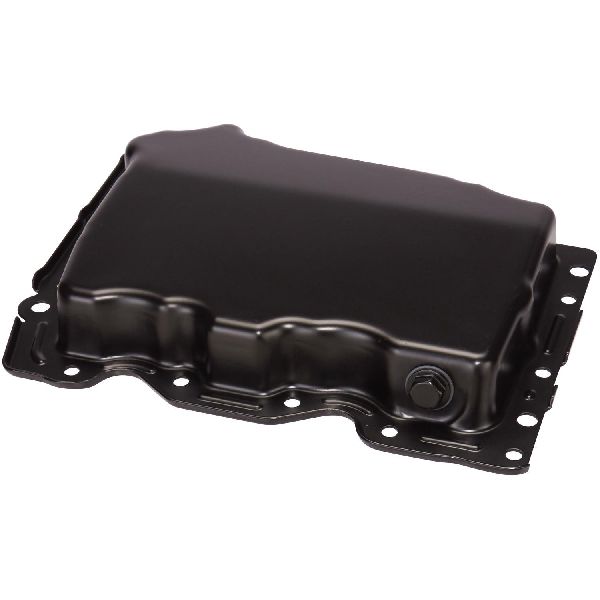

Some engines, particularly certain 2.0L Turbo models, use a two-piece oil pan design. There is a structural upper pan (often aluminum) bolted to the engine block and a simpler lower pan (often steel) that holds the oil and has the drain plug. It's important to identify which part is leaking and order the correct replacement, as they are sold separately.
Helpful Videos

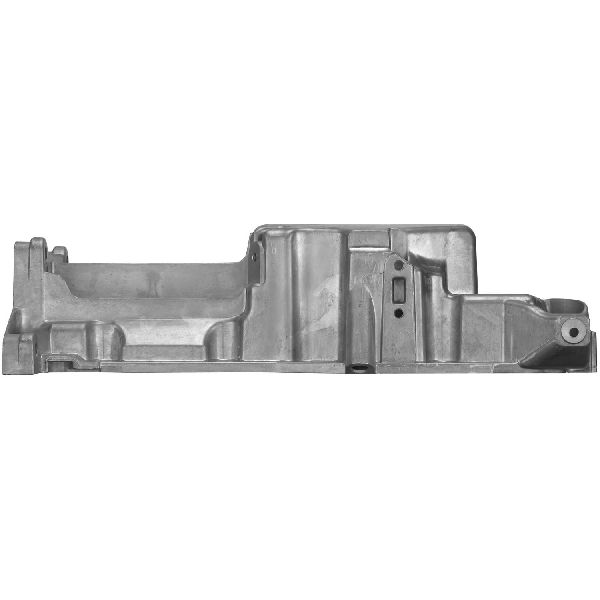

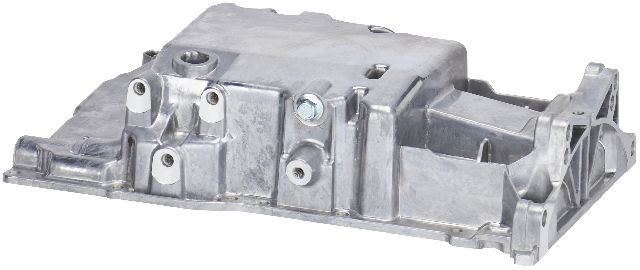

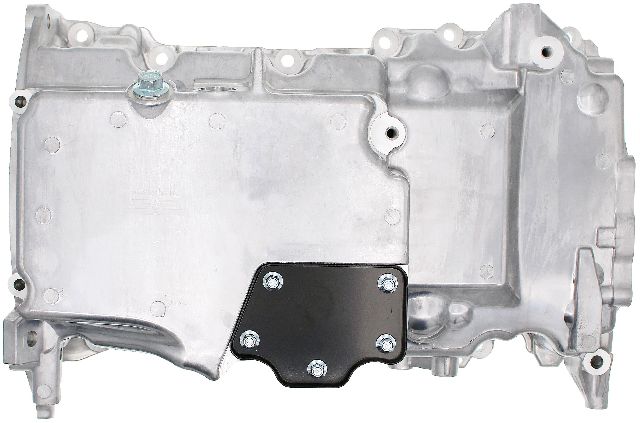

Technical Specifications
OEM Part Numbers: 12601240 12676340 12654318
Material can be stamped steel or cast aluminum depending on the specific engine and model year. Some models use a two-piece design with an upper and lower pan. Always verify the correct part for your specific engine (2.0L Turbo or 2.4L) and drivetrain (FWD or AWD) before purchasing.
