A Guide to Replacing Disc Brake Rotors on the 2011-2017 Lexus CT200h
Address the unique brake vibration and rust issues that affect your hybrid's braking system.
- Choose aftermarket rotors with a full rust-preventative coating to combat the corrosion common on CT200h brakes.
- Always replace brake pads and rotors at the same time, and always replace them in pairs (both front or both rear).
- Vibration when braking is the most common sign of a warped or corroded rotor.
- Be aware of the separate Lexus Customer Support Program for the brake booster assembly if you have a soft pedal or brake system warning lights.
Is It Time to Replace Your CT200h Brake Rotors?
Because of your Lexus's hybrid system, you might experience brake rotor problems differently than on a non-hybrid car. Instead of wearing out from heat and friction, your rotors are more likely to develop issues from rust and lack of use. Watch for these clear signs.
Symptoms of Failing Rotors:
- Vibration or Pulsation: You feel a shaking in the steering wheel or a pulsing in the brake pedal when you brake, especially from speeds above 40 mph. This is the most common symptom, caused by uneven rotor surfaces or warping.
- Grinding or Squealing Noises: Any loud scraping or grinding sound when you press the brake pedal is a serious warning. It could mean the brake pads are completely worn away, but on a CT200h, it can also be caused by heavy rust and pitting on the rotor face.
- Visible Grooves or Rust: A visual inspection can tell you a lot. If you see deep grooves, scoring, or heavy, flaky rust on the rotor's surface, it's time for a replacement.
Important Note on Brake System Warnings
If you are experiencing a soft brake pedal, or if your dashboard shows brake-related warning lights (ABS, Brake, Slip Indicator), this is likely NOT a rotor problem. Lexus has identified a known issue with the Brake Booster and Pump Assembly on these models and has issued a Customer Support Program (CSP) to extend the warranty on these parts. The relevant programs are 21LE01 for 2011-2013 models and 24LE01 for 2014-2017 models. Contact a Lexus dealer with your VIN to see if you are covered, as this is a more complex and critical system failure.
🎬 Watch this video to understand the brake actuator replacement process.Choosing the Right Aftermarket Rotors for Your CT200h
You do not need to buy expensive OEM parts to get great performance. Many aftermarket brands offer excellent quality, often with features better suited for the CT200h's specific needs.
Brand Tiers
- OEM-Quality & Coated Rotors (Recommended): This is the best category for most CT200h owners. Brands like Advics, Bosch (QuietCast), Centric (Premium), and Raybestos offer rotors that meet or exceed original specifications. The key is to choose a rotor with a full rust-preventative coating (often called e-coating or Geomet coating). This coating on the hat and vanes prevents the rust that plagues under-used hybrid brakes, keeping them quiet and performing well for longer.
- Performance Rotors: Brands like Powerstop, EBC Brakes, and Hawk Performance offer kits with drilled or slotted rotors and performance pads. While they offer increased stopping power, they are generally not necessary for a daily-driven CT200h and may create more noise. Powerstop kits are a popular all-in-one option.
- Economy Rotors: Brands like Pronto and other store brands offer a budget-friendly option. These will function safely but typically lack the rust-preventative coatings of premium rotors and may not last as long before vibration or noise issues appear.
Pro Tip: Always replace brake pads when you replace your rotors. Mating old, unevenly worn pads to new, flat rotors is a primary cause of brake squeal and vibration. Also, rotors must be replaced in pairs (both front or both rear) to ensure balanced braking.
Typical Costs for Brake Rotor Replacement (2011-2017 Lexus CT200h)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Rotors (Pair) | $55 - $200 |
| New OEM Rotors (Pair) | $100 - $140 |
| Shop Labor (Pair) | $150 - $300 |
| Total Professional Job (Aftermarket) | $205 - $500 |
Frequently Asked Questions (FAQ)
Do I need special "hybrid" brake rotors?
No, you don't need a rotor specifically marketed for hybrids. However, you should strongly consider a high-quality coated rotor. Because the CT200h's regenerative braking system uses the conventional brakes less, the rotors don't get hot enough to burn off moisture, leading to rust. Coated rotors from brands like Bosch, Centric, or Advics resist this rust buildup far better than uncoated or OEM rotors.
Why are my rear rotors rustier than my front ones?
This is very common on hybrids. The braking system is biased toward the front wheels, and the regenerative system does most of the work there. The rear brakes are used even less than the fronts, making them highly susceptible to corrosion from lack of use.
Can I just replace the brake pads and not the rotors?
While technically possible if the rotors are in near-perfect condition, it's not recommended, especially if you have any vibration. The main issue on the CT200h is rotor condition (rust and warping), not pad wear. Installing new pads on old, uneven rotors will lead to noise, poor performance, and premature pad wear. For a smooth, quiet, and safe job, always replace pads and rotors together.
Is it hard to replace the rotors myself?
For a front rotor replacement, the job is straightforward for a DIYer 🎬 Watch this step-by-step guide for replacing your front rotors. with the right tools. It involves removing the wheel, the brake caliper, and the caliper bracket. The rear brakes can be slightly more complex. 🎬 See how to handle the rear brake pad and rotor replacement. If you are not comfortable, a professional mechanic can do the job in 1-2 hours.
Helpful Videos
Technical Specifications
OEM Part Numbers: 43512-47040 (Front)

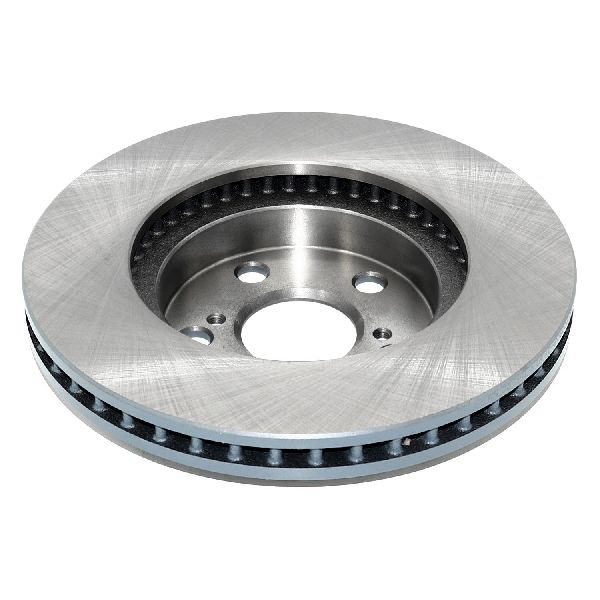

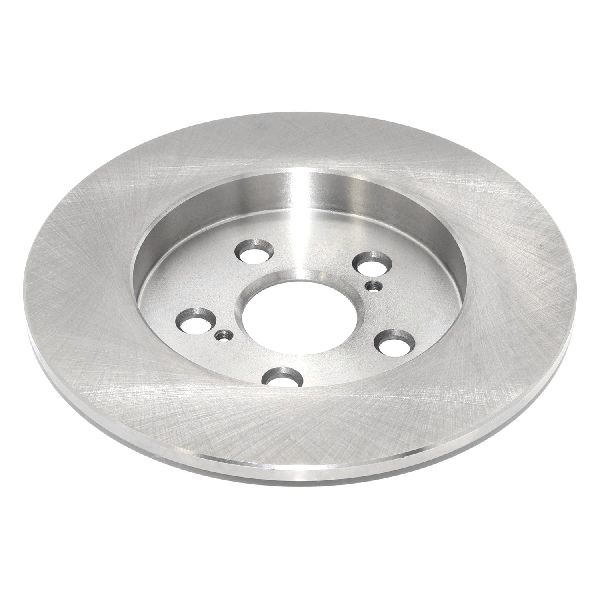

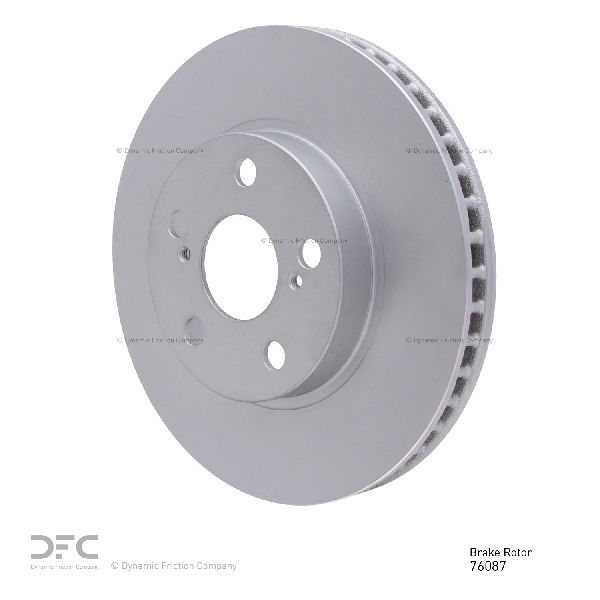

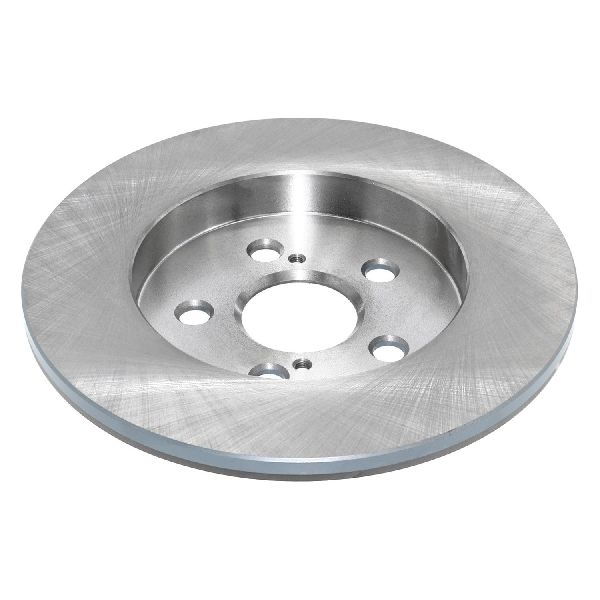

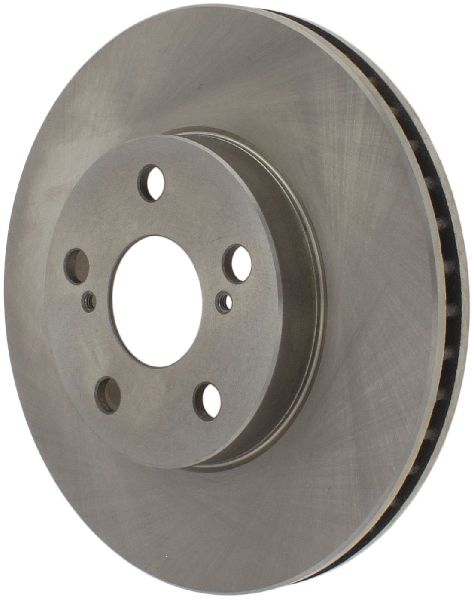

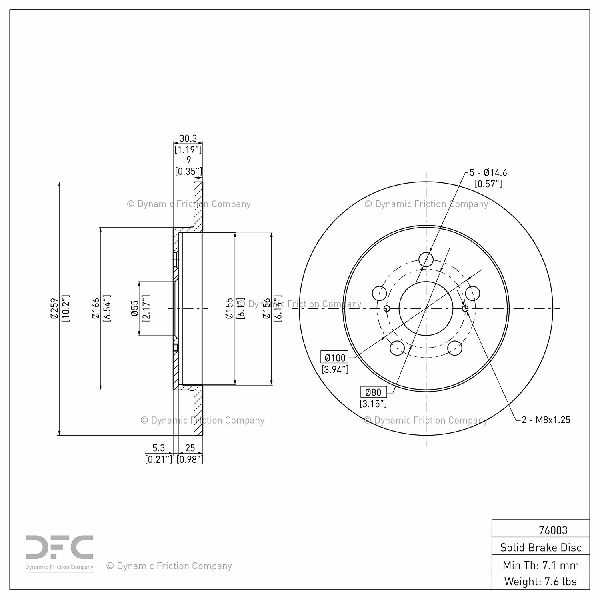

The 2011-2017 Lexus CT200h uses vented front rotors and solid rear rotors. The front rotors have a diameter of approximately 275mm, while the rear rotors are around 259mm. Always verify the exact size for your specific vehicle before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
