Lexus CT200h (2011-2017) Engine Oil Pressure Switch: A Complete Guide
Understanding the signs of a failing oil pressure switch can save your CT200h's engine from serious damage.
- Never drive your CT200h if the red oil pressure light is on; you risk catastrophic engine damage.
- The most common symptom is an illuminated or flickering oil light when the oil level is full.
- Replacement is a simple, low-cost DIY job for those with basic tools, accessible behind the passenger-side front wheel.
- For peace of mind, choose a premium aftermarket brand like Beck Arnley or a quality brand like Standard, Holstein, or Rostra over budget options.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can either fail to warn you of a real problem or give you a false alarm. Ignoring the signs can be risky. If the switch is faulty, you might not get a warning during a genuine low-oil-pressure event, leading to catastrophic engine failure. Here are the most common symptoms for the CT200h:
- Oil Light On or Flickering: The most obvious sign is the oil pressure light on your dashboard illuminating, especially if you've checked the oil level and it's correct. The light might flicker intermittently, particularly at idle or when the engine is warm.
- Incorrect Gauge Reading: If your car has an oil pressure gauge, it might behave erratically, showing zero pressure or being stuck at maximum.
- Check Engine Light: A faulty switch can trigger a Check Engine Light, often with Diagnostic Trouble Code (DTC) P0520, which indicates a malfunction in the sensor's circuit. 🎬 Watch: How to fix the P0520 code for under $10
- Visible Oil Leak: The switch itself can develop a leak. You might see oil seeping from the sensor's body or its electrical connector. One owner reported an oil leak from the pressure sensor area on their CT200h.
Do Not Ignore the Oil Light
If your oil pressure light comes on, stop the vehicle in a safe place and turn off the engine as soon as possible. Driving with low oil pressure can destroy your engine in minutes. Always verify the engine oil level first. If the level is correct, the problem could be the switch or a more serious internal engine issue. Towing the vehicle to a mechanic is the safest option.
Choosing the Right Aftermarket Part
For the CT200h, the original equipment (OEM) oil pressure switch is a reliable choice, but quality aftermarket options can offer significant savings. Aftermarket brands vary in quality, so it's important to choose wisely.
| Brand Tier | Brands | Quality & Value Assessment |
|---|---|---|
| Premium Aftermarket | Beck Arnley | Often sources parts from the original equipment manufacturers. For Japanese vehicles like Lexus, this brand is widely regarded as a top-tier choice that matches OE form, fit, and function. |
| Quality Aftermarket | Standard Ignition (SMP), Holstein, Rostra Powertrain, Facet | These brands represent a solid balance of quality and price. Standard is a major US manufacturer with extensive testing. Holstein claims OE-level quality with a good warranty. Rostra is a US-based, quality-certified OE and aftermarket supplier. Facet is an established Italian brand generally considered a reliable aftermarket choice. |
| Standard / Economy | Global Parts | Information on Global Parts primarily consists of company employee reviews rather than product quality feedback. Without verifiable positive reviews on part quality, it's best to consider this an economy option and proceed with caution. |
Cost to Replace the Engine Oil Pressure Switch
Replacing the oil pressure switch on a CT200h is not an expensive repair. Below are typical cost ranges you can expect.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Part | $40 - $65 |
| New Aftermarket Part | $9 - $86 |
| Shop Labor | $73 - $107 |
| Total Professional Replacement | $138 - $172 |
Frequently Asked Questions (FAQ)
Is replacing the oil pressure switch a DIY job?
Yes, for someone with basic mechanical skills. The switch is accessible after removing the front passenger-side wheel and a small plastic cover. It can be removed with a 24mm deep socket wrench. The total time is typically under an hour. However, always use jack stands for safety and ensure you torque the new switch correctly to prevent leaks.
🎬 See this complete removal and replacement system overviewWhere is the oil pressure switch located on the 2011-2017 Lexus CT200h?
The oil pressure switch is located on the engine block, near the oil filter housing. To access it, you will need to remove the front right (passenger side) wheel.
🎬 Watch: Step-by-step replacement on a similar Toyota hybrid engineAre there any recalls for the oil pressure switch on the CT200h?
No, as of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for widespread failure of the engine oil pressure switch on the 2011-2017 CT200h.
Can a bad oil pressure switch cause the engine to run poorly?
Generally, no. The switch is a simple on/off sensor for the warning light and does not provide variable data to the engine computer for performance adjustments. However, if the switch is leaking oil, the resulting low oil level can cause poor performance and severe engine damage. In some vehicles, a detected fault may put the car into a reduced-power "limp mode."
Helpful Videos
![How to Fix P0520 Engine Code in 4 Minutes [2 DIY Methods / Only $6.92]](https://img.youtube.com/vi/BgVFr_19gZY/mqdefault.jpg)
Technical Specifications

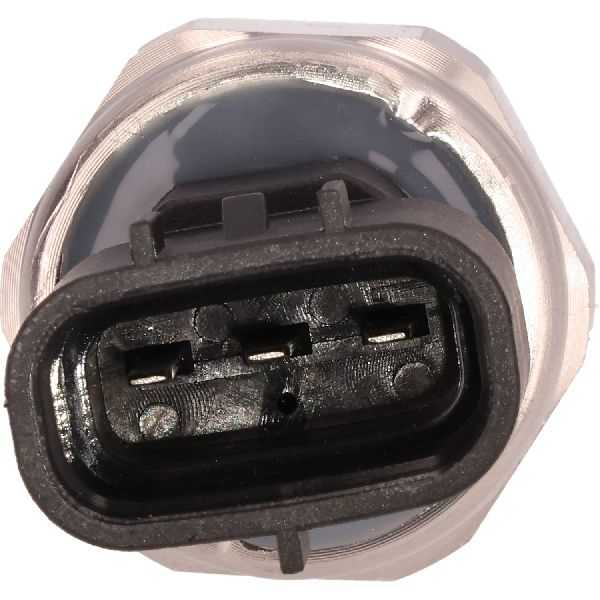

OEM Part Numbers: 83530-60020 83530-28020 83530-0E010 83530-12050 83530-12060
Tool needed: 24mm deep socket wrench. Location: On engine block, accessible from passenger side wheel well.
