BMW X5 Door Lock Actuator Guide for 2011-2018 Models
Having trouble with your BMW X5's door locks? Here's what you need to know before you buy a new actuator.
- Verify if your X5 has the 'Soft-Close' door option before ordering, as the parts are different and not interchangeable.
- Common failure signs include a single door not locking/unlocking or grinding noises from the door.
- Replacement is a feasible DIY for those with some experience, but it requires removing the door panel and working in tight spaces.
- A recall existed for the rear soft-close actuators on some 2014 models for a child-lock issue, but not for standard actuators.
Is Your X5 Door Lock Failing? Common Symptoms
A failing door lock actuator on a 2011-2018 BMW X5 usually gives clear signs. The most common issue is when a single door stops responding to the central lock button or your key fob, while other doors work fine. You might also hear a buzzing, grinding, or clicking sound coming from inside the door when you lock or unlock it. This noise is often the sound of worn internal gears skipping. In other cases, the door might lock or unlock on its own, or you may be unable to open the door from the inside or outside.
Don't Get Stuck
A completely failed actuator can leave a door stuck in the locked position, making it very difficult to open and replace. It's best to address the issue when you first notice symptoms.
Choosing the Right Aftermarket Actuator
When replacing the door lock actuator, you have options outside of the expensive dealership part. However, quality can vary. It's important to choose the right part for your specific X5, as models with the Soft-Close Automatic (SCA) door option use a different, more complex actuator. Always verify if your vehicle has this feature before ordering.
- Premium Aftermarket (e.g., Vemo): Brands like Vemo are often original equipment (OE) suppliers to BMW for various parts. They are considered a high-quality replacement that closely matches the performance and longevity of the original part. These are a reliable choice for both standard and soft-close systems.
- Quality Aftermarket (e.g., Standard Ignition, URO Parts): These brands offer a good balance of quality and price. They are established manufacturers that produce reliable parts. For example, URO Parts are a known aftermarket option for this component.
- Value-Tier (e.g., Replacement): While the lowest price is tempting, be cautious with generic, unbranded actuators. Forum users and repair videos sometimes report issues with the cheapest parts, such as loud operation or failing shortly after installation.
A Note on Installation
The original factory bolts for the actuator are often self-tapping. This means the new actuator you receive may not have threads in the mounting holes. This is normal. The threads are created when you install the original bolts.
Known Issues for 2011-2018 BMW X5
There was an official recall for a small number of 2014 BMW X5 models equipped with the Soft-Close Automatic (SCA) door option. The recall addressed an issue where the rear child safety lock could disengage due to the lock mechanism being manufactured improperly. While this didn't affect all vehicles, it highlights the complexity of the soft-close system. No other widespread recalls or TSBs have been issued for standard door lock actuators on this generation.
Frequently Asked Questions
Can I replace just one door lock actuator?
Yes. The actuators are individual units. You only need to replace the one that has failed. However, since they all have similar life spans, it's not uncommon for another one to fail months or years later.
Is this a difficult DIY job?
It is considered an intermediate-level repair. You must be comfortable removing the interior door panel, carefully peeling back the vapor barrier (which is sealed with sticky butyl tape), and working in a tight space inside the door. The driver's door is slightly more complicated because of the manual key lock cylinder. It can take 2-4 hours for a first-timer.
What's the difference between a standard and a soft-close actuator?

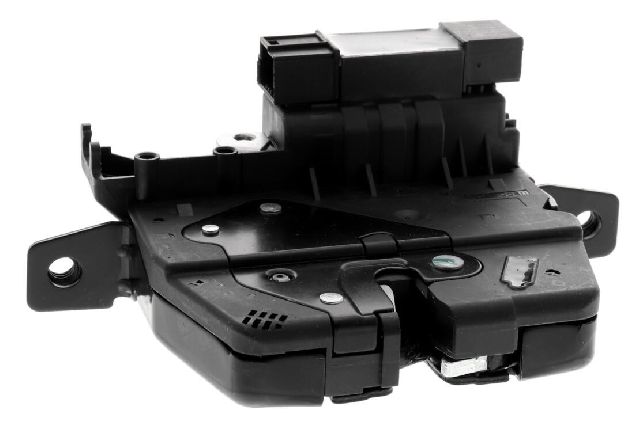

A standard actuator only locks and unlocks the door. A soft-close actuator is a larger, more complex assembly that does both locking/unlocking AND has a second motor and Bowden cable that automatically pulls the door to a fully latched position. They are not interchangeable, and the soft-close version is more expensive.
Do I need to program the new actuator?
No, a new door lock actuator does not require any programming or coding. It is a plug-and-play component. You should be able to install it, reconnect the battery, and have it function immediately.
Technical Specifications
OEM Part Numbers: 51217229458 51217229461 51217315019 51217315022 51207419841
The primary specifications are the door position (e.g., Front Left), the vehicle production year, and whether the vehicle is equipped with the Soft-Close Automatic (SCA) door option (S323A). These factors determine the correct part number.
