A Guide to the Transmission Filter Kit for the 2011-2018 Chevrolet Express 2500
Keep your workhorse van's transmission protected by understanding its most important maintenance part.
- Ensure you are buying a kit for the 6L90 transmission, which is standard in 2011-2018 Express 2500 vans.
- Always remove the old filter seal from the transmission case before installing the new filter to prevent leaks.
- Consider reusing the original metal-and-rubber pan gasket if it is in good condition, as it is often superior to aftermarket cork gaskets.
- Use only DEXRON-VI transmission fluid to avoid damaging your transmission.
Is it time to change your transmission filter?
A clogged transmission filter starves the transmission of fluid, leading to serious problems. Because the 2011-2018 Express 2500 is equipped with the heavy-duty 6L90 transmission, it's important to watch for signs of trouble, especially under heavy use. Ignoring these symptoms can lead to expensive transmission damage.
Key Symptoms of a Failing Transmission Filter:
- Harsh or Delayed Shifting: If your van hesitates or slams into gear, it could be due to low fluid pressure from a clogged filter.
- Transmission Shudder: A vibration that feels like driving over rumble strips, especially under acceleration, can be a sign of contaminated fluid and torque converter issues. 🎬 See how to address the Chevy Shudder with a fluid service.
- Whining or Grinding Noises: Unusual noises from the transmission, particularly when in gear, can indicate fluid starvation.
- Overheating: A clogged filter restricts fluid flow, reducing cooling and causing the transmission to run hot, which can lead to a burning smell.
- Limp Mode: The vehicle may enter a "limp mode" with reduced power to prevent catastrophic damage when a serious transmission problem is detected.
Choosing the Right Aftermarket Filter Kit
When servicing your transmission, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For the 2011-2018 Express 2500, the OEM filter is made by ACDelco. Aftermarket brands like Wix, ATP, and Premium Guard offer alternatives that can be more budget-friendly.
| Brand Tier | Brands | General Quality & Notes |
|---|---|---|
| Premium Aftermarket | Wix | Wix is a well-respected brand known for producing filters that meet or exceed OEM specifications. They are often considered a reliable alternative to the factory part. |

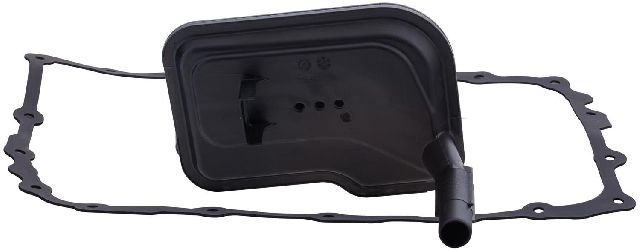

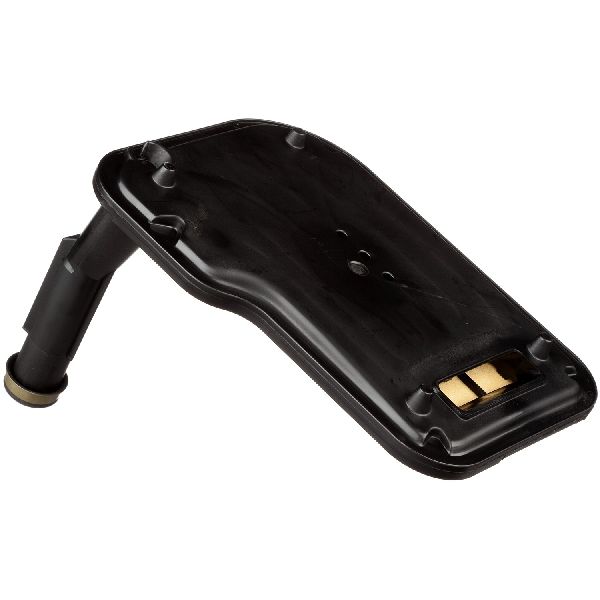

| Standard Aftermarket | ATP, Premium Guard | ATP and Premium Guard are popular choices that offer good value. ATP is noted for its "third hand" gaskets that have slightly smaller holes to hold bolts in place during installation, which can be helpful. While generally considered reliable for normal use, always ensure the kit comes with a quality gasket. |
| OEM | ACDelco | This is the original part your van came with. It guarantees a perfect fit and performance designed by GM. Many professional mechanics prefer to reuse the original metal-and-rubber OEM pan gasket if it's in good shape, as it is often superior to the cork or paper gaskets included in some aftermarket kits. |
A Note on Gaskets
The quality of the pan gasket is just as important as the filter. A low-quality gasket can leak, leading to fluid loss and transmission damage. The original ACDelco gasket is a reusable steel-and-rubber design that many mechanics prefer. If your aftermarket kit comes with a simple cork or paper gasket, inspect it carefully and consider buying a higher-quality gasket separately.
🎬 Watch a professional walkthrough of the filter and gasket replacement process.Installation Tips & Known Issues
Replacing the transmission filter on an Express 2500 is a moderately difficult job that can be done by a skilled DIYer. The process involves safely lifting the vehicle, draining the fluid, dropping the transmission pan, replacing the filter, cleaning the pan and magnet, and reinstalling everything with a new gasket.
🎬 Watch this step-by-step 6L90 transmission fluid and filter change guide.Pro Tip: One of the most critical steps is to ensure the old filter seal (a small o-ring) is removed from the transmission housing. It often gets stuck inside when the old filter is pulled out. If the new filter is installed without removing the old seal, it will cause a major fluid leak and immediate transmission problems.
There are no major recalls or Technical Service Bulletins (TSBs) specifically for the transmission filter on the 2011-2018 Express 2500. However, there have been recalls for later model years (2022-2023) related to transmission control module software, but these do not pertain to the physical filter or service procedure for the 2011-2018 models.
Frequently Asked Questions (FAQ)
How often should I change my transmission filter?
For severe service, which includes heavy hauling, towing, or extensive idling common for work vans, GM recommends a fluid and filter change around every 45,000 miles. For less strenuous use, you can extend this interval, but regular changes are key to a long transmission life.
Do I need to do a full transmission "flush"?
Many shops and forums advise against a high-pressure "flush," especially on higher-mileage transmissions. A simple pan drop, filter change, and fluid refill is the manufacturer-recommended procedure. This replaces about half the fluid, and it's a safe and effective way to maintain your transmission.
What type of transmission fluid do I need?
The 6L90 transmission in the 2011-2018 Express 2500 requires DEXRON-VI automatic transmission fluid. Using the wrong fluid type can cause severe internal damage.
Is the filter the same for all Express 2500 vans in this year range?
For the 2011-2018 model years, the Express 2500 was primarily equipped with the 6-speed 6L90 automatic transmission, which uses a specific filter (OEM part number 24236933). However, it is always best to verify your specific engine and transmission combination before ordering parts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24236933 24236517
This filter kit is for the General Motors 6L90 (MYD) 6-speed automatic transmission. The filter media is typically felt or a high-flow synthetic blend. The kit should include the filter and a new filter neck seal. Pan gasket may be sold separately or included.
