Engine Oil Pressure Switch Guide for the 2011-2019 Buick LaCrosse
Understand the signs of a failing oil pressure switch and choose the right replacement for your LaCrosse.
- Always check your oil level first when the oil light comes on.
- A bad sensor can cause false warnings, but you should not drive until you confirm it's not a real oil pressure problem.
- For the 3.6L V6, the sensor is often near the oil filter, but access can be tight.
- Reputable aftermarket brands like Standard Ignition or Walker Products are solid alternatives to more expensive OEM parts.
Is Your Buick LaCrosse Oil Pressure Switch Failing?
A faulty oil pressure switch can be a source of major stress. It can give false warnings, making you think your engine has a serious problem when it doesn't. Or worse, it can fail to warn you when there is a real issue. Knowing the symptoms of a bad switch helps you diagnose the problem correctly.

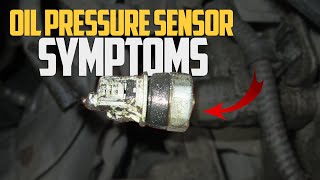

🎬 Watch: A clear explanation of bad oil pressure sensor symptoms.Symptoms of a Bad Oil Pressure Switch
- Flickering or Incorrect Gauge Reading: If your LaCrosse has an oil pressure gauge, you might see it behave erratically. It could be stuck on zero, maxed out, or jump around for no reason.
- Oil Pressure Light On or Flashing: The most common sign is the oil pressure warning light coming on, even when the oil level is correct. It might stay on constantly or flash intermittently.

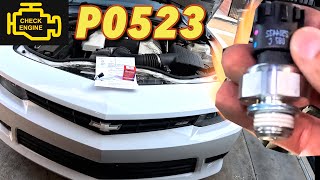

- Check Engine Light: A failing sensor can send incorrect data to the car's computer, triggering the Check Engine Light. This may be accompanied by diagnostic trouble codes (DTCs) like P0520, P0521, P0522, or P0523. 🎬 See how to diagnose and fix the P0523 high voltage code.
- Oil Leaks: The switch itself can develop a leak over time. You might notice oily residue on the sensor or drips under the engine near its location.
Don't Ignore the Warning Light
Never assume the warning light is just a bad sensor. Always check your engine oil level immediately. If the oil level is fine but the light stays on and you hear ticking or knocking noises from the engine, stop driving and have your vehicle towed. This could indicate a real and severe loss of oil pressure that can destroy your engine.
Choosing an Aftermarket Oil Pressure Switch
For the 2011-2019 Buick LaCrosse, the original equipment (OEM) switch is a reliable choice, but quality aftermarket parts can offer good performance for a lower price. Aftermarket brands often focus on meeting or exceeding OEM specifications. Here's a look at some available brands:
- Standard Ignition (SMP): A well-regarded aftermarket brand with a long history. They often manufacture parts in North America and emphasize quality control and testing to ensure accurate readings. Some forum users express trust in Standard Motor Products, sometimes preferring them over OEM parts.
- Walker Products: Walker is another established brand that engineers its sensors to meet OE specifications for fit and performance. They focus on durability and accurate data transmission to the vehicle's computer.
- URO Parts: URO Parts are often positioned as a budget-friendly alternative to OEM parts. While some of their components are well-received, forum discussions suggest their electronic parts, like sensors, can have mixed reliability. Some users report early failures, while others have no issues.
- Global Parts & True Tech: These brands are typically found in the value-oriented tier. They provide a functional replacement at a low cost, but long-term durability and accuracy may not match premium aftermarket or OEM parts.
OEM vs. Aftermarket for Your LaCrosse
For a critical sensor like this, spending a little more on a reputable aftermarket brand like Standard or Walker is often a wise investment over the cheapest option. While an OEM part from GM is a safe bet, a quality aftermarket part can provide similar reliability for less money. Some owners have reported issues with aftermarket oil filters causing pressure problems, so always use a quality filter when you change your oil.
Cost of Replacing the Engine Oil Pressure Switch
The total cost depends on whether you do the job yourself or hire a mechanic. The part itself is not expensive, but labor can add up depending on where the switch is located on your specific engine.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $23.80 - $65.68 |
| New OEM GM Switch | $60 - $90 |
| Shop Labor | $117 - $171 |
| Total Professional Replacement | $140 - $261 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on a 2011-2019 Buick LaCrosse?
The location can vary depending on the engine. On the 3.6L V6 engine, the sensor is often located at the bottom front of the engine, near the oil filter housing and behind the alternator. On some V8 models from a similar era, it is located at the back of the engine block, which can make it more difficult to access. Always consult a repair manual for your specific year and engine combination.
Can I drive my LaCrosse with a bad oil pressure switch?
It is not recommended. If the switch is faulty, you have no reliable way of knowing if your engine has safe oil pressure. Driving with low oil pressure can cause catastrophic engine damage. It's best to diagnose the issue promptly.
Is replacing the oil pressure switch a DIY job?
Yes, for many people with basic hand tools, this is a manageable DIY repair. It typically involves disconnecting the battery, unplugging the sensor's electrical connector, and using a special deep socket or wrench to unscrew the old sensor and install the new one. However, access can be tight, especially on V6 models where it may be behind other components.

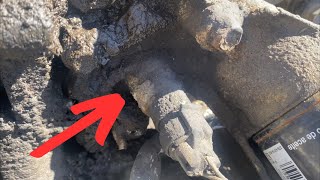

🎬 Watch: 3.6L engine oil pressure sensor location and replacement walkthrough.Are there any recalls for the oil pressure switch on the Buick LaCrosse?
A search of NHTSA records did not find any recalls specifically for the engine oil pressure switch for the 2011-2019 Buick LaCrosse. There are some Technical Service Bulletins (TSBs) for GM vehicles that mention low oil pressure warnings, but these often point to other issues like a sticking oil pump relief valve or problems with aftermarket oil filters.
Helpful Videos
![How to Fix P0523 Engine Code in 4 Minutes [2 DIY Methods / Only $6.68]](https://img.youtube.com/vi/8X0Kowu5CFU/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 12677836 12621234 12596951
The sensor is a 3-pin switch that threads into the engine block or oil filter housing. It uses a diaphragm to measure pressure and sends an electrical signal to the ECU. Most replacements come with thread sealant pre-applied.
