A Ford Fiesta Owner's Guide to the Brake Light Switch (2011-2019)
Don't let a small switch cause big problems with your brake lights or cruise control.
- A bad brake light switch is a common cause for brake lights, cruise control, and shift interlock problems on the 2011-2019 Fiesta.
- This is a critical safety repair. Do not drive your vehicle if you know the brake lights are not working.
- For this electronic part, choosing the OEM Motorcraft brand is highly recommended for long-term reliability.
- Replacement is simple, located by the brake pedal, and can be done by a DIYer in under 30 minutes.
Is Your Ford Fiesta Brake Light Switch Failing?
A faulty brake light switch can cause some confusing problems. Because it's tied into several of your car's systems, the symptoms aren't always just about the brake lights. Before you start replacing expensive bulbs or checking complex wiring, it's important 🎬 Watch: Common symptoms of a failing brake light switch to see if this simple switch is the culprit.
Common Symptoms of a Bad Switch
- Brake Lights Don't Work: This is the most obvious and dangerous symptom. If none of your brake lights turn on when you press the pedal, the switch is a likely cause.
- Brake Lights Stay On: A stuck switch can leave your brake lights on constantly, draining your battery and confusing drivers behind you.
- Cruise Control Won't Engage: If the switch is faulty, it might incorrectly tell the car's computer that the brakes are being applied, which prevents the cruise control from turning on.
- Can't Shift Out of Park: For safety, your Fiesta requires the brake pedal to be pressed before you can shift out of 'Park'. A bad switch won't send that signal, leaving your shifter locked.
- Warning Lights on Dash: A failing switch can trigger a check engine light or an Electronic Stability Control (ESC) warning light on your dashboard. You might see the diagnostic trouble code (DTC) P0504 if you scan the vehicle.
Safety First: A Critical Repair
Driving without working brake lights is illegal and extremely dangerous. It significantly increases your risk of being rear-ended. If you confirm your brake lights are not working, do not drive the vehicle.
Choosing the Right Aftermarket Brake Light Switch
When it comes to electronic parts on a modern car like the Fiesta, quality matters. While saving a few dollars is tempting, a cheap, poorly made switch can fail quickly, putting you right back where you started. Here’s a breakdown of the brands available.
Brand Quality Tiers
- Tier 1: Motorcraft (OEM)
Motorcraft is Ford's own parts brand. Choosing a Motorcraft switch is the same as getting the part from a Ford dealer. It's built to the exact factory specifications for fit and performance. For a critical electronic part like this, going with the OEM brand is the safest bet for reliability and avoiding future issues. - Tier 2: Standard Ignition (Aftermarket)
Standard Ignition (also known as SMP) is a well-established aftermarket manufacturer that produces a wide range of automotive parts. Their products are generally considered a reliable alternative to OEM parts and are a good choice if the OEM option is not available or if you're looking for a solid mid-range option. - Tier 3: Value Brands (VNE, etc.)
Value-focused brands offer the lowest price point. However, for a part that communicates with your car's computer and controls a key safety feature, quality can be a concern. Forum users have reported that cheap aftermarket switches for the Fiesta can fail prematurely. It may be worth spending a few extra dollars for a more reputable brand to avoid doing the job twice.
Pro Tip: Check for Debris First
Before you buy a new part, take a flashlight and look at the brake pedal and switch. Sometimes, a floor mat that has slid forward or a piece of debris can get lodged and prevent the switch from working correctly. A quick check could save you time and money.
Installation Overview
Replacing the brake light switch on a 2011-2019 Fiesta is a straightforward job that most DIYers can handle in under 30 minutes.
- Locate the Switch: It is found in the driver's footwell, attached to the brake pedal support bracket. You will likely see two switches; the brake light switch is typically the black one, while a blue one may be for cruise control deactivation.
- Disconnect Wiring: Carefully unplug the electrical connector from the switch.
- Remove the Old Switch: The switch is usually held in place by a simple twist-lock mechanism. Turn it counter-clockwise (about 45 degrees) to unlock it and pull it out.

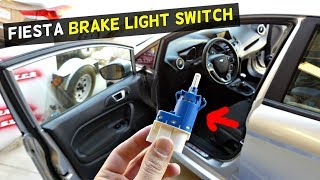

- Install the New Switch: Insert the new switch and turn it clockwise to lock it into place. Reconnect the wiring harness. 🎬 See this step-by-step Ford Fiesta switch replacement walkthrough
- Test: Have a friend stand behind the car to confirm the brake lights work when you press the pedal. Also, check that they turn off when you release it.
Frequently Asked Questions (FAQ)
Are there any recalls for the Fiesta brake light switch?
No active recalls specifically target the brake light switch for the 2011-2019 Ford Fiesta. While Ford has issued recalls for brake light issues on other models, none apply directly to this part on this vehicle.
Why did my cruise control stop working when the brake light switch failed?
Your car's cruise control system is designed to automatically disengage when you press the brake pedal. If the brake light switch is faulty and sending a constant 'brakes on' signal to the computer, the cruise control will not be allowed to engage as a safety precaution.
Can I just replace the brake light bulbs?
If only one brake light is out, a burnt-out bulb is the likely cause. However, if all three brake lights (left, right, and center) stop working at the same time, it is very unlikely that all the bulbs failed simultaneously. The problem is almost certainly electrical, with the brake light switch or a fuse being the most common culprits.
What is a P0504 code?
P0504 is a generic diagnostic trouble code (DTC) for "Brake Switch A/B Correlation." Your Fiesta's computer receives two signals from the brake switch to ensure it's working. If these signals don't match up (e.g., one says the pedal is pressed and the other says it's not), the computer logs this code and may disable related systems like cruise control.

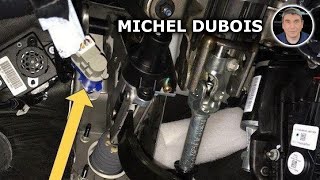

🎬 Watch: Understanding the P0504 fault code and correlation errorsHelpful Videos
Technical Specifications
OEM Part Numbers: AA6Z-9C888-A BE8Z-13480-A GL3Z-13480-A
Located on the brake pedal support bracket. Typically a black, 4-pin, twist-lock style switch.
