Ford Fiesta Windshield Washer Pump Guide (2011-2019)
If your windshield washers have stopped spraying, this guide will help you diagnose the issue and find the correct replacement pump for your Fiesta.
- The 2011-2019 Fiesta uses one dual-action pump for both front and rear washers.
- Before replacing the pump, always check fuse F15 behind the glove box.
- Replacement is a simple DIY task, accessible through the passenger-side wheel well.
- Avoid mixing different types of washer fluid to prevent clogs that can damage the pump.
Is Your Windshield Washer Pump Failing?
A non-working windshield washer can be a safety issue, especially in bad weather. For the 2011-2019 Ford Fiesta, the cause is usually simple. Here are the common signs that your washer pump has failed or is having problems.
Symptoms of a Bad Washer Pump
- No Fluid Spray: When you activate the washer switch, nothing comes out of the nozzles for either the front or rear windows.
- No Pump Sound: You should hear a distinct humming sound from the front passenger side of the car when the washer is activated. If it's silent, the pump motor has likely failed. 🎬 See how to diagnose and test a failing washer pump.
- Pump Runs, But Spray is Weak or Absent: This often points to a clogged pump inlet or blocked washer lines. Using different brands of washer fluid can sometimes create a gel or slime that clogs the system.
- Strange Electrical Behavior: A common issue reported by Fiesta owners is that the wipers will cycle when the pump is electrically disconnected, but nothing happens when it's plugged in. This often indicates a shorted or failed pump confusing the vehicle's computer (BCM).
- Fluid Leaking: You might notice a puddle of blue, green, or orange fluid under the front passenger side of the car. The pump's seals can fail, or the housing can crack, causing leaks.
Check the Fuse First
Before buying a new pump, always check the fuse. The washer pump fuse for the Fiesta is typically Fuse F15 (a 15-amp fuse) located in the fuse panel behind the glove box. A blown fuse is a simple and cheap fix.
Choosing the Right Aftermarket Pump
When replacing the washer pump on your Fiesta, you have a few options. While an OEM part from Ford guarantees a perfect match, high-quality aftermarket brands offer comparable performance and reliability at a good price.
- OEM (Ford): The original part (P/N: BE8Z-17664-A) is a direct replacement. It's the most expensive option but removes any guesswork.
- ACDelco: While often associated with GM vehicles, ACDelco produces high-quality replacement parts for many makes and models. They are known for their durability and adherence to OE specifications.
- Trico: A well-known brand in wiper and washer systems, Trico offers replacement pumps designed to match OEM fit and function. They are a reliable choice for a cost-effective repair.
For a component like a washer pump, both ACDelco and Trico are trusted brands that provide a dependable alternative to the more expensive OEM part.
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New OEM | $36 - $58 | $100 - $150 | $136 - $208 |
| New Aftermarket (ACDelco, Trico) | $42 - $56 | $100 - $150 | $142 - $206 |
| Used OEM | $20 - $40 | $100 - $150 | $120 - $190 |
Costs are estimates and may vary based on your location and specific vehicle condition. The provided aftermarket price range is based on our inventory.
DIY Replacement Information
Replacing the washer pump on a 2011-2019 Fiesta is a straightforward job that most DIYers can handle in under an hour. The pump is located on the bottom of the washer fluid reservoir, which is in the front passenger-side wheel well.
You can access it without removing the whole reservoir. The basic steps involve safely jacking up the vehicle, removing the front passenger wheel, removing a few screws from the fender liner, and pulling it back to expose the pump. From there, you simply disconnect the electrical plug and hoses, and pull the old pump out of its rubber grommet. Installation is the reverse of removal.

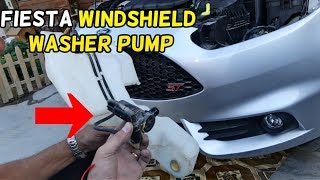

🎬 Watch this step-by-step guide to replacing the pump yourself.Common Ordering & Installation Mistake
After installing a new pump, some owners report that the controls are reversed (i.e., the front washer button sprays the rear window). This happens when the two hoses are connected to the wrong outlets on the new pump. Before disconnecting the old pump, note which hose goes to which outlet, or test it before putting the fender liner back in place.
Frequently Asked Questions (FAQ)
Is the front and rear washer pump the same on a Ford Fiesta?
Yes, the 2011-2019 Ford Fiesta uses a single pump for both the front and rear washers. The pump motor reverses direction to send fluid to either the front or rear nozzles.
Where is the windshield washer pump located?
The pump is press-fit into a grommet at the bottom of the washer fluid reservoir. You can access it by removing the front passenger-side wheel and pulling back the plastic fender liner.
Can I replace the washer pump myself?
Yes, this is considered an easy DIY job. It requires basic tools, a jack, and jack stands. The process typically takes less than an hour.
Are there any recalls for the Ford Fiesta washer pump?
As of early 2026, there are no specific recalls for the windshield washer pump on the 2011-2019 Ford Fiesta. A recall for other Ford models involved fluid contamination but did not apply to this Fiesta generation.
Helpful Videos
![Problèmes de lave-glace sur Ford Fiesta IV [RÉSOLUS]](https://img.youtube.com/vi/GMz2nAs7eMk/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: BE8Z-17664-A AE8Z-17664-A
Single motor, dual-outlet, reversible polarity pump.
