Ram 2500 Windshield Washer Pump Guide for 2011-2020 Models
If your washer fluid isn't spraying, a bad pump is a common problem—here's how to choose the right new aftermarket part for your truck.
- A failed washer pump is a common, easy-to-fix issue; diagnosis is key.
- Before replacing the pump, check for clogged screens, disconnected hoses, and blown fuses.
- Replacement is a simple DIY job, typically taking less than an hour with basic tools.
- Quality aftermarket brands like Trico and Crown offer reliable performance for a fraction of the Mopar price.
Is Your Windshield Washer Pump Failing?
A bad washer pump is a common issue on Ram 2500 trucks, but it's simple to diagnose. Before you buy a new part, do a few quick checks. 🎬 Watch: Step-by-step diagnosis for your Ram washer system. First, make sure you have fluid in the reservoir. Next, listen for the pump when you activate the switch. If you hear nothing, the pump motor has likely failed or you have an electrical issue like a blown fuse. If you hear the pump humming but no fluid comes out, the pump's internal parts may have failed, or you could have a blockage somewhere else in the system.
Common Problems Besides a Bad Pump
Ram owners report a few other common issues that can mimic a failed pump. It's worth checking these before you spend money on a new part.
- Clogged Inlet Screen: The small filter screen at the pump's inlet can get clogged with slime or debris from old washer fluid. This can cause a weak spray or no spray at all, even if 🎬 See how to fix a weak spray on your truck. the pump motor is running.
- Disconnected Hoses: The washer fluid hoses, especially the connections under the hood's insulation liner, can pop off or crack. This often results in fluid leaking under the hood instead of spraying onto the windshield.
- Frozen Nozzles: In cold weather, the nozzles on the hood can freeze over, blocking the spray. Pouring warm water over them can solve this issue.
Known Issues & Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) for the windshield washer pump on the 2011-2020 Ram 2500. However, a recall (NHTSA 22V-035) was issued for 2019-2020 models concerning the windshield wiper arms potentially loosening. This does not affect the pump itself but relates to the overall wiper system.
Choosing the Right Aftermarket Pump
For the Ram 2500, the windshield washer pump is a simple part that is easy to replace, making an aftermarket option an excellent value. You don't need to pay the high price for an OEM Mopar part unless you prefer to keep your truck all-original.
Brand Tiers for Aftermarket Pumps
- Quality Aftermarket (Trico, Crown Automotive): Brands like Trico are well-known for wiper and washer system components and offer direct-fit, reliable pumps. Crown Automotive specializes in parts for Dodge and Jeep vehicles and is considered a solid alternative to Mopar. These brands provide a great balance of quality and price.
- Budget Aftermarket (URO Parts): URO Parts and similar brands are the most affordable. While they meet basic specifications, reviews for other vehicles can be mixed regarding long-term durability. For a part this inexpensive and easy to change, spending a few extra dollars on a mid-tier brand is often a good investment.
Pro Tip: When you replace the pump, it's a good idea to also replace the small rubber grommet that seals the pump to the reservoir. These can get old and brittle, causing leaks. Many new aftermarket pumps include a new grommet in the box.
Cost of a New Windshield Washer Pump (2011-2020 Ram 2500)
| Part Type | Estimated Part Cost |
|---|---|
| New OEM (Mopar) | $40 - $110 |
| New Aftermarket | $13.87 - $140.20 |
| Shop Labor | $91 - $134 |
Frequently Asked Questions
How hard is it to replace the washer pump on a Ram 2500?
It is a very easy DIY job that most owners can do in under an hour. Access is typically gained by either removing some clips in the passenger-side front wheel well to pull back the fender liner or by removing the front grille. The pump itself just pulls out of the reservoir grommet and has one electrical connector and one hose to detach.

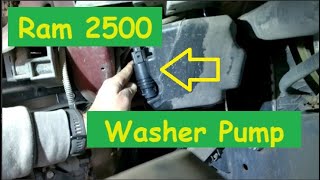

🎬 Watch this video for a complete pump replacement walkthrough.My pump makes noise but no fluid sprays. Is the pump bad?
Not always. If the pump motor runs, the problem could be a clogged inlet screen on the pump itself, clogged nozzles on the hood, or a cracked/disconnected fluid hose under the hood. Always check for these simple blockages before replacing the pump.
Do I need a special tool to replace the pump?
No special tools are required. Basic hand tools like a socket set (for grille bolts) and a trim tool or flathead screwdriver (for fender liner clips) are usually all that's needed. A bucket to catch the old washer fluid is also recommended.
Is an aftermarket pump a reliable choice for my truck?
Yes. For a simple component like a washer pump, a quality aftermarket brand offers performance that is very similar to the OEM part at a much lower cost. Given the ease of replacement, it's a cost-effective and reliable repair for most owners.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68071576AA 5152076AC 68440465AA 68418427AA
The pump is a 12V electric motor that press-fits into a rubber grommet at the base of the windshield washer fluid reservoir. It typically features one inlet port (from the reservoir) and one or two outlet ports for the hoses leading to the windshield nozzles.
