A Guide to Replacing the Starter on a 2011-2020 Toyota Sienna
Everything a Sienna owner needs to know when their van won't start and it's time for a new starter.
- Always test the battery before replacing the starter; the symptoms are nearly identical.
- Denso is the original equipment manufacturer (OEM) and is the most recommended brand for reliability and fit.
- Starter replacement is a feasible DIY job for this Sienna, requiring basic tools and about 1-2 hours.
- There are no specific recalls or TSBs for the starter, but a faulty fuel pump can cause similar no-start issues.
Is Your Toyota Sienna Starter Failing?
A bad starter can leave you stranded, but its symptoms often look just like a dead battery. Before you decide to replace the starter, always have your battery tested first. Most auto parts stores will test it for free. If the battery is healthy and fully charged, the problem is likely the starter motor.
Common Symptoms of a Bad Starter
- Single Loud Click: You turn the key and hear one sharp "CLICK" from the engine bay, but the engine doesn't crank. This is the starter's solenoid engaging, but the motor itself isn't spinning.
- No Sound at All: You try to start the van, the dashboard lights come on, but you hear nothing. This can point to a complete electrical failure within the starter or its solenoid.
- Slow, Labored Cranking: The engine turns over very slowly, like the battery is weak. If you've already confirmed the battery is good, this means the starter motor is worn out and drawing too much power.
- Intermittent Starting: The Sienna starts perfectly one time but fails the next. This unpredictability is a classic sign of a starter that is about to fail completely. 🎬 Watch: A visual guide to identifying common starter failure symptoms.
Pro Tip: A quick way to tell the difference between a bad battery and a bad starter is to turn on your headlights before trying to start the engine. If the headlights dim significantly when you turn the key, your battery is probably weak. If they stay bright, the starter is the more likely culprit.
Choosing the Right Aftermarket Starter for Your Sienna
When shopping for a replacement, you'll find several brands. The original starter that came in your Sienna from the factory was made by Denso. Choosing the right aftermarket brand depends on your budget and how long you plan to keep your van.
Brand Quality Tiers

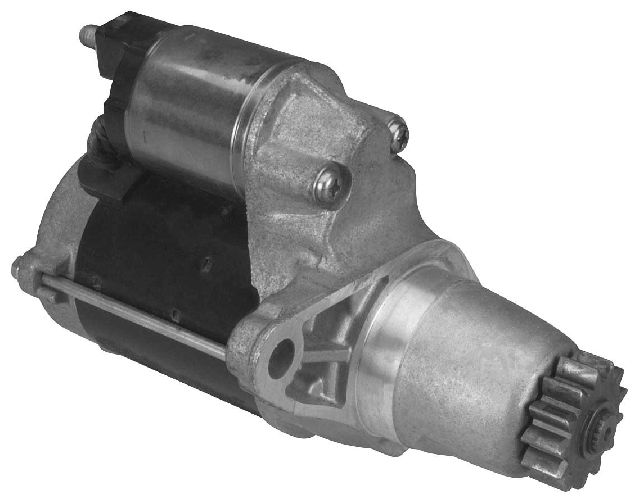

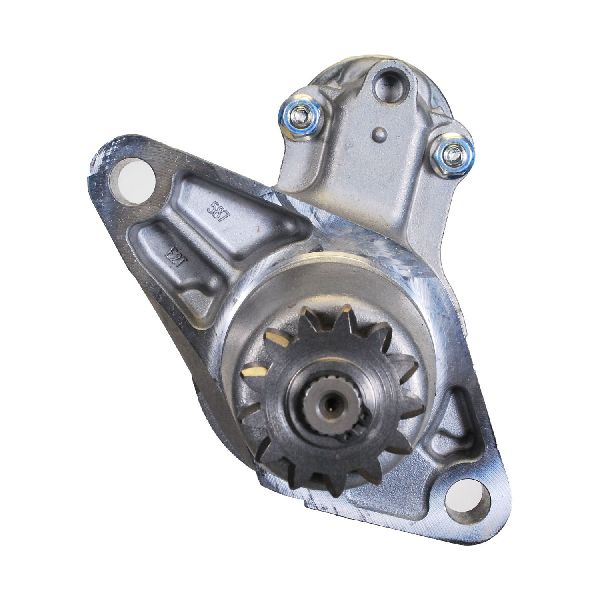

- OEM-Equivalent (Denso): Buying a new Denso starter from an aftermarket supplier is the closest you can get to the original part's quality and longevity without paying dealer prices. It is highly recommended for its reliability and perfect fit.

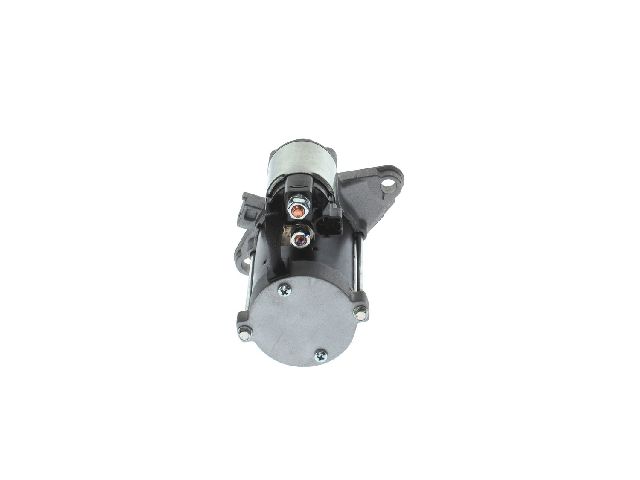

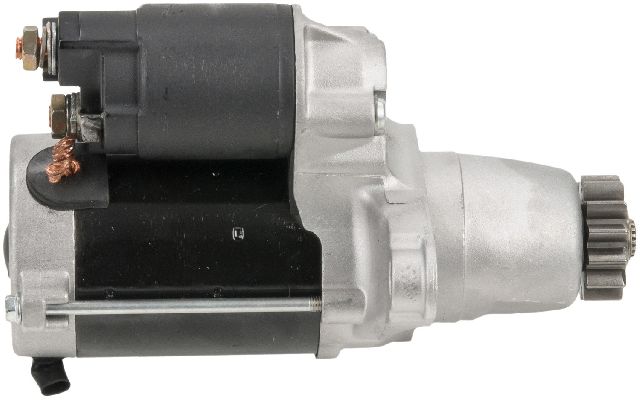

- Premium Aftermarket (Bosch): Bosch is a well-respected manufacturer that produces high-quality new and remanufactured starters. They are an excellent alternative to Denso, often built to meet or exceed original specifications and sometimes come with a longer warranty.

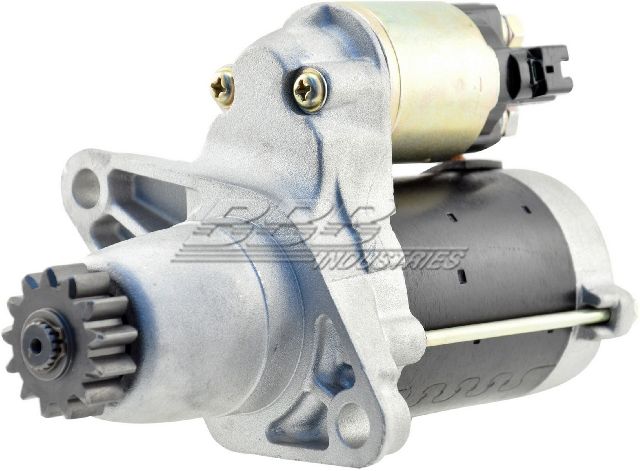

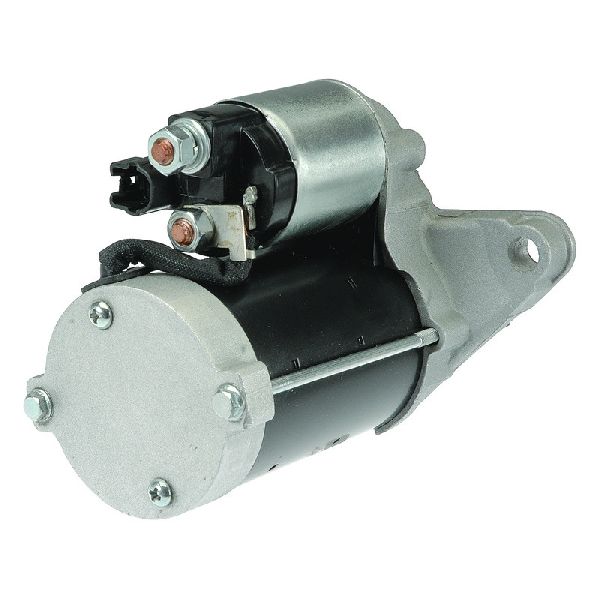

- Standard Aftermarket (Remy, WAI Global, BBB Industries): These brands offer a good balance of price and quality. Remy has a long history with starters, while WAI Global is known for producing new (not remanufactured) units. They provide a reliable solution for daily drivers and are a significant step up from generic, unbranded parts.
How Much Does a Toyota Sienna Starter Replacement Cost?
Replacing the starter on a 2011-2020 Sienna is more affordable than on many other V6 vehicles. The job is straightforward enough for many owners to do themselves, which can save a significant amount on labor.
| Part or Service | Estimated Cost |
|---|---|
| New OEM (Dealer) Part | $215 - $355 |
| New Aftermarket Part | $97 - $354 |
| Shop Labor | $115 - $250 |
| Total Professional Replacement (Aftermarket Part) | $220 - $600+ |
Note: Costs are estimates and can vary based on your location and the specific parts chosen.
Known Issues, Recalls, and Service Bulletins
There are no recalls or common Technical Service Bulletins (TSBs) from Toyota specifically for the starter motor on the 2011-2020 Sienna. However, be aware that a widespread recall for the low-pressure fuel pump affected many Toyota models, including the Sienna. A failing fuel pump can also cause a no-start condition, so a proper diagnosis is important to avoid replacing the wrong part.
Frequently Asked Questions (FAQ)
Can I replace the starter on my Sienna myself?
Yes, this is a very DIY-friendly job for someone with basic tools. The starter is located under the air intake housing at the top of the engine. The process involves removing the battery and the air filter box assembly to gain access. A home mechanic can typically complete this job in 1-2 hours.
🎬 See this easy DIY walkthrough for replacing the 3.5L V6 starter.What tools are needed to replace the Sienna starter?
You'll need a basic socket set with a ratchet and extensions. The key socket sizes are 10mm (for the battery and airbox), 12mm (for the starter's electrical nut), and 14mm (for the two starter mounting bolts).
🎬 Watch a mechanic perform a complete starter removal and replacement.Is a remanufactured starter a good option?
High-quality remanufactured starters from brands like Denso or Bosch can be excellent, reliable options. However, the quality of remanufactured parts can be inconsistent, especially from lesser-known brands. For peace of mind, a new starter from a reputable brand like Denso or Bosch is often the safest bet.
My van has a push-button start. Could the problem be my key fob?
Yes, if your key fob battery is dead, the car may not detect the key and will not start. Before assuming the starter is bad, try holding the key fob directly against the push-to-start button when you press it. If the van starts, you just need to replace the small battery in your key fob.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28100-0V012 28100-0P110 28100-0A011 28100-0A010
Engine: 3.5L V6 (2GR-FE). The starter is typically a 1.4kW or 1.6kW gear reduction unit. Key tool sizes for replacement are 10mm, 12mm, and 14mm sockets.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
