A Guide to the Engine Oil Pressure Switch for the 2011-2024 Audi S3
Understanding the oil pressure warning light on your Audi S3 and how to choose the right replacement switch.
- Never drive with the red oil pressure light on; stop immediately and have the vehicle towed.
- Before replacing the switch, rule out a low oil level and have a mechanic check for known TSBs or wiring issues.
- Many S3 models use two pressure switches (often brown and blue/grey); it's wise to identify the correct one or replace them as a pair.
- For reliability, choose a high-quality aftermarket brand known for being an OEM supplier, such as Hella, Vemo, or CRP.
Is Your Audi S3's Oil Pressure Light On?
A red oil can symbol flashing on your dashboard is one of the most serious warnings your Audi S3 can give you. While it can indicate a severe engine issue, it often points to a much simpler and less expensive problem: a faulty engine oil pressure switch. This sensor can fail by leaking, sending false signals, or getting stuck. Before assuming the worst, it's important to understand the symptoms, check for common related issues, and know how to select a quality replacement part.
STOP! Do Not Drive Your Vehicle.
If the red oil pressure warning light is on, stop the car in a safe place and turn off the engine immediately. It is not safe to continue driving because you cannot be sure if it's a faulty sensor or a true lack of oil pressure, which can destroy your engine in minutes. Always have the vehicle towed for diagnosis.
Common Symptoms of a Failing Oil Pressure Switch

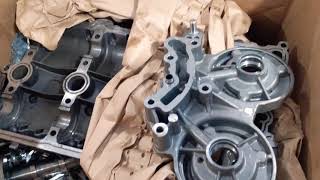

- Oil Pressure Warning Light: The most common sign is the red oil pressure light on the instrument cluster. It might stay on constantly or flicker, especially at idle or higher engine speeds. 🎬 Watch: Diagnosing a low oil pressure warning at warm idle.
- Check Engine Light: A faulty switch can send incorrect data to the car's computer, triggering the Check Engine Light.
- Oil Leaks: The switch itself can develop leaks over time. You might notice oil residue on the sensor or dripping from its location near the oil filter housing.
Known Issues for the Audi S3 (2011-2024)
Before you replace the switch, be aware of these known issues that can produce the same symptoms:
- Technical Service Bulletin (TSB 2041093/4): Audi issued a TSB for a condition that perfectly mimics a faulty oil pressure switch. A small rubber plug inside the oil filter housing can become dislodged or fail, causing a drop in pressure reading that triggers the warning light. This is a known issue and should be investigated before replacing sensors. 🎬 See how to fix an intermittent oil pressure warning.
- Safety Recall (21H7 / 22V178): While not for all model years in this range, a safety recall was issued for some Audi vehicles due to an oil strainer for the turbocharger becoming blocked. This blockage can lead to a lack of lubrication and trigger the oil warning light.
- Wiring and Connectors: The wiring harness and connector for the switch live in a harsh engine environment. Heat and oil can cause the plastic and wires to become brittle and fail, leading to false warnings. Always inspect the connector for damage or oil contamination.
Choosing the Right Aftermarket Oil Pressure Switch
Your Audi's engine relies on accurate sensor readings. While a cheaper part is tempting, a low-quality switch can fail prematurely or have incorrect pressure ratings, putting your engine at risk. Aftermarket brands offer a range from OEM-quality to budget-friendly options.
Aftermarket Brand Quality Tiers
| Tier | Brands | Description |
|---|---|---|
| Top Tier (OEM/OES) | Hella, Vemo, CRP (Rein) | These brands are often the original equipment manufacturers for Audi. Choosing one of these is the safest bet for dealer-level quality, fit, and accurate pressure readings without the dealership price. |

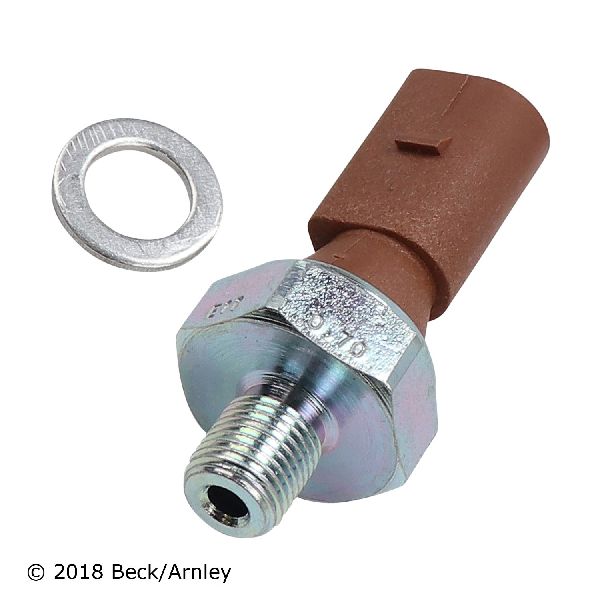

| Mid Tier (Trusted Aftermarket) | Beck Arnley, Standard Ignition | These are well-established brands with a reputation for quality. Beck Arnley is known for sourcing parts from OE suppliers, providing a reliable alternative. Standard Ignition is also a trusted name for electronic components. |

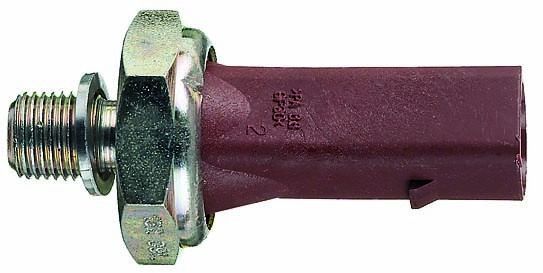

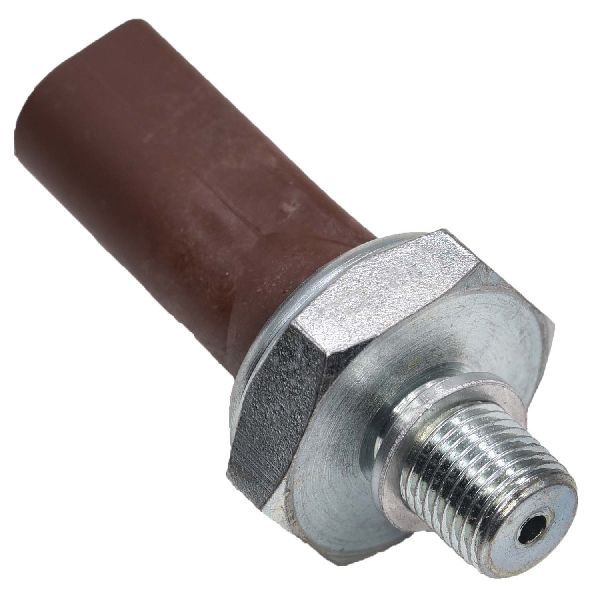

| Standard Tier | Facet, Walker Products, Rostra Powertrain | These brands provide a functional, budget-friendly repair. Facet is a European manufacturer with a long history. While generally reliable, they may not have the same stringent validation as OEM-supplier brands. |
Pro Tip: Check for Multiple Switches
Many Audi 2.0T engines use a two-stage oil pressure system with two separate switches, often color-coded (e.g., a brown low-pressure switch and a blue or grey high-pressure switch). It is often recommended to replace them in pairs. Always verify the correct part number and color for your specific S3 before ordering.
🎬 Watch this walkthrough for replacing the oil pressure sensor.Frequently Asked Questions (FAQ)
Is it safe to drive with the oil pressure light on?
No. You should pull over and shut the engine off immediately. Driving with a potential low oil pressure condition can cause catastrophic engine failure within minutes. It is impossible to know if the warning is from a bad sensor or a real lack of pressure without a proper diagnosis.
How do I know if it's the switch or a real oil pressure problem?
First, check your oil level. If the level is correct, the only way to know for sure is to have a mechanic test the engine's actual oil pressure using a mechanical gauge. This test will confirm if the pressure is within specification. If the pressure is good, the switch or its wiring is likely the culprit.
Where is the oil pressure switch located on my Audi S3?
The oil pressure switch (or switches) is typically located on the oil filter housing. Depending on the engine generation, there may be one or two switches, often distinguished by color.
Should I use an OEM or aftermarket oil pressure switch?
For a critical sensor like this, a high-quality aftermarket part from an OEM-supplier brand like Hella, Vemo, or CRP is a reliable and cost-effective choice. While cheaper options exist, sticking with a trusted brand ensures accuracy and durability that your Audi engine requires.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06K919081 06H919081A 06K919081C 06D919081B 06A919081J
Typically located on the oil filter housing. Some engines utilize a two-switch system with different pressure ratings and connector colors (e.g., brown, blue, grey, black). Thread size is commonly M10x1. Requires a deep 24mm socket for removal/installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
