Chevrolet Suburban Engine Coolant Temperature Sensor Guide (2011-2024)
Understanding the signs of a failing engine coolant temperature sensor in your Suburban can prevent bigger problems down the road.
- A bad ECT sensor can cause poor fuel economy, overheating, and a check engine light with codes like P0117, P0118, or P0128.
- For the common P0128 code, inspect the thermostat as well, as it is a frequent cause of the issue on Suburbans.
- Replacement is simple, requiring basic tools, and can be done in under 30 minutes with minimal coolant loss.
- For best results, choose an OEM-equivalent brand like ACDelco or Delphi to ensure proper function and longevity.
Is Your Suburban Showing Signs of a Bad Coolant Sensor?
A failing Engine Coolant Temperature (ECT) sensor can cause a surprising number of problems. Because the engine's computer relies on this sensor for accurate information, a bad reading can make your Suburban run poorly. You might notice the engine overheating, using more gas than usual, or even see black smoke from the exhaust. Recognizing these symptoms early can save you from more serious engine trouble.

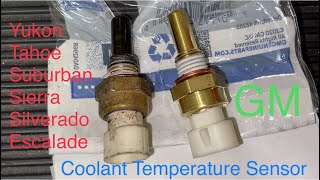

🎬 Watch: Common signs and symptoms of a bad ECT sensorA Common Point of Confusion: Sensor vs. Thermostat
Many symptoms of a bad ECT sensor are similar to those of a failing thermostat. Specifically, the trouble code P0128 (Coolant Temperature Below Thermostat Regulating Temperature) is very common on these Suburbans. While this code can be caused by a bad sensor, forum discussions and mechanic reports frequently point to a thermostat stuck open as the actual culprit. If you have a P0128 code, it's wise to inspect the thermostat as well as the sensor.

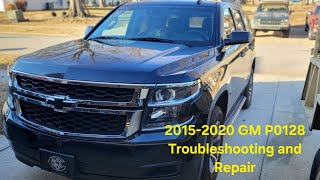

🎬 See how to troubleshoot and repair the P0128 trouble codeChoosing the Right Aftermarket Sensor
When it's time to replace your ECT sensor, you have several options. The choice between a premium and a budget part often comes down to reliability and peace of mind.

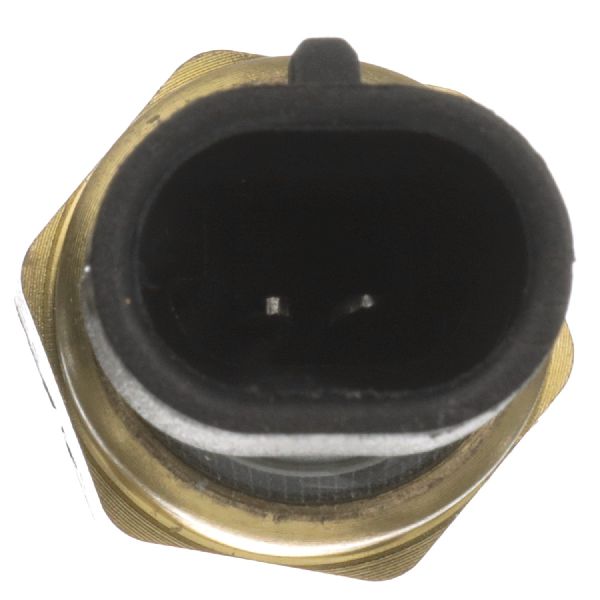

Tier 1: OEM and OEM-Equivalent Brands (ACDelco, Delphi)
For a vehicle like the Suburban, using parts from Original Equipment Manufacturers (OEM) or their suppliers is often the best choice. ACDelco is GM's official parts brand, and their sensors are considered the genuine OEM replacement. Delphi is another top-tier brand that has a long history of supplying parts to GM. Choosing one of these brands ensures you get a part that meets the original factory specifications for performance and durability.

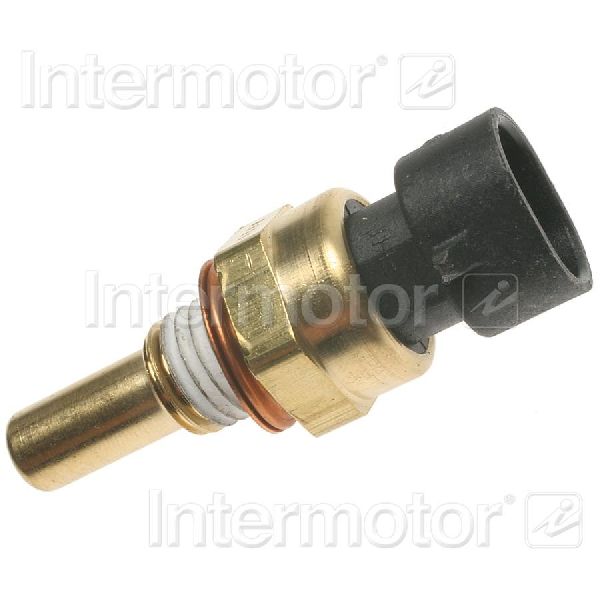

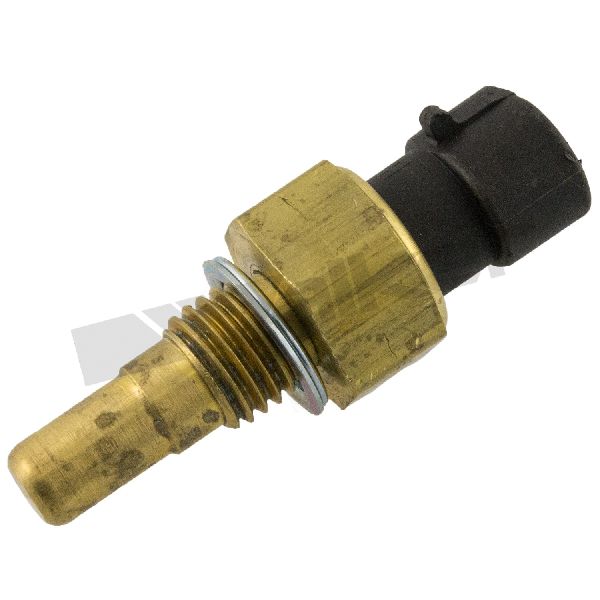

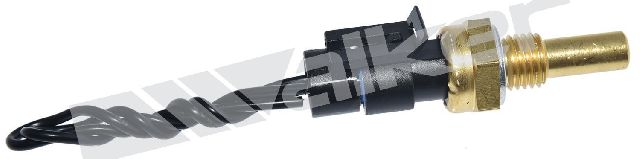

Tier 2: Reputable Aftermarket Brands (NGK, Standard Ignition, Hella, Walker Products)
Brands like NGK, Standard Ignition (Standard), Hella, and Walker Products are well-known in the aftermarket world. They produce quality parts that are designed to be reliable alternatives to OEM components. These are a solid choice if you're looking for a good balance between price and quality.

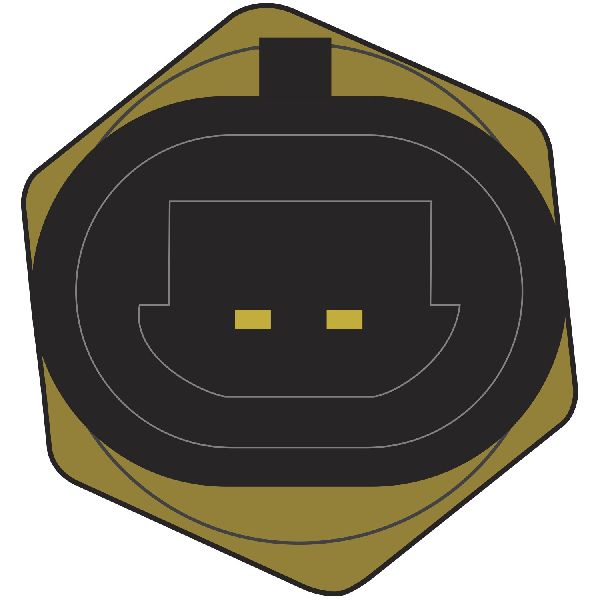

Tier 3: Budget-Friendly Options (Global Parts, True Tech, Facet)
These brands offer a more affordable solution. While they can get your vehicle back on the road, their long-term durability and the precision of their temperature readings may not match the higher-tiered brands. They can be a viable option for a quick fix or if budget is the primary concern.
Pro Tip: When replacing the sensor, it's a good time to inspect the electrical connector for any corrosion or damage. A bad connection can cause the same symptoms as a failed sensor. Some sensors come with thread sealant already applied, but if not, use a small amount of appropriate sealant to prevent leaks.
Cost to Replace a Suburban Coolant Temperature Sensor
The cost for this repair is very reasonable, especially if you do it yourself. The part itself is inexpensive, and the labor involved is minimal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $15.70 - $42.08 |
| New OEM Sensor (ACDelco) | $30 - $60 |
| Shop Labor | $50 - $100 |
| Total (DIY) | $15.70 - $42.08 |
| Total (Shop Repair) | $65 - $142 |
Frequently Asked Questions
Where is the engine coolant temperature sensor located on a 2011-2024 Suburban?
On most V8 engines in this generation of Suburban, the ECT sensor is located on the driver's side of the engine, near the front. It is typically screwed into the cylinder head, close to the thermostat housing. You will need to remove the plastic engine cover to see it.
Can I replace the ECT sensor myself?
Yes, this is a very DIY-friendly repair. It usually requires only basic hand tools, like a deep socket and ratchet (often 19mm). The key is to work on a cool engine and to swap the old sensor for the new one quickly to minimize coolant loss. Many owners can complete the job in under 30 minutes.

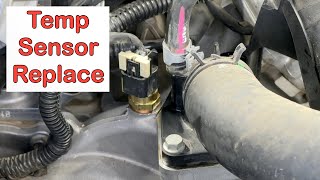

🎬 Watch this step-by-step sensor replacement walkthrough for your SuburbanWhat happens if I don't replace a bad coolant sensor?
Ignoring a bad ECT sensor can lead to several issues. You'll likely experience poor fuel economy because the engine runs in a rich fuel state. In some cases, it can cause the engine to overheat without warning, potentially leading to severe engine damage. It can also cause the cooling fans to run constantly, even after the engine is off, which can drain your battery.
Are there any recalls for the Suburban coolant temperature sensor?
As of early 2026, there are no specific NHTSA safety recalls for the engine coolant temperature sensor on 2011-2024 Chevrolet Suburbans. However, a Technical Service Bulletin (PI1513B) was issued for some 2015 models regarding coolant leaks from the radiator caused by excessive thermostat cycling, which can be related to temperature management.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12608814 15326388 12191170 15369305
Typically a 2-pin, M12 thread sensor that functions as a thermistor, changing resistance based on temperature.
