Dodge Durango Brake Caliper Guide: Replacement and Upgrades (2011-2024)
Everything you need to know before replacing a brake caliper on your 2011-2024 Dodge Durango.
- Check your VIN for the 2015-2016 caliper recall (NHTSA S16) before starting any repair.
- Sticking or seized calipers are a common issue; symptoms include pulling to one side and a burning smell.
- Always replace calipers in pairs (both front or both rear) to ensure safe, balanced braking.
- Consider coated aftermarket calipers for better corrosion resistance, especially in rust-belt states.
Is Your Dodge Durango's Brake Caliper Failing?
Brake calipers on the 2011-2024 Dodge Durango can fail, most commonly from sticking or seizing. This happens when the caliper's pistons or slide pins corrode and can no longer move freely. When a caliper sticks, it may not release the brake pad from the rotor, causing constant friction. This can lead to a dangerous pull to one side, overheating, and rapid wear of your pads and rotors.
Key Symptoms of a Bad Caliper:
🎬 Watch: How to diagnose a bad caliper on your vehicle- Vehicle Pulling: The most common sign. Your Durango pulls to the left or right when you apply the brakes, or even while driving straight if the caliper is fully seized.
- Uneven Brake Pad Wear: When inspecting your brakes, you might notice the pads on one wheel are significantly more worn than the others.
- Burning Smell: A seized caliper creates intense heat from the constant friction, often resulting in a distinct, acrid burning smell from the affected wheel area.
- Visible Brake Fluid Leak: Fluid leaking from around the wheel is a sign of a failed seal in the caliper piston, which is a critical safety issue.
- Spongy or Soft Brake Pedal: If a caliper is leaking fluid, you'll lose hydraulic pressure, causing the pedal to feel soft or sink towards the floor.
- Grinding or Squealing Noises: While often a sign of worn pads, these noises can also be caused by a malfunctioning caliper that isn't allowing the pads to sit correctly.
Known Issue: NHTSA Recall S16 (16V-168)
A specific safety recall was issued for some 2015-2016 Dodge Durango models built between December 9, 2015, and January 13, 2016. The left front brake caliper housing may have been made from an incorrect material, creating a risk of it rupturing under hard braking. This could significantly increase stopping distance. Before purchasing a part, use your VIN to check with the NHTSA or a Dodge dealer to see if your vehicle was affected and if the recall work was completed.
Choosing the Right Aftermarket Caliper for Your Durango
You don't need to buy the expensive OEM part from the dealer. Aftermarket calipers often meet or exceed OEM specifications and offer better value. They generally fall into three categories:

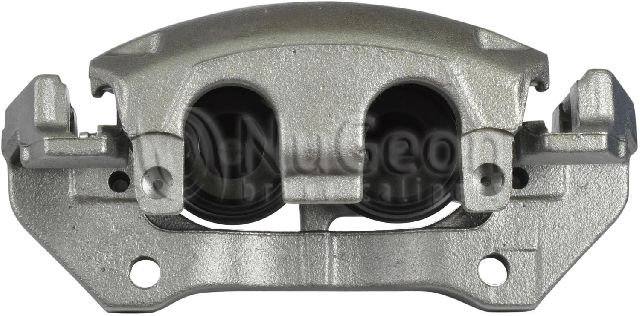

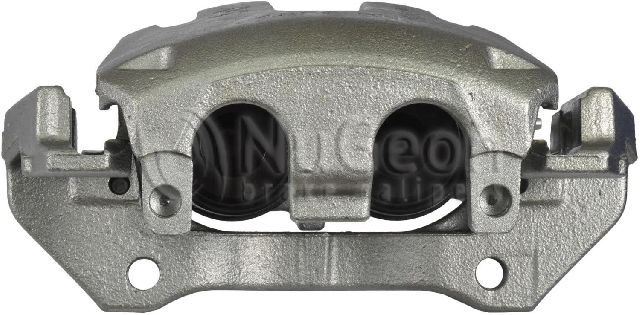

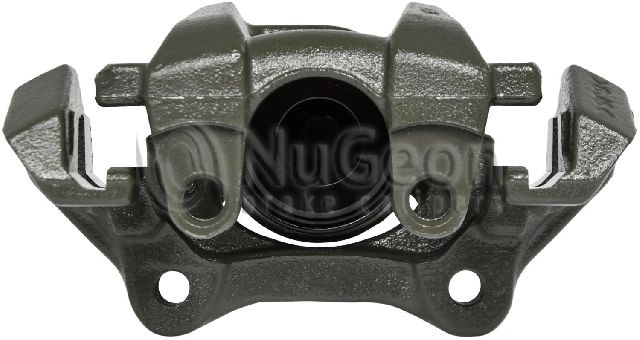

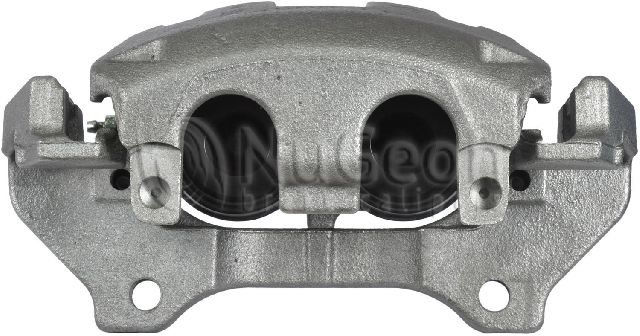

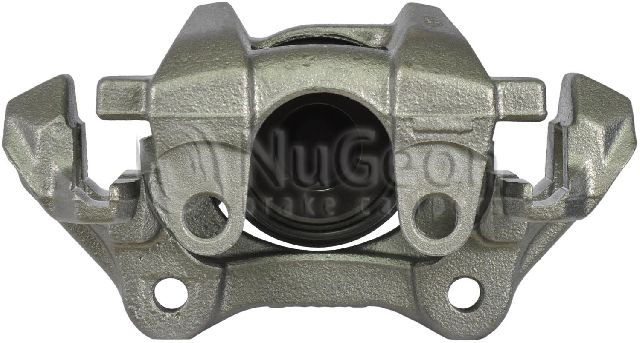

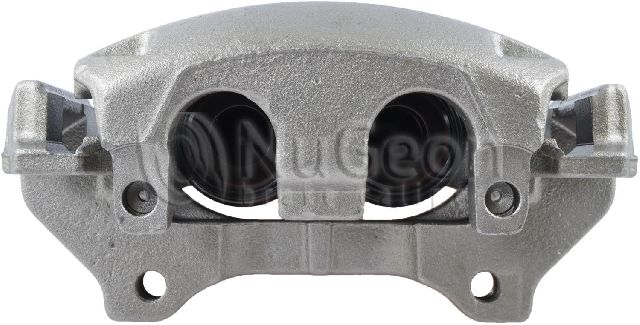

- Standard Remanufactured Calipers (e.g., Cardone, BBB Industries): These are original calipers that have been rebuilt with new seals, boots, and pistons. They are a cost-effective solution for daily driving and will restore original braking performance. 🎬 See this walkthrough for replacing front brakes and calipers Many come without a bracket, so you will reuse your old one.
- New Aftermarket Calipers (e.g., Centric, Dynamic Friction, Raybestos): These are brand-new parts, not rebuilt. Many are available with a protective coating (often zinc or another finish) that provides superior rust and corrosion resistance. This is a smart upgrade if you live in a region with snow and road salt, as corrosion is a primary cause of caliper seizure on the Durango.
- Performance Calipers (e.g., PowerStop): These are often sold in signature colors like red and are designed for better performance. They may feature upgraded pistons or construction for better heat dissipation. Consider a performance caliper if you frequently tow with your Durango or engage in spirited driving, as they help reduce brake fade under heavy use.
Pro Tip: When replacing a caliper, it's highly recommended to replace the flexible rubber brake hose connected to it, especially on older Durangos. These hoses can degrade internally over time and hold pressure, mimicking the symptoms of a seized caliper.
How Much Does a Dodge Durango Caliper Replacement Cost?
The cost depends on whether you do the job yourself or take it to a shop. Aftermarket parts offer significant savings over OEM.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Caliper (Single) | $59 - $183 |
| Shop Labor | $150 - $250 per caliper |
| Total Professional Replacement (Per Caliper) | $210 - $435+ |
Note: Costs are estimates and can vary by location and the specific parts chosen. It is best practice to replace calipers in pairs (both front or both rear) to ensure even braking. 🎬 Watch: Step-by-step guide to replacing rear Durango brakes
Frequently Asked Questions
Should I replace my brake calipers in pairs?
Yes. It is always recommended to replace calipers on the same axle at the same time. A new caliper will behave differently than an old, worn one, and replacing only one can lead to unbalanced braking and pulling.
What is a "loaded" vs. "unloaded" caliper?
An "unloaded" or "semi-loaded" caliper is just the caliper itself, sometimes with the mounting bracket. A "loaded" caliper comes complete with new brake pads and all necessary hardware already installed. If your pads are also due for replacement, a loaded caliper can save time and ensure all components are new.
Can I upgrade to the bigger SRT or Brembo brakes?
Yes, it is a popular but expensive modification. Upgrading a standard Durango to the larger SRT Brembo brakes requires not just the calipers, but also larger rotors, specific pads, and often different wheels to provide enough clearance for the massive calipers. It is not a simple bolt-on swap.
Do I need special tools to replace a Durango caliper?
For the most part, you'll need standard mechanic's tools. However, some 2011-2024 Durango models use an 11mm hex bit socket for the caliper slide pins, which is not a common size in all toolkits. You will also need a tool to press the caliper piston back, a torque wrench, and supplies for bleeding the brakes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68138843AA CBBAS161AA
Fits 2011-2024 Dodge Durango. Calipers can be floating single or dual-piston designs depending on the trim level and year. Performance models (R/T, SRT) use larger, multi-piston fixed calipers (Brembo). Standard models typically use an 11mm hex bit for caliper pin removal.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
