Ram 1500 Engine Valve Cover Gasket Set Guide (2011-2024)
Seeing smoke or smelling burning oil? Your Ram's valve cover gaskets might be the problem.
- Valve cover gasket leaks are very common on 2011-2024 Ram 1500s, especially the 5.7L HEMI.
- The most obvious signs are a burning oil smell and visible oil on the side of the engine.
- Premium aftermarket brands like Fel-Pro or Victor Reinz are highly recommended for a reliable, long-lasting seal.
- While you have things apart, it's a great time to also replace spark plugs, especially if you find oil in the plug tubes.
Is Your Ram 1500 Leaking Oil From the Top of the Engine?
A common issue for the 2011-2024 Ram 1500, especially with the 5.7L HEMI engine, is a leaking valve cover gasket. Over time, the constant heat from the engine causes the original rubber gaskets to become hard and brittle. They shrink and crack, losing their seal. This allows oil to seep out, making a mess and causing other problems. This is a typical wear item, and seeing a leak after 40,000 miles is not uncommon.
Symptoms of a Bad Valve Cover Gasket
Ignoring a leaky valve cover gasket can lead to bigger issues. If you notice any of these signs, it's time to inspect your engine.
🎬 Watch: Common signs and symptoms of a failing gasket- Burning Oil Smell: This is the most common symptom. Oil drips from the valve cover onto the hot exhaust manifold, where it burns off, creating a sharp, unpleasant smell that you might notice inside the cab.
- Visible Oil Leaks and Grime: You'll see wet, oily patches on the side of the engine, just below the plastic engine cover. Leaking oil attracts dirt and dust, creating a thick, greasy buildup on the valve covers and cylinder heads.
- Smoke from the Engine Bay: When enough oil hits the hot exhaust, you may see white or blue smoke coming from under the hood while the engine is running.
- Oil on Spark Plugs: When the spark plug tube seals fail (part of the gasket set), oil can leak into the spark plug wells. This can cause engine misfires, a rough idle, and trigger the Check Engine Light.
- Low Engine Oil Level: A persistent leak will cause your engine oil level to drop over time. You might find yourself needing to top off the oil between changes.
Fire Hazard Warning
A significant oil leak onto a hot exhaust manifold is a fire risk. While a small leak is less dangerous, it should be repaired as soon as possible to prevent a fire under the hood.
Choosing the Right Aftermarket Gasket Set
You don't need to buy an expensive OEM Mopar gasket to get a quality seal. Many aftermarket brands offer excellent or even superior quality, often for a better price. Here’s how they generally stack up for your Ram 1500:
- Premium Brands (Fel-Pro, Victor Reinz): These are the top choices for aftermarket gaskets. Fel-Pro is well-known for designing gaskets specifically for the repair environment, meaning they seal well even on surfaces that aren't perfectly new. Victor Reinz is another excellent, often OEM-equivalent brand that mechanics trust. You can't go wrong with either of these for a durable, long-lasting repair.
- Standard Brands (Mahle, Elring): Brands like Mahle often meet or exceed original equipment specifications and are a solid choice for this repair. They provide a reliable seal at a good price point.
- Economy Brands (Crown Automotive, other store brands): While the price is tempting, budget brands can be a gamble. Some user reviews for brands like Crown Automotive point to fitment issues on other parts, which is a major concern for a gasket. A poor-fitting gasket will leak immediately, forcing you to do the job all over again. It's often worth spending a little more for a better brand to ensure a proper seal.
Pro Tip: What Else Should I Do?
Since you'll have the engine covers off and coils out, this is the perfect time to replace your spark plugs, especially if they are due. If you find oil in the spark plug tubes, you'll need to clean it out thoroughly with a rag and brake cleaner before installing the new plugs. Also, inspect the PCV valve and its grommet, as these can also be sources of leaks and are easy to replace during this job.
🎬 See this DIY walkthrough for gaskets and spark plugsRam 1500 Valve Cover Gasket Replacement Cost
The cost to replace valve cover gaskets can vary depending on your engine and local labor rates. The job is more difficult on the 5.7L HEMI than on some other engines, which increases labor time.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $19 - $114 |
| New OEM (Mopar) Gasket Set | $100 - $180 |
| Shop Labor | $200 - $450 |
| Total Professional Repair | $219 - $630+ |
Frequently Asked Questions (FAQ)
Is this a known issue, recall, or TSB for the Ram 1500?
Leaking valve cover gaskets are a very common problem, especially on the HEMI engines, but there are no active recalls or Technical Service Bulletins (TSBs) for this specific issue. It is generally considered a normal wear-and-tear maintenance item.
Can I replace just one side?
Yes, but it's not recommended. If one gasket has failed due to age and heat, the other one is likely not far behind. Since the job requires some disassembly, it's most efficient to replace both gasket sets (left and right) at the same time to avoid having to do the job again in a few months.
Is this a difficult DIY job?
For the 5.7L HEMI, it's a moderately easy job that a confident DIYer can do in a few hours with basic tools. The main challenges are reaching some of the bolts and carefully disconnecting the wiring harness and connectors without breaking any brittle plastic clips. The passenger side is generally easier than the driver's side. Always make sure the sealing surfaces are perfectly clean before installing the new gasket.

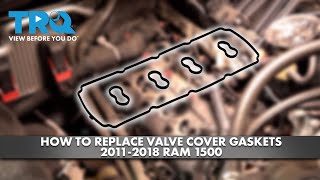

🎬 Watch: Step-by-step valve cover gasket replacement guideDo I need to use RTV sealant?
For this specific application on Ram engines, RTV sealant is generally not required if you are using a quality molded rubber gasket. The gasket itself is designed to create the seal. The most important step is to ensure the valve cover and cylinder head surfaces are completely clean and dry.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5114179AB
The gasket set typically includes the main valve cover gasket and spark plug tube seals. Most quality aftermarket gaskets are made from molded rubber (PermaDry) designed to resist heat and oil. The job requires basic hand tools like 8mm and 10mm sockets, a ratchet, and a torque wrench.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
