A Guide to Universal Joints for the 2011-2024 Ram 2500
That clunking sound or highway vibration could be a bad U-joint—here's how to choose the right replacement for your heavy-duty truck.
- Address U-joint symptoms like clunking or vibrations immediately to avoid a dangerous driveshaft failure.
- For OEM quality and durability, Dana Spicer is the most recommended brand by mechanics and owners.
- Choose a non-greasable (sealed) U-joint for a maintenance-free option; only choose greasable joints if you will service them with every oil change.
- On 2013-2018 models, check if you have a steel or aluminum driveshaft to ensure you buy the correct, corrosion-resistant U-joint.
Is Your Ram 2500 Making Strange Noises?
If you're hearing a new clunk, squeak, or feeling a vibration, a failing universal joint is a common problem on 2011-2024 Ram 2500 trucks. These parts are under constant stress transferring torque, and they eventually wear out. Ignoring the signs can lead to the driveshaft separating from the truck, which can cause a loss of power, major damage to other components, and leave you stranded.
Symptoms of a Bad U-Joint on a Ram 2500
- Squeaking or Chirping Noise: This is often the first warning sign. You'll hear a bird-like chirp at low speeds that matches your wheel rotation, caused by a dry, failing bearing inside the U-joint.
- Clunking or Banging Sound: A loud "clunk" when you shift from Park into Drive or Reverse is a classic symptom. This indicates there is excessive play in the joint.
- Vibration While Driving: A vibration that you can feel through the floor and seat is a serious sign. It often starts at a certain speed and gets worse as you accelerate, indicating the driveshaft is spinning out of balance.
- Grease Splatter: If you look under your truck and see a line of grease slung around the U-joint area, it means the seals have failed and the joint is losing its lubrication.
Important Note for 2013-2018 Cummins Models

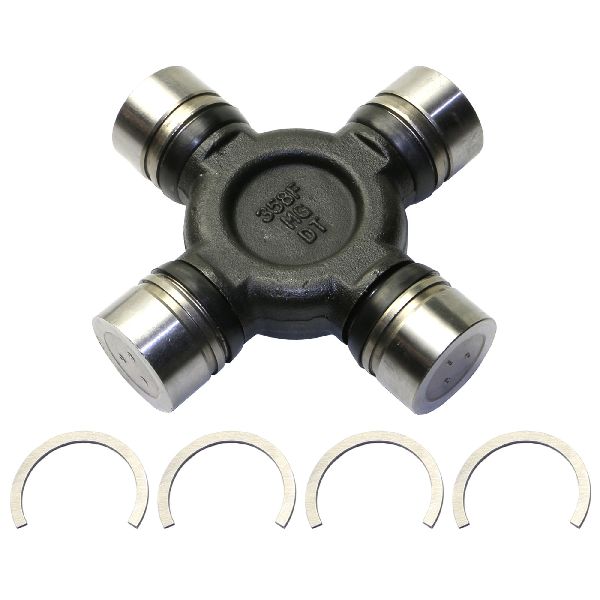

Some Ram 2500/3500 trucks with the 6.7L Cummins engine came with either a steel or an aluminum rear driveshaft, which use different U-joints. Using a standard U-joint on an aluminum driveshaft can cause galvanic corrosion, leading to premature failure of both the joint and the driveshaft. MOOG, for example, offers a specific part (358CT) with a special anti-corrosion coating for aluminum driveshafts. Always verify your driveshaft material before ordering.
Choosing the Right Aftermarket U-Joint
When replacing U-joints, you have a choice between sealed (non-greasable) and greasable designs. Factory joints are often non-greasable.
- Non-Greasable (Sealed): These are often considered stronger because the internal cross is solid steel, not hollowed out for grease channels. Premium sealed joints from brands like Dana Spicer are designed to be maintenance-free for their entire service life.
- Greasable: These have a zerk fitting that allows you to pump in fresh grease. This maintenance, if done regularly with every oil change, can flush out contaminants and extend the U-joint's life. However, if you don't keep up with greasing them, they will fail quickly.
Aftermarket Brand Tiers
Based on owner experiences and mechanic recommendations, aftermarket brands for the Ram 2500 can be grouped into the following tiers:
- Tier 1 (Premium / OEM-Equivalent): Dana Spicer is widely considered the original equipment manufacturer for Ram trucks and the best choice for reliability and strength. The Spicer Life Series is their top-tier, non-greasable option known for durability. Yukon Gear & Axle is another premium brand focused on heavy-duty performance.
- Tier 2 (Quality Aftermarket): Moog and SKF are well-known brands that offer quality replacements. Moog quality can be inconsistent according to some users, but they are known for problem-solving parts like their coated U-joints for aluminum driveshafts. The Spicer Select line is Dana's offering to compete in this price range.
- Tier 3 (Value): Brands like GMB and Dorman offer functional, budget-friendly replacements suitable for standard use.
Pro Tip: If you decide to install greasable U-joints, invest in a quality grease gun and a needle-point adapter. Some fittings, especially on the front driveshaft's double-cardan joint, can be very difficult to access.
Estimated Replacement Costs
The cost to replace a U-joint depends on labor rates in your area and which parts you choose. A single driveshaft can have two or three U-joints, and it's often recommended to replace them all at once.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $19.69 - $237.75 |
| Shop Labor | $150 - $300 |
| Total Estimated Cost (1-2 Joints) | $170 - $540 |
Note: Labor costs are an estimate and can vary. Replacing front axle shaft U-joints is a more involved job and will have higher labor costs.
Frequently Asked Questions
Can I replace just one bad U-joint?
Yes, but the labor to remove the driveshaft is the same regardless. If your truck has high mileage, it is smart and cost-effective to replace all the U-joints on that shaft at the same time. The others have experienced the same amount of wear and are likely near the end of their service life.
How many U-joints does my Ram 2500 have?
It depends on your truck's configuration. A 2WD truck with a one-piece driveshaft has two U-joints. A two-piece driveshaft adds a third joint and a center support bearing. 4WD models add a front driveshaft with two or three more joints (often in a double-cardan assembly) and two more U-joints in the front axle shafts at the wheels.
Is it hard to replace U-joints myself?
It is a moderately difficult job that requires proper tools. You will need heavy-duty jack stands, a good socket set, and either a bench vise or a hydraulic press to remove the old joints and install the new ones. Rust can make removing the old joints very challenging.
Do I need to get my driveshaft balanced after replacing the U-joints?
If you carefully mark the driveshaft's orientation before removal and reinstall it the same way, balancing is not usually required. However, if you still have a vibration after the repair, the driveshaft may be out of balance and should be taken to a specialty driveline shop.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68065428AD
U-joint sizes can vary based on the truck's configuration (2WD/4WD, driveshaft material, and driveshaft length). The front axle shafts on 4x4 models from 2011-2024 typically use an AAM 1555-series joint. It is always best to measure your existing U-joint's cap diameter and length or verify by VIN before ordering.
