Ram 4500 Engine Coolant Temperature Sensor Guide (2011-2024)
Understand the symptoms of a failing engine coolant temperature sensor and find the right replacement for your 6.7L Cummins engine.
- A failing ECT sensor on your Ram 4500 can cause overheating, poor fuel economy, and an erratic temperature gauge.
- Replacement is a simple DIY task for many owners, located on the passenger side of the 6.7L Cummins engine.
- For a critical work truck, using a high-quality OEM (Cummins 4954905) or premium aftermarket brand (Delphi, NGK, Standard) is recommended.
- Do not ignore symptoms, as continued driving can lead to severe engine damage from overheating.
Is Your Ram 4500's Temperature Gauge Acting Up?
A faulty Engine Coolant Temperature (ECT) sensor can cause a range of problems in your 2011-2024 Ram 4500. Since this sensor provides critical data to the 6.7L Cummins engine's computer, a bad signal can lead to poor performance and potential engine damage. Symptoms often start with a check engine light and can progress to more serious issues.
Symptoms of a Bad ECT Sensor
If your ECT sensor is failing, you might notice one or more of the following signs:
🎬 Watch this video to see common symptoms of a bad sensor.- Check Engine Light: This is often the first warning. The ECM detects an illogical signal from the sensor and stores a trouble code. Common codes include P0116 (Sensor Performance) and P0128 (Thermostat/Coolant Temp).
- Erratic Temperature Gauge: The gauge on your dashboard might swing wildly from cold to hot, or not move at all.
- Engine Overheating: If the sensor incorrectly tells the ECM the engine is cold, the cooling fans may not turn on when needed, leading to overheating.
- Poor Fuel Economy: A false "cold" signal can cause the ECM to enrich the fuel mixture, making your truck use more fuel than necessary.
- Black Smoke from Exhaust: A consistently rich fuel mixture may not burn completely, resulting in black smoke from the tailpipe.
- Cooling Fans Always On: As a fail-safe, the ECM might run the cooling fans constantly if it receives no signal from the ECT sensor.
A Note on 6.7L Cummins Cooling
The 6.7L Cummins engine is known to have less coolant flow to the rearmost cylinders, which can cause higher temperatures in that area. While a failing ECT sensor can cause overheating, this underlying engine characteristic is separate. If you frequently tow heavy loads, you might consider an aftermarket coolant bypass kit to improve circulation, but this won't fix a bad sensor.
Choosing the Right Aftermarket Sensor
For a critical part like the ECT sensor on a heavy-duty truck, quality matters. While OEM is always an option, several aftermarket brands offer reliable alternatives.
Tier 1: OEM Suppliers & Premium Brands
- Delphi: Often a supplier of original equipment parts to manufacturers. Choosing Delphi is usually as good as getting an OEM part.
- NGK/NTK: A top-tier brand known for sensors that meet or exceed OEM standards for reliability and accuracy.
- Standard Ignition (SMP): A well-respected aftermarket manufacturer that designs parts to be dependable and accurate replacements.
Tier 2: Reputable Aftermarket Brands
- Dorman: Offers a direct-fit replacement and often comes with a good warranty. Dorman parts are a reliable solution for a failed original component.
- Beck Arnley: Focuses on sourcing parts that match the original's form, fit, and function.
- Walker Products: A long-standing company specializing in fuel and engine management components.
Tier 3: Value-Oriented Brands
- Brands like Crown Automotive, Global Parts, and Motorad offer cost-effective solutions. These can be a good choice for budget-conscious repairs, but may not have the same long-term durability as premium brands.
Pro Tip: For the Ram 4500's hardworking 6.7L Cummins engine, sticking with an OEM (Mopar/Cummins) or a Tier 1 aftermarket brand like Delphi, NGK, or Standard is highly recommended for long-term reliability.
Cost to Replace a Ram 4500 ECT Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Cummins/Mopar) | $40 - $80 |
| New Aftermarket | $20 - $61 |
| Shop Labor | $100 - $175 |
| Total Professional Replacement | $120 - $255 |
Note: Costs are estimates and can vary based on your location and repair shop rates.
Frequently Asked Questions
Can I replace the ECT sensor myself?
Yes, this is a DIY-friendly job for most people. The sensor is located on the passenger side of the engine below a small heat shield. The process involves letting the engine cool, placing a drain pan underneath, unplugging the connector, and unscrewing the old sensor with a 19mm or 3/4" wrench. Some coolant will spill, so be prepared to top it off afterward.
🎬 Follow this step-by-step guide to replace your coolant temperature sensor.Where is the ECT sensor located on the 2011-2024 Ram 4500?
The engine coolant temperature sensor is on the passenger side of the 6.7L Cummins engine, mounted into the cylinder head. It is typically found just below the EGR crossover tube and may be under a small metal heat shield.

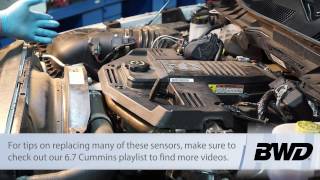

🎬 See a visual overview of sensors on the 6.7L Cummins engine.Are there any recalls for the Ram 4500 ECT sensor?
Currently, there are no specific NHTSA recalls for the engine coolant temperature sensor on the 2011-2024 Ram 4500. Searches show recalls for other components or different Ram models, but not this specific part and vehicle.
What happens if I don't replace a bad ECT sensor?
Ignoring a bad ECT sensor can lead to serious problems. Persistently poor fuel economy will cost you money, and a rich fuel mixture can damage emissions components over time. Most critically, if the engine overheats because the fans don't engage, you risk severe and expensive engine damage, such as a warped cylinder head.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4954905 3096153 3865346 4088750 4088751 5011852AA 5011852AB 5114413AA
Thread Size: M12 x 1.5, Connector: 2-pin.
