Engine Air Intake Hose Guide for the 2012-2016 BMW 528i (F10)
Address common lean codes and rough idle by learning to spot a failing air intake hose and choosing the right replacement part.
- A cracked intake hose is a very common failure on the 2012-2016 BMW 528i, causing a rough idle and a P0171 check engine light.
- The failure is caused by the plastic becoming brittle from constant exposure to heat from the nearby turbocharger.
- Replacement is an easy DIY job that takes less than 30 minutes with basic tools.
- High-quality aftermarket brands like CRP/Rein and Gates offer a reliable and cost-effective alternative to expensive OEM parts.
Why the Air Intake Hose Fails on the N20 Engine
The engine air intake hose on the 2012-2016 BMW 528i is made of plastic and is a common failure point. The turbocharged N20 engine generates significant heat, and the hose is located near the hot turbocharger. Over thousands of heat cycles, the plastic becomes brittle and fragile. Eventually, cracks form, especially in the ribbed, flexible sections or at connection points. This problem is so common that even routine maintenance like changing the air filter can be enough to stress the brittle plastic and cause a crack.
Symptoms of a Cracked Intake Hose
When the intake hose fails, it creates a vacuum leak. This allows unmetered air to enter the engine after the MAF sensor, leading to a "lean" condition (too much air, not enough fuel). The symptoms are often very noticeable.
- Check Engine Light: This is the most common sign. The ECU detects the lean air-fuel mixture and triggers a trouble code, most often P0171 (System Too Lean Bank 1).
- Rough or Unstable Idle: The engine may shake, idle unevenly, or even stall at stoplights as the ECU struggles to compensate for the extra air.
- Hissing or Whistling Noise: You may hear a distinct sucking or whistling sound from the engine bay, which is the sound of air being pulled through the crack. The noise may get louder when you accelerate.
- Poor Acceleration: The car may feel sluggish or hesitate when you press the gas pedal because the lean mixture reduces power output.
- Reduced Fuel Economy: Your engine will burn more fuel to try and correct the air-fuel imbalance, leading to more frequent trips to the gas station.
Known Issues: PCV Hose Connection
The air intake hose has a connection port for a smaller crankcase ventilation (PCV) hose. This connection point is a frequent source of leaks. Even after replacing the main intake hose, a poor seal with the PCV hose can cause the same lean codes and symptoms. When replacing the intake hose, it's a good idea to inspect or replace the connecting PCV breather hose (Part No. 11127588417) at the same time, as it is also prone to becoming brittle.
Choosing the Right Aftermarket Intake Hose
For a part that commonly fails, you have several good options that don't require paying dealership prices for a Genuine BMW part. Aftermarket parts often meet or exceed OEM standards for a fraction of the cost.
Brand Tiers for Your BMW 528i:

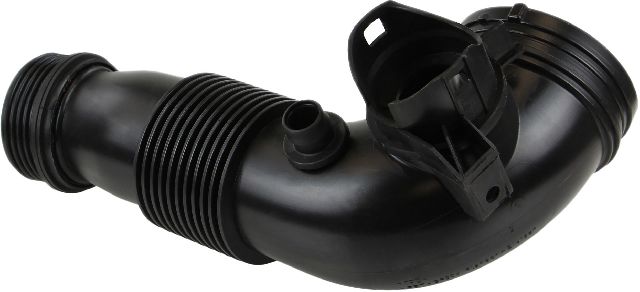

- Premium Aftermarket (CRP/Rein): CRP, which often sells under the brand name Rein, is a well-respected manufacturer that is also an Original Equipment (OE) supplier to BMW for other parts. Their products are known for high-quality materials and precise fitment that rivals the original part. This is a top choice for a durable, reliable repair.

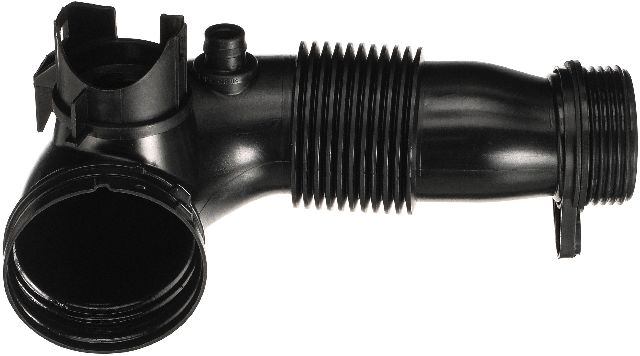

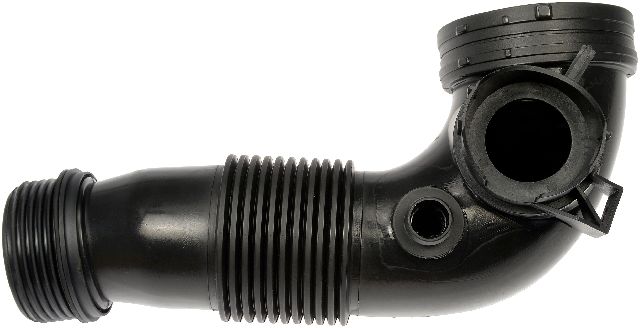

- Quality Aftermarket (Gates, Dorman): Gates is a leader in rubber and plastic components like belts and hoses, making them a trusted choice. Dorman is another major aftermarket manufacturer that sometimes redesigns parts to improve upon the original factory weaknesses. Both offer a solid balance of quality and value.
A Note on Fitment
Some owners have reported that non-genuine parts can sometimes have slight fitment issues, particularly at the PCV hose connection point. Using a high-quality aftermarket brand like CRP/Rein or Gates minimizes this risk. Always ensure the clamps are secure and all connections are snug after installation.
Cost of Replacing the Engine Air Intake Hose
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (CRP, Dorman, Gates) | $72.64 - $138.54 |
| New OEM (Genuine BMW) | $100 - $400+ |
| Shop Labor | $60 - $120 |
Frequently Asked Questions (FAQ)
Can I drive my BMW 528i with a cracked air intake hose?
You can, but it is not recommended for an extended period. Driving with a vacuum leak causes poor engine performance, rough idling, and increased fuel consumption. If left unfixed, it can lead to further complications like damage to the catalytic converter or internal engine components from running too lean.
Is replacing the air intake hose a difficult DIY job?
No, this is a very straightforward job for a DIYer. It typically requires only basic hand tools like a screwdriver or socket to loosen the hose clamps. The hose is easily accessible at the top of the engine bay. The entire process usually takes less than 30 minutes.
Will a new intake hose fix my P0171 lean code?
If a visual inspection confirms the hose is cracked, then replacing it is very likely to fix a P0171 code. This is one of the most common causes for that specific code on the N20 engine. After replacement, clear the code with a scanner. If it returns, you may have another vacuum leak (like the PCV hose) or a different issue.
What is the difference between the air intake hose and a charge pipe?
The air intake hose (or turbo inlet pipe) is located before the turbocharger, connecting the air filter box to the turbo. A charge pipe is located after the turbocharger, carrying compressed, pressurized air from the turbo to the intercooler or from the intercooler to the engine's throttle body. Both can fail and cause leaks, but a leaking intake hose causes a lean condition, while a leaking charge pipe causes a loss of boost pressure.
Technical Specifications
OEM Part Numbers: 13717605638 13717588268
This is the plastic air duct that connects the air filter housing (which contains the MAF sensor) to the turbocharger inlet. It includes a port for the PCV breather hose.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
