BMW 535i (2012-2016) Engine Oil Pressure Switch: A Complete Guide
Understanding the common failure points of the N55 engine's oil pressure switch and how to choose the right replacement.
- A red oil pressure warning requires you to stop the engine immediately; it could be this simple sensor or a major engine problem.
- The most common failure is oil leaking through the switch into the electrical connector, causing a short.
- This is a DIY-friendly repair that can be completed in under an hour with basic tools.
- If the switch is bad, you will likely be unable to use the electronic oil level check, making the repair urgent.
Is Your BMW 535i Displaying an Oil Pressure Warning?
A sudden red warning light on the dash of your 535i telling you to stop the engine is alarming. 🎬 Watch: How to quickly diagnose and fix a red oil light. While it can indicate a serious problem like a failed oil pump, it is often caused by a faulty engine oil pressure switch. This is a common issue on the N55 engine used in the 2012-2016 535i. The switch itself can fail, leading to false warnings and, in many cases, preventing you from checking the electronic oil level.
A Critical Known Issue: Internal Oil Leaks
The most common failure for the oil pressure switch on the N55 engine is not electronic, but mechanical. The switch develops an internal leak, allowing engine oil to seep through its body and into the electrical connector. This oil contamination shorts out the electrical pins, causing a variety of fault codes and incorrect readings. When you replace the switch, it is critical to inspect the wiring harness connector for oil residue and clean it thoroughly.
Symptoms of a Failing Oil Pressure Switch
- Red "Engine Oil Pressure" Warning: The most serious symptom is a red warning on the instrument cluster telling you to stop the vehicle carefully.
- Inability to Check Oil Level: A faulty switch can cause the electronic oil level measurement function to become unavailable or abort during its reading.
- Check Engine Light: The engine computer may log a fault and illuminate the check engine light.
- Multiple Fault Codes: A shorted sensor can trigger a cascade of codes, including P0520, 1C3002 (short circuit to ground), and others related to oil pressure plausibility.
Choosing the Right Aftermarket Part
For a critical sensor like this, part quality matters. While an OEM part from a BMW dealer is always a safe bet, quality aftermarket parts offer a reliable alternative at a good value.
- OEM (Original Equipment Manufacturer): The original part for your 535i is part number 12617592532. It is made by a supplier like Sensata and guarantees perfect fit and function.
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (SMP) are well-known in the industry for producing quality replacement parts that meet or exceed OEM specifications. They often perform extensive testing and are a trusted choice for mechanics.

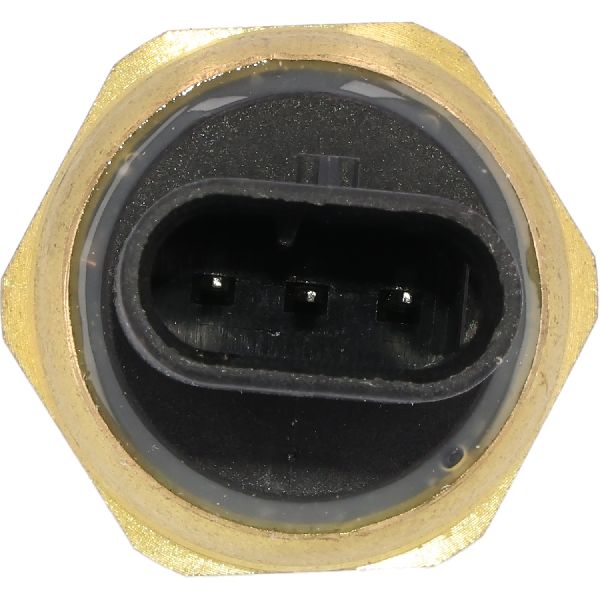

- Standard Aftermarket (e.g., Global Parts): This tier includes various brands that offer a cost-effective solution. While they are designed to fit and function correctly, their long-term durability may not have the same track record as premium or OEM brands. For a part this critical and inexpensive, opting for a premium aftermarket or OEM brand is often the recommended path.
Pro Tip: Given the common failure of oil leaking into the connector, it's wise to replace the small electrical connector housing at the same time as the switch, especially if it's oily or the locking tab is brittle.
Cost of Replacing the Oil Pressure Switch
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $65.01 - $65.86 |
| New OEM Part | $55 - $70 |
| Shop Labor | $149 - $251 |
| Total Professional Replacement | $209 - $317 |
Frequently Asked Questions (FAQ)
Can I drive my 535i with a bad oil pressure switch?
No. You cannot be sure if the warning is from a bad switch or actual low oil pressure, which can destroy your engine in minutes. If you see a red oil pressure warning, pull over safely and turn off the engine immediately.
How difficult is it to replace the oil pressure switch myself?
This is a DIY-friendly job for most home mechanics. It is easily accessible on the oil filter housing after removing the top engine cover. The replacement requires basic tools, primarily a 24mm deep socket or wrench. The entire job can typically be done in under an hour.
🎬 See this step-by-step walkthrough of the sensor replacement process.Where is the oil pressure switch located on my 2014 BMW 535i?
The location is the same for all 2012-2016 535i models with the N55 engine. It is screwed into the front-left side of the aluminum oil filter housing, near the oil cooler lines.
🎬 Watch: See the exact sensor location on various BMW engines.Are there any recalls for this part?
No, there are no specific recalls from BMW or NHTSA for the engine oil pressure switch on the 2012-2016 535i. There was a recall for the oil *pump* on different models, but not this switch.
What happens if I ignore a faulty oil pressure switch?
Ignoring the issue means you won't know your engine's true oil level or pressure. If the engine genuinely loses oil pressure and you don't get a warning because the switch is already faulty, you risk catastrophic engine failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12617592532
Location: Oil Filter Housing. Tool Required: 24mm wrench or deep socket.
