A Guide to the 2012-2016 BMW M5 (F10) Door Lock Actuator
Solve your M5's door locking problems and understand how to choose the right replacement part.
- You must verify if your M5 has Soft-Close Doors (S323A) before ordering a new actuator, as it requires a different part.
- A failing actuator can lead to a "double-locked" door that won't open, so it's best to replace it at the first sign of trouble.
- Replacement is a common DIY job that takes 1-2 hours, but requires care when removing the door panel and insulation.
- Some 2013-2014 models may have a voltage issue addressed by a BMW service bulletin (SIB 62 03 15).
Is Your M5 Door Lock Actuator Failing?
A bad door lock actuator on the F10 M5 is a common issue that typically stems from wear on the internal motor and plastic gears. Symptoms often start small but can quickly become a major problem. 🎬 Watch: See these common BMW door lock failure symptoms in action. Recognizing them early can save you from being locked out of your car.
Common Symptoms:
- Doors won't lock or unlock: One or more doors may not respond to the key fob or the central locking button.
- Grinding or buzzing noises: You may hear a distinct mechanical noise from inside the door when you try to lock or unlock it. This is often the sound of a skipping gear inside the failing actuator.
- Sluggish lock pin: The physical lock pin on the top of the door panel may move slowly, get stuck, or rapidly bounce up and down.
- Blown fuses: A failing actuator can draw too much current and repeatedly blow the fuse for the central locking system. M5 owners often report that fuse F14 in the front fuse box is the one that blows.
- Comfort Access failure: The touch-to-lock or grab-to-unlock feature on the door handle may stop working for the affected door.
Serious Failure Risk: The "Double-Lock" Problem
A severely failed actuator can engage the deadbolt feature and not release it. This "double-locks" the door, making it impossible to open from the inside or the outside. This is a significant safety hazard, especially for the driver's door. If your actuator is showing symptoms, it's best to replace it before it fails completely.
Choosing the Right Aftermarket Actuator
When replacing the actuator, you must get the correct part for your M5's specific features. Using your VIN to confirm the part number is essential. The main options that change the part are:
- Door Location: Front, Rear, Left, or Right.
- Soft-Close Automatic Doors (Option Code: S323A): This is a common option on the M5 and requires a different, more complex actuator. 🎬 See this DIY guide for replacing soft-close door lock actuators.
- Alarm System (Option Code: S302A): The presence of a factory alarm can also affect which part number is correct.
Aftermarket Brand Tiers
While an OEM actuator is available, the original parts can fail, making a quality aftermarket part a sensible choice. Aftermarket brands for your M5 generally fall into two categories:
- Premium Aftermarket (Vemo, Standard Ignition): These brands are known for better quality control and are often preferred for critical electronic parts. They are a good balance between OEM price and the risk of a budget part.
- Standard Aftermarket (URO Parts, Replacement): These are more budget-friendly options. While some owners use them without issue, the fit and longevity can be inconsistent. Given the labor involved in accessing the part, a premium brand is often recommended for peace of mind.
Known Issues & Service Bulletins
For some 2013 and early 2014 models, BMW issued Technical Service Bulletin SIB 62 03 15. This bulletin addresses a voltage regulation problem that can cause actuator issues. The fix involves installing a small, pre-wired capacitor into the actuator's wiring harness, which is a simple addition during a replacement job.
| Part / Service | Estimated Cost (USD) |
|---|---|
| New OEM Part | $420 - $550 |
| New Aftermarket Part | $133 - $446 |
| Shop Labor | $150 - $300 |
DIY Replacement Tips
Replacing the actuator is a manageable DIY project that takes 1-2 hours. You will need to remove the door panel, carefully peel back the foam sound insulation, and access the actuator mounted to the latch. 🎬 Watch this step-by-step walkthrough for replacing the F10 lock actuator. The actuator is typically held by three T30 Torx screws. Be careful not to damage the door panel clips or the insulation's butyl seal during removal.
Frequently Asked Questions
How can I tell which door lock actuator is bad?
The failing actuator is almost always in the door that is making noise or failing to lock/unlock. If a fuse is blowing, you can try to isolate the faulty actuator by listening closely to each door as you attempt to lock the car. The one that is silent or makes an unusual grinding noise is the culprit.
Can I really replace this myself?

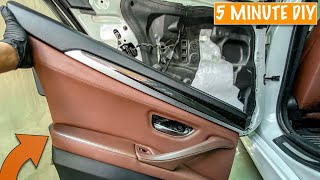

Yes, this is a common DIY repair for F10 owners. The main tools needed are a plastic trim removal set and Torx bits (T20 and T30). The most difficult part is often removing the door panel without breaking clips and carefully peeling back the sound insulation. Watch a few videos on F10 door panel removal to familiarize yourself with the process.
What happens if I order the wrong part?
If you order an actuator without the soft-close feature for a car that has it, the soft-close function will not work, and you may get error codes. The electrical connectors or mounting points may also be different. Always verify your M5's options with your VIN before ordering.
Is there a recall for this part on my M5?
There are no active recalls specifically for the door lock actuator on the 2012-2016 BMW M5 in the North American market.
Helpful Videos
Technical Specifications

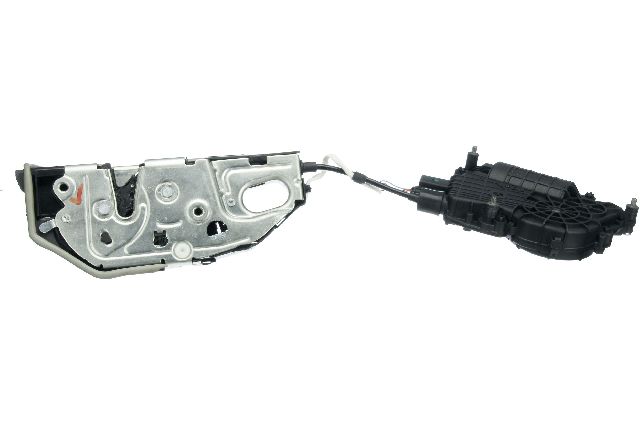

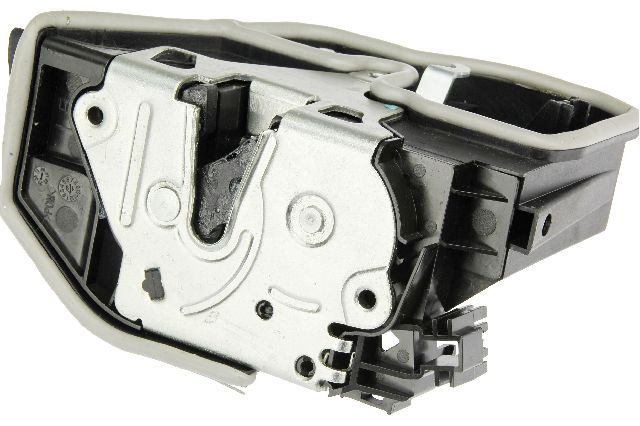

OEM Part Numbers: 51217202143 51217202146 51217185689 51217185692
Part numbers are specific to door location (front/rear, left/right) and vehicle options like Soft-Close Automatic Doors (S323A) and Alarm System (S302A). Verify with VIN before purchase.
