Chevrolet Express 2500 Engine Oil Pressure Switch Guide (2012-2016)
Dealing with a faulty oil pressure gauge or a P0521 code on your 2012-2016 Chevy Express 2500? Here’s what you need to know before replacing the sensor.
- A faulty oil pressure gauge is a common issue, often caused by a bad sensor or a clogged screen underneath it.
- Always replace the small filter screen located under the sensor when performing this repair.
- The sensor is extremely difficult to access, making professional installation a good choice for many owners.
- Choose a high-quality aftermarket brand like Standard Ignition or Walker Products to avoid premature failure and repeat labor costs.
Is Your Oil Pressure Gauge Acting Up?
If you own a 2012-2016 Chevrolet Express 2500 with a V8 engine, you might eventually face issues with the oil pressure reading. A common failure point is the engine oil pressure switch. Symptoms can range from an oil light that flashes to a gauge that reads zero or fluctuates wildly. This guide will help you understand the problem, choose the right aftermarket replacement part, and know what to expect during the repair.
Symptoms of a Failing Oil Pressure Switch
Before you condemn the sensor, always check your engine oil level first. Low oil is the most serious cause of low oil pressure. If the oil level is correct, a faulty sensor is a likely culprit. Common symptoms include:
- Check Engine Light: Often, the first sign is a check engine light with codes like P0521, P0522, or P0523. 🎬 Learn more about diagnosing and fixing the P0521 trouble code.
- Erratic Gauge Readings: The needle on your oil pressure gauge may jump around, read zero at idle and then seem normal when driving, or get stuck at the maximum reading.
- Low Oil Pressure Warning: The oil warning light or a "Check Gauges" message may appear on your dashboard, even if the oil level is fine.
A Note on the Oil Pressure Sensor Screen
On these GM V8 engines, there is a small filter screen located in the port underneath the oil pressure sensor. This screen is notorious for getting clogged with sludge, which can cause low or zero pressure readings at the sensor even if the engine's actual oil pressure is fine. It is highly recommended to replace this screen whenever you replace the sensor. 🎬 See how to fix low oil pressure by cleaning the screen. Some aftermarket kits include this filter.
Choosing the Right Aftermarket Part: Brand Quality
When it comes to sensors, quality matters. While OEM parts from ACDelco are a reliable choice, several aftermarket brands offer quality replacements. For this specific part on your Express van, sticking to well-regarded aftermarket brands is a smart move to avoid doing the job twice.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard manufactures its sensors in North America and performs 100% testing. They are a 🎬 Watch a closer look at how Standard oil pressure switches work. trusted choice for many professional technicians. However, some users have reported premature failures, so experiences can vary.
- Walker Products: Walker is another established brand that engineers its parts to meet or exceed OE specifications. They emphasize durable construction and accurate readings, making them a solid option.

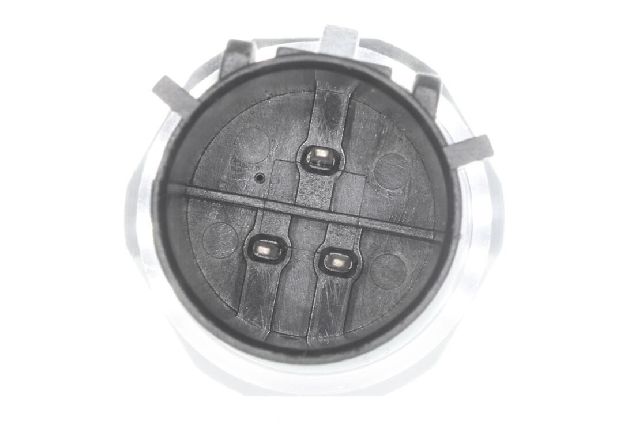

- Vemo: Vemo parts are also available, though user reviews and brand-specific information are less common in the North American market for this application.

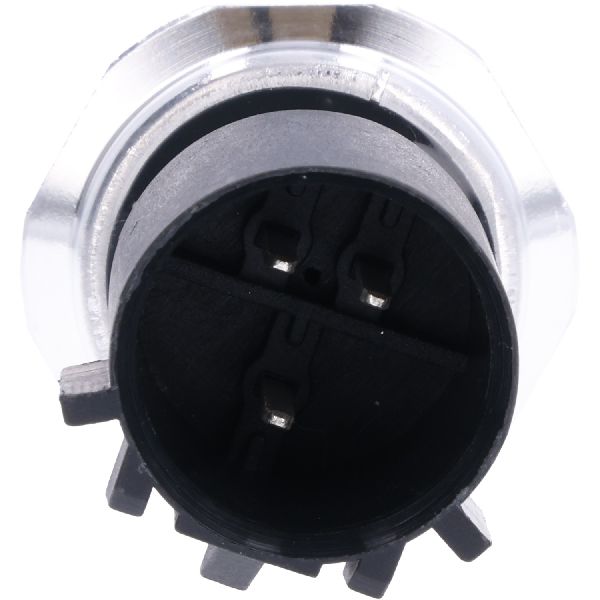

- Global Parts: This brand likely falls into the budget-friendly category. For a sensor that is difficult to access, investing in a higher-quality brand is often recommended to avoid repeat labor costs.
OEM vs. Aftermarket: For critical and hard-to-reach sensors like this one, many mechanics and experienced owners recommend using either the original ACDelco part or a top-tier aftermarket brand like Standard Ignition. Cheaper, unproven brands can fail prematurely, forcing you to pay for the difficult labor all over again.
Installation & Labor Costs
Replacing the oil pressure switch on the 4.8L and 6.0L V8 engines in the Express van is known for being a difficult job due to the sensor's location. It is positioned at the very back of the engine block, against the firewall, and underneath the cowl, making access extremely tight.
While some guides suggest removing the intake manifold, it is possible to perform the replacement without doing so, though it requires patience, special tools (like a specific oil pressure sensor socket and wobble extensions), and working in a very cramped space. Many owners find it's a job best left to a professional. Shop labor costs can range from $180 to $260, reflecting the difficulty of the job.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pressure Switch | $59.26 - $81.18 |
| Shop Labor | $180 - $260 |
| Total Professional Installation | $239 - $341 |
Frequently Asked Questions
Are there any recalls for this issue?
No, there are no specific recalls for the engine oil pressure switch on the 2012-2016 Chevrolet Express 2500. However, GM has issued Technical Service Bulletins (TSBs) for similar issues on other vehicles with the same family of engines, sometimes related to sticking oil pump relief valves causing similar codes.
Can I just replace the sensor and not the screen?
It is strongly advised to replace the small filter screen underneath the sensor at the same time. A clogged screen is a very common cause of the problem, and failing to replace it may mean the new sensor still shows low or no pressure, forcing you to do the job again.
Why is the labor cost so high for a small part?
The cost is almost entirely due to the sensor's location. It is at the back of the engine, tucked under the cowl and firewall, making it very difficult to reach. The job requires a significant amount of time and specialized tools to access and replace the part.
What tools are needed for a DIY replacement?
You will need a specific oil pressure sensor socket (1 1/16-inch or 27mm, designed for sensors), a ratchet with various extensions and a universal/wobble joint, and possibly a pick to remove the old screen. A topside creeper can also be very helpful to avoid straining your back while leaning over the engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12673134 12621234 12596951
The oil pressure switch for the 2012-2016 Express 2500 is a 3-pin sensor that sends a variable voltage signal to the ECM. It requires a special 1-1/16" (27mm) deep socket for removal and installation. Torque specification is approximately 22 ft-lbs.
