Ford F-450 Super Duty (2012-2016) Serpentine Belt Drive Component Kit Guide
Keep your 6.7L Power Stroke running reliably by knowing when to replace your serpentine belt, tensioner, and pulleys.
- You must verify if your truck has a single or dual alternator setup before ordering a kit, as the parts are different.
- For a reliable repair, always replace the complete serpentine belt kit, including the belt(s), tensioner(s), and idler pulleys.
- Listen for squealing or grinding noises and visually inspect the belts for cracks or fraying at every oil change.
- A broken serpentine belt will cause the engine to overheat and the power steering to fail, leaving you stranded.
Is Your Serpentine Belt System Failing?
A worn serpentine belt, tensioner, or pulley will give you clear warning signs. On a hard-working Super Duty, ignoring these symptoms can lead to a breakdown, engine overheating, and loss of power steering. Listen and look for these common signs of failure.
Key Symptoms of a Bad Serpentine Belt Kit
- Squealing or Chirping Noises: This is the most common symptom. You may hear a high-pitched squeal or a chirping sound coming from the front of the engine, especially on a cold start or when accelerating.
- Grinding or Rattling Sounds: A grinding or rattling noise often points to a failing bearing inside the tensioner or an idler pulley. This means the pulley itself is worn out, not just the belt.
- Visible Wear or Damage: Regularly inspect the belts. If you see cracks, frayed edges, missing chunks, or a smooth, glazed surface, it's time for a replacement.
- Accessory Problems: If your battery light comes on, the power steering feels heavy, or the engine temperature gauge starts to climb, the belt could be slipping or may have already broken.
Choosing the Right Aftermarket Kit
When it's time for a replacement, you don't have to go back to the dealer. High-quality aftermarket kits from brands like Gates offer a reliable and cost-effective solution. These kits are designed to meet or exceed the original factory standards.
Important: Single vs. Dual Alternators
The 2012-2016 F-450 with the 6.7L Power Stroke was available with either a single or dual alternator setup. These two systems use different belts. Before ordering a kit, you must confirm which setup your truck has to get the correct parts.

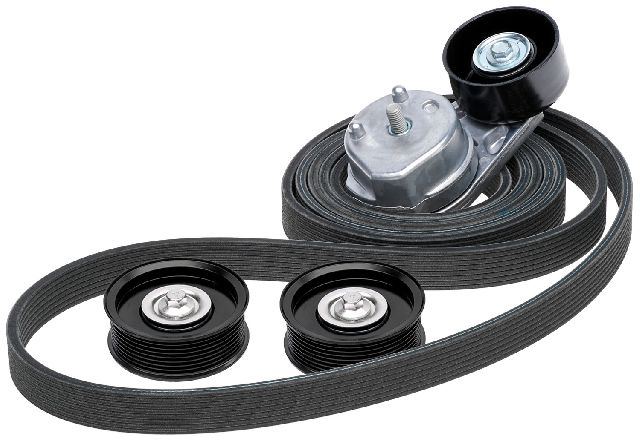

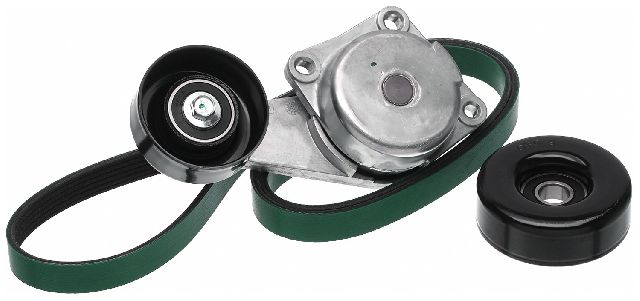

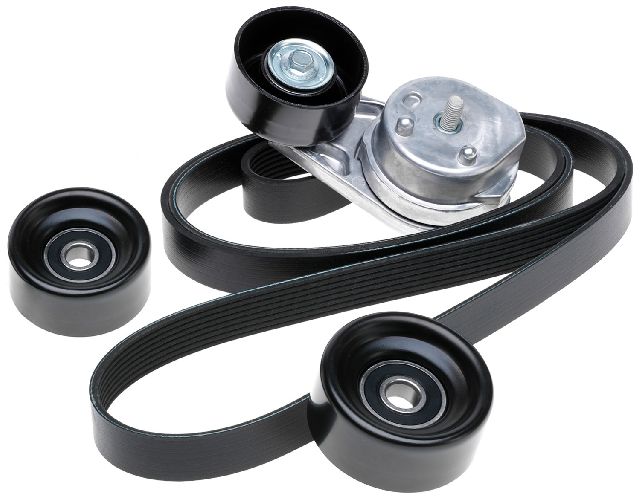

The main advantage of buying a complete kit is that you get all the related wear items in one box: the belt(s), the spring-loaded tensioner(s), and the idler pulleys. The tensioner and pulleys wear out at about the same rate as the belt. Installing just a new belt on old, worn pulleys can cause the new belt to fail in a fraction of its expected lifespan. For a complete and lasting repair, replacing everything at once is the smart move.
Pro Tip: Ensure Correct Belt Routing
Ford issued a technical note (SSM 4129) for 6.7L engines regarding incorrect belt routing after service. Improper routing can cause the belts to rub against each other, leading to rapid wear and noise. Always use a belt routing diagram for your specific year and alternator configuration to ensure it's installed correctly.
Cost of Replacing a Serpentine Belt Drive Kit
| Part Type | Estimated Cost Range |
|---|---|
| New Aftermarket Kit (Gates) | $123.16 - $336.38 |
| New OEM Kit (Motorcraft) | $400 - $650 |
| Shop Labor | $180 - $350 |
Cost estimates are based on market research and may vary by location and supplier. Labor costs are based on an estimated 1.5-2.5 hour job.
Frequently Asked Questions (FAQ)
Why should I replace the whole kit instead of just the belt?
The tensioner and idler pulleys have bearings that wear out. A weak tensioner won't keep proper pressure on the new belt, and a seized pulley will shred it quickly. Replacing all components at once ensures all parts are fresh and work together correctly, preventing a premature failure and saving you from doing the job twice.
How do I know if I have a single or dual alternator?
Look at the front of your engine. With a dual alternator setup, you will see two alternator pulleys, one typically located higher up on the passenger side and another lower down. If you only see one, you have a single alternator system. Always verify this before purchasing parts.
How often should the serpentine belt kit be replaced?
A good rule of thumb is to inspect the belts at every oil change and plan for a full kit replacement between 60,000 and 90,000 miles. However, if your truck is used for heavy towing or operates in harsh conditions, you may need to replace it sooner. Replace it immediately if you see any signs of cracking, fraying, or hear any related noises.
Is this a difficult job to do myself?
For an experienced DIY mechanic, this is a manageable job. However, access to the belts on the 6.7L Power Stroke is tight. You will need a specific serpentine belt tensioner tool and a set of metric sockets and wrenches. Removing the air intake tube can create more working space. If you are not comfortable working in tight spaces, it may be best to leave this job to a professional.
Technical Specifications
The 2012-2016 Ford F-450 with the 6.7L Power Stroke V8 diesel engine uses a dual-belt system for the front-end accessories. Kits and individual components vary based on whether the vehicle is equipped with a single or dual alternator. Gates is a primary aftermarket manufacturer offering complete component kits.
